Správa textových odstavců PowerPoint v C++

Přehled

Aspose.Slides for C++ představuje text jako hierarchii textových rámců, odstavců a částí:

  • ITextFrame reprezentuje textový kontejner ve tvaru a poskytuje přístup k jeho kolekci odstavců.
  • IParagraph reprezentuje jeden odstavec v textovém rámci a poskytuje přístup k jeho částem a formátování na úrovni odstavce.
  • IPortion reprezentuje úsek textu uvnitř odstavce. Každá část může mít vlastní text a formátování na úrovni znaků.

Proto může odstavec obsahovat text s různými písmy, barvami, velikostmi a dalšími formátováními pomocí více částí.

Vytváření a formátování odstavců

Vytvářejte odstavce v textovém rámci tvaru a použijte části k formátování jednotlivých úseků textu. Tento odstavec ukazuje, jak zkombinovat více částí v každém odstavci a použít různé barvy, velikosti písma a styly.

Vytvoření odstavců s více částmi

Následující příklad v C++ vytváří tři odstavce, z nichž každý obsahuje tři úseky textu ve své kolekci IParagraph::get_Portions. Používá výchozí odstavec a jeho prázdnou část, poté přidá zbývající odstavce a části. Formátování se aplikuje pomocí IPortion::get_PortionFormat: první část v každém odstavci je červená, tučná a má 15 bodů; druhá je modrá, kurzíva a má 18 bodů. Třetí část si zachovává výchozí formátování:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/string.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 150, 300, 150);
auto textFrame = shape->get_TextFrame();

auto firstParagraph = textFrame->get_Paragraph(0);
firstParagraph->get_Portions()->Add(MakeObject<Portion>());
firstParagraph->get_Portions()->Add(MakeObject<Portion>());

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
textFrame->get_Paragraphs()->Add(secondParagraph);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
textFrame->get_Paragraphs()->Add(thirdParagraph);

auto paragraphCount = textFrame->get_Paragraphs()->get_Count();
for (auto paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++)
{
    auto paragraph = textFrame->get_Paragraph(paragraphIndex);
    auto portionCount = paragraph->get_Portions()->get_Count();
    for (auto portionIndex = 0; portionIndex < portionCount; portionIndex++)
    {
        auto portion = paragraph->get_Portion(portionIndex);
        portion->set_Text(String::Format(u"Portion {0}.{1}", paragraphIndex + 1, portionIndex + 1));
        auto portionFormat = portion->get_PortionFormat();

        if (portionIndex == 0)
        {
            portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
            portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Red());
            portionFormat->set_FontBold(NullableBool::True);
            portionFormat->set_FontHeight(15);
        }
        else if (portionIndex == 1)
        {
            portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
            portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());
            portionFormat->set_FontItalic(NullableBool::True);
            portionFormat->set_FontHeight(18);
        }
    }
}

presentation->Save(u"paragraphs_with_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

Vytváření odrážek a číslovaných seznamů

Organizujte text odstavců do seznamů se symboly, čísly nebo vlastními obrázky. Příklady v tomto oddíle zahrnují formátování odrážek, víceúrovňové seznamy a vlastní počáteční čísla.

Vytvoření odrážkového nebo číslovaného seznamu

Odrážky a číslování usnadňují prohlížení souvisejících položek. V Aspose.Slides jsou nastavení seznamu definována pomocí IBulletFormat.

Tento příklad v C++ přidává symbol odrážky a číslovanou položku do stejného textového rámce. IBulletFormat::set_Type vybírá typ odrážky, zatímco IBulletFormat::set_Char určuje symbol a IBulletFormat::set_NumberedBulletStyle vybírá styl číslování. Obě položky používají černé odrážky s výškou 100 procent a odsazením odstavce 25 bodů:

#include <DOM/BulletType.h>
#include <DOM/ColorType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/NumberedBulletStyle.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/convert.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto symbolParagraph = MakeObject<Paragraph>();
symbolParagraph->set_Text(u"Welcome to Aspose.Slides");
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
symbolParagraph->get_ParagraphFormat()->set_Indent(25);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_ColorType(ColorType::RGB);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_Color(Color::get_Black());
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_IsBulletHardColor(NullableBool::True);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(symbolParagraph);

auto numberedParagraph = MakeObject<Paragraph>();
numberedParagraph->set_Text(u"This is a numbered item");
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStyle(NumberedBulletStyle::BulletCircleNumWDBlackPlain);
numberedParagraph->get_ParagraphFormat()->set_Indent(25);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_ColorType(ColorType::RGB);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_Color(Color::get_Black());
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_IsBulletHardColor(NullableBool::True);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(numberedParagraph);

presentation->Save(u"bulleted_and_numbered_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Použití obrázkových odrážek

Obrázkové odrážky vám umožňují použít vlastní obrázek místo symbolu nebo čísla.

Příklad vyžaduje soubor bullets.png v pracovním adresáři. Tento příklad v C++ přidává obrázek do kolekce obrázků prezentace jako IPPImage a používá jej jako odrážku odstavce. Nastavuje IBulletFormat::set_Type na obrázkovou odrážku a přiřazuje obrázek pomocí IBulletFormat::get_Picture. IBulletFormat::set_Height je nastaveno na 100 procent, aby velikost odrážky byla poměrná k textu odstavce:

#include <DOM/BulletType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IImageCollection.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <Util/Images.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto bulletImage = Images::FromFile(u"bullets.png");
auto presentationImage = presentation->get_Images()->AddImage(bulletImage);
bulletImage->Dispose();

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto paragraph = MakeObject<Paragraph>();
paragraph->set_Text(u"Welcome to Aspose.Slides");
paragraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Picture);
paragraph->get_ParagraphFormat()->get_Bullet()->get_Picture()->set_Image(presentationImage);
paragraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(paragraph);

presentation->Save(u"picture_bullet.pptx", SaveFormat::Pptx);
presentation->Save(u"picture_bullet.ppt", SaveFormat::Ppt);
presentation->Dispose();

Vytvoření vícestupňového seznamu

Nastavte IParagraphFormat::set_Depth pro umístění odstavců na různé úrovně seznamu. Nejvyšší úroveň má hloubku 0.

Tento příklad v C++ přiřazuje hodnoty IParagraphFormat::set_Depth od 0 do 3 čtyřem odstavcům a vytváří hierarchii v jednom textovém rámci. Každý odstavec používá symbol odrážky, přičemž IBulletFormat::set_Char střídavě používá kulatou odrážku a pomlčku k odlišení sousedních úrovní:

#include <DOM/BulletType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/convert.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"Content");
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_Depth(0);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Second level");
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(u'-');
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_Depth(1);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"Third level");
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
thirdParagraph->get_ParagraphFormat()->set_Depth(2);

auto fourthParagraph = MakeObject<Paragraph>();
fourthParagraph->set_Text(u"Fourth level");
fourthParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
fourthParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(u'-');
fourthParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
fourthParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
fourthParagraph->get_ParagraphFormat()->set_Depth(3);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);
textFrame->get_Paragraphs()->Add(thirdParagraph);
textFrame->get_Paragraphs()->Add(fourthParagraph);

presentation->Save(u"multilevel_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Spuštění číslovaných položek seznamu s vlastními hodnotami

Použijte IBulletFormat::set_NumberedBulletStartWith pro nastavení počátečního čísla zobrazeného pro číslovaný odstavec.

Tento příklad v C++ nastavuje IBulletFormat::set_Type na číslování pro tři odstavce a přiřazuje hodnoty IBulletFormat::set_NumberedBulletStartWith 2, 3 a 7. Počáteční hodnota je nakonfigurována samostatně pro každý odstavec, což umožňuje přeskočit čísla:

#include <DOM/BulletType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"Start at 2");
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(2);
textFrame->get_Paragraphs()->Add(firstParagraph);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Start at 3");
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(3);
textFrame->get_Paragraphs()->Add(secondParagraph);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"Start at 7");
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(7);
textFrame->get_Paragraphs()->Add(thirdParagraph);

presentation->Save(u"custom_numbered_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Řízení rozložení odstavce a koncových vlastností

Upravte okraje a odsazení odstavců pro kontrolu polohy první řádky a zalomených řádků. Můžete také formátovat koncový znak odstavce nezávisle na viditelných částech textu.

Nastavení odsazení první řádky

Použijte metodu IParagraphFormat::set_Indent pro kontrolu odsazení první řádky odstavce. Tato metoda posouvá pouze první řádek vzhledem k levému okraji odstavce. Kladná hodnota posune první řádek doprava, zatímco zbývající řádky zůstanou zarovnány k tělu odstavce.

Použijte IParagraphFormat::set_MarginLeft když potřebujete posunout celý odstavec. Použijte IParagraphFormat::set_Indent když potřebujete posunout pouze první řádek.

Následující příklad dává třem odstavcům stejný IParagraphFormat::set_MarginLeft 20 bodů a hodnoty IParagraphFormat::set_Indent 0, 20 a 40 bodů. První řádky začínají postupně většími offsety, zatímco zalomené řádky zachovávají stejný levý okraj:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 420, 220);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Gray());

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::Shape);
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"No first-line indent. Wrapped lines start at the same position as the first line.");
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_MarginLeft(20);
firstParagraph->get_ParagraphFormat()->set_Indent(0);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"First-line indent of 20 points. The first line moves to the right, while wrapped lines remain aligned to the paragraph body.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_MarginLeft(20);
secondParagraph->get_ParagraphFormat()->set_Indent(20);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"First-line indent of 40 points. This paragraph shows a larger first-line offset to make the effect easier to see.");
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
thirdParagraph->get_ParagraphFormat()->set_MarginLeft(20);
thirdParagraph->get_ParagraphFormat()->set_Indent(40);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);
textFrame->get_Paragraphs()->Add(thirdParagraph);

presentation->Save(u"paragraph_indent.pptx", SaveFormat::Pptx);
presentation->Dispose();

Výsledek:

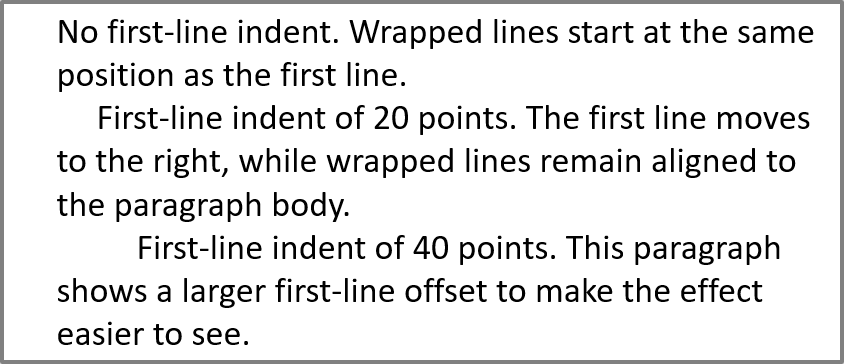

Odsazení první řádky odstavců

Nastavení visícího odsazení

Visící odsazení je rozložení odstavce, ve kterém první řádek začíná vlevo od zbytku řádků. V Aspose.Slides tento efekt vytvoříte pomocí metody IParagraphFormat::set_Indent. Zadejte zápornou hodnotu, aby se první řádek posunul vlevo vzhledem k tělu odstavce.

V praxi IParagraphFormat::set_MarginLeft určuje levou pozici těla odstavce a IParagraphFormat::set_Indent stanoví pozici první řádky vzhledem k tomuto okraji. Pro vytvoření visícího odsazení nastavte kladnou hodnotu MarginLeft a zápornou hodnotu Indent.

Toto formátování je užitečné pro bibliografie, odkazy, položky glosáře a další odstavce, kde musí být zalomené řádky zarovnány pod tělo odstavce, nikoli pod první znak první řádky.

Následující příklad v C++ spojuje hodnoty IParagraphFormat::set_MarginLeft 40 a 60 bodů s hodnotami IParagraphFormat::set_Indent –20 a –30 bodů. V každém odstavci první řádek začíná vlevo od zalomených řádků; druhý odstavec má hlubší visící odsazení:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 420, 220);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Gray());

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::Shape);
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"A hanging indent is created by combining a positive left margin with a negative indent. The first line starts to the left, while wrapped lines align with the paragraph body.");
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_MarginLeft(40);
firstParagraph->get_ParagraphFormat()->set_Indent(-20);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"This second example uses a deeper hanging indent so the difference between the first line and the wrapped lines is easier to compare.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_MarginLeft(60);
secondParagraph->get_ParagraphFormat()->set_Indent(-30);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);

presentation->Save(u"hanging_indent.pptx", SaveFormat::Pptx);
presentation->Dispose();

Výsledek:

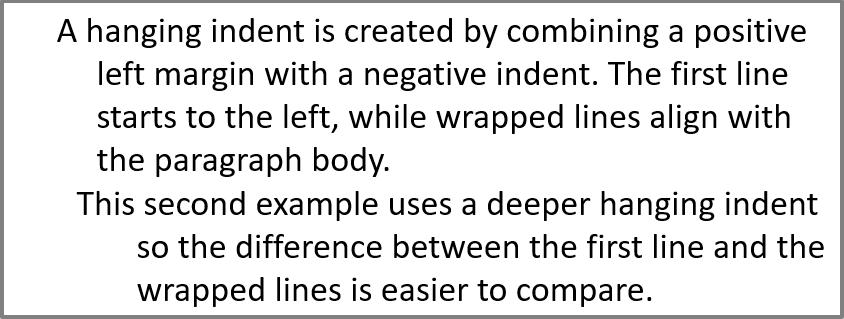

Visící odsazení odstavců

Nastavení koncových vlastností odstavce

Metoda IParagraph::set_EndParagraphPortionFormat řídí formátování koncového znaku odstavce. Příklad načítá Test.pptx, který musí obsahovat alespoň jeden snímek. Následující příklad vytváří PortionFormat s IBasePortionFormat::set_FontHeight nastaveným na 48 bodů a IBasePortionFormat::set_LatinFont nastaveným na Times New Roman. Tento formát přiřadí koncovému znaku druhého odstavce, aniž by změnil viditelné části textu:

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/PortionFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>(u"Test.pptx");
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 10, 10, 200, 250);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->get_Portions()->Add(MakeObject<Portion>(u"Sample text"));

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->get_Portions()->Add(MakeObject<Portion>(u"Sample text 2"));

auto endParagraphFormat = MakeObject<PortionFormat>();
endParagraphFormat->set_FontHeight(48);
endParagraphFormat->set_LatinFont(MakeObject<FontData>(u"Times New Roman"));
secondParagraph->set_EndParagraphPortionFormat(endParagraphFormat);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);

presentation->Save(u"end_paragraph_format.pptx", SaveFormat::Pptx);
presentation->Dispose();

Počítání vykreslených řádků

Pro pravidla odstavců, která ovlivňují automatické zalamování a interpunkci na konci řádků, viz Řízení zalamování řádků a Řízení visící interpunkce.

Použijte IParagraph::GetLinesCount k spočítání řádků obsazených odstavcem po rozvržení textu, včetně automatického zalamování. To je užitečné při kontrole délky textu a rozvržení v šablonách prezentací.

Odstavec je jednou položkou v ITextFrame::get_Paragraphs, a může zabírat několik vykreslených řádků. Explicitní zalomení řádku uvnitř odstavce vynutí nový řádek, aniž by vytvořilo další odstavec. Automatické zalamování vytváří řádky na základě dostupné šířky bez vkládání explicitních zalomení do textu. Počítání odstavců nebo znaků pro zalomení řádku tedy nedává počet vykreslených řádků.

Následující příklad vytváří textový tvar, počítá jeho řádky, zužuje tvar a pak nahrazuje text kratším řetězcem. Příklad povoluje ITextFrameFormat::set_WrapText a zakazuje ITextFrameFormat::set_AutofitType, takže šířka tvaru řídí zalamování bez automatického zmenšování textu či změny velikosti tvaru. Každé měření používá IParagraph::GetLinesCount. Rozměry tvaru jsou v bodech. Nakonec příklad přidá další odstavec a sečte počty řádků napříč textovým rámcem.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <system/console.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::True);
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);

auto paragraph = textFrame->get_Paragraph(0);
paragraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(20);
paragraph->set_Text(u"This text demonstrates how automatic wrapping changes the number of rendered lines.");
Console::WriteLine(u"Original width: {0}", paragraph->GetLinesCount());

shape->set_Width(150);
Console::WriteLine(u"Narrower shape: {0}", paragraph->GetLinesCount());

paragraph->set_Text(u"Short text.");
Console::WriteLine(u"Shorter text: {0}", paragraph->GetLinesCount());

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Another paragraph.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(20);
textFrame->get_Paragraphs()->Add(secondParagraph);

auto totalLineCount = 0;
for (auto currentParagraph : textFrame->get_Paragraphs())
{
    totalLineCount += currentParagraph->GetLinesCount();
}
Console::WriteLine(u"Total lines in the text frame: {0}", totalLineCount);
presentation->Dispose();

S tímto textem a těmito rozměry se při zužování tvaru zvyšuje počet řádků, zatímco nahrazení textu krátkým řetězcem jej snižuje. Přesné počty se mohou lišit podle dostupnosti a náhrady písma, velikosti písma, okrajů, odsazení, zalamování a nastavení automatického přizpůsobení. Používejte písma a nastavení rozvržení určená pro cílové prostředí při kontrole šablony.

Počet řádků sám o sobě neurčuje, zda text přesahuje svůj kontejner. Důležité jsou také dostupná výška, výšky řádků, mezery mezi odstavci a řádky a chování automatického přizpůsobení; i jediný řádek může překročit dostupnou šířku, pokud je zalamování zakázáno.

Import a export obsahu odstavců

Použijte HTML k vložení textu do prezentace nebo k exportu existujících odstavců pro použití mimo ni. Tento oddíl také ukazuje, jak vykreslit jednotlivé odstavce jako obrázky, včetně odstavců v buňkách tabulky.

Import HTML textu do odstavců

Použijte ParagraphCollection::AddFromHtml pro převod HTML značek na odstavce a části v textovém rámci.

Tento příklad v C++ načte HTML ze souboru a předá značky metodě ParagraphCollection::AddFromHtml. Vyčistí výchozí odstavec textového rámce, aby rámec obsahoval jen importovaný obsah. Obdélníkový tvar zanechává na každé straně snímku okraj 10 bodů:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/ISlideSize.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <system/io/stream_reader.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::IO;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto slideSize = presentation->get_SlideSize()->get_Size();
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 10, 10, slideSize.get_Width() - 20, slideSize.get_Height() - 20);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_TextFrame()->get_Paragraphs()->Clear();

auto reader = MakeObject<StreamReader>(u"file.html");
auto html = reader->ReadToEnd();
reader->Close();
shape->get_TextFrame()->get_Paragraphs()->AddFromHtml(html);

presentation->Save(u"html_text.pptx", SaveFormat::Pptx);
presentation->Dispose();

Export textu odstavců do HTML

Použijte ParagraphCollection::ExportToHtml pro export vybraného rozsahu odstavců jako HTML. Při opětovném použití textu prezentace na webu možná chcete zachovat lokální důraz, aniž byste přenesli písmo, velikost nebo styly textového pole prezentace. Nastavte TextToHtmlConversionOptions::set_TextInheritanceLimit pro řízení, jak daleko exportér následuje dědičnost formátování.

Stáhněte si vzorovou prezentaci a umístěte ji do pracovního adresáře aplikace. Její první snímek obsahuje jeden textový tvar s textem „Inherited text; explicit red 18pt“. Vstup úmyslně používá několik úrovní formátování:

  • Výchozí styl textu prezentace poskytuje písmo Calibri a velikost 28 pt.
  • Styl textu první úrovně textového rámce poskytuje modrý text a kurzívu.
  • Odstavec explicitně nastavuje tučný text.
  • Druhá část, „explicit red 18pt“, explicitně nastavuje červený text a velikost 18 pt.

Následující příklad exportuje stejné odstavce třikrát. Předává TextToHtmlConversionOptions metodě exportu a zapisuje každý výsledek jako samostatný soubor UTF‑8 HTML:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Presentation.h>
#include <Export/TextInheritanceLimit.h>
#include <Export/TextToHtmlConversionOptions.h>
#include <system/array.h>
#include <system/console.h>
#include <system/io/file.h>
#include <system/object_ext.h>
#include <system/text/encoding.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::IO;
using namespace System::Text;

auto presentation = MakeObject<Presentation>(u"text-inheritance.pptx");
auto shape = presentation->get_Slide(0)->get_Shape(0);
auto textShape = AsCast<IAutoShape>(shape);

if (textShape != nullptr && textShape->get_TextFrame() != nullptr)
{
    auto paragraphs = textShape->get_TextFrame()->get_Paragraphs();
    auto modes = MakeArray<TextInheritanceLimit>({TextInheritanceLimit::All, TextInheritanceLimit::TextBox, TextInheritanceLimit::ParagraphOnly});
    auto fileNames = MakeArray<String>({u"All.html", u"TextBox.html", u"ParagraphOnly.html"});

    for (auto i = 0; i < modes->get_Length(); i++)
    {
        auto options = MakeObject<TextToHtmlConversionOptions>();
        options->set_TextInheritanceLimit(modes[i]);

        auto html = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);
        File::WriteAllText(fileNames[i], html, Encoding::get_UTF8());
    }
}
else
{
    Console::WriteLine(u"The first shape is not a text shape.");
}

presentation->Dispose();

Vygenerované HTML obsahuje následující CSS pro první část, „Inherited text; “. Tabulka uvádí relevantní deklarace; ostatní vygenerované vlastnosti jsou vynechány pro přehlednost.

Výstup Relevantní CSS pro první část Vzhled
All.html font-family:'Calibri'; font-size:28pt; color:#0000ff; font-style:italic; font-weight:bold Modrý, tučný, kurzíva text ve velikosti 28 pt v Calibri, pokud je toto písmo dostupné.
TextBox.html color:#0000ff; font-style:italic; font-weight:bold Modrý, tučný, kurzíva text; okolní stránka nebo prohlížeč poskytuje rodinu písma a velikost.
ParagraphOnly.html font-weight:bold Tučný text; okolní stránka nebo prohlížeč poskytuje rodinu písma, velikost, barvu a kurzívu.

Druhá část si zachovává color:#ff0000, font-size:18pt a font-weight:bold ve všech třech výstupech. Také si zachovává kurzívu u All a TextBox, ale ne u ParagraphOnly. Omezení dědičnosti tedy neodstraňuje formátování, které bylo explicitně přiřazeno odstavci nebo části.

Otevřete soubory ve stejném prohlížeči pro jejich porovnání. Ve dvou omezených režimech jsou vynechané CSS vlastnosti řešeny styly cílové stránky nebo výchozími hodnotami prohlížeče, takže výsledný vzhled závisí na tom, kde je HTML použito.

Generování úseku HTML pro schránku

Nastavte TextToHtmlConversionOptions::set_AddClipboardFragmentHeader na false pro běžné HTML nebo na true pro zahrnutí záhlaví schránky. Záhlaví poskytuje offsety bajtů UTF‑8 okolního HTML (StartHTML a EndHTML) a úseku, který se má vložit (StartFragment a EndFragment).

Tento příklad exportuje dva formátované odstavce jako běžné HTML (html) a jako úsek HTML pro schránku (clipboardHtml). Zápis úseku do systémové schránky je samostatný krok aplikace. API schránky, které přijímá surové bajty HTML schránky, vyžaduje UTF‑8 bez BOM.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/TextToHtmlConversionOptions.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 0, 0, 400, 100);
auto paragraphs = shape->get_TextFrame()->get_Paragraphs();
paragraphs->Clear();
paragraphs->AddFromHtml(u"<p>Status: <b>Ready</b></p><p><i>Next steps</i></p>");

auto options = MakeObject<TextToHtmlConversionOptions>();
options->set_AddClipboardFragmentHeader(false);
auto html = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);

options->set_AddClipboardFragmentHeader(true);
auto clipboardHtml = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);
presentation->Dispose();

Vykreslení odstavce jako obrázku

IParagraph::GetImage vykresluje jednotlivý odstavec přímo a vrací IImage. Výsledek uložte do souboru nebo streamu pomocí IImage::Save. Nemusíte vykreslovat obsahující tvar ani ručně ořezávat bitmapu.

IParagraph::GetImage může vrátit nullptr, pokud odstavec nelze v nadřazené kolekci najít, nemá platné oblasti pro vykreslení nebo jej nelze vykreslit. Zkontrolujte výsledek před uložením a po použití uvolněte vrácený obrázek.

Vykreslení odstavce v výchozím měřítku

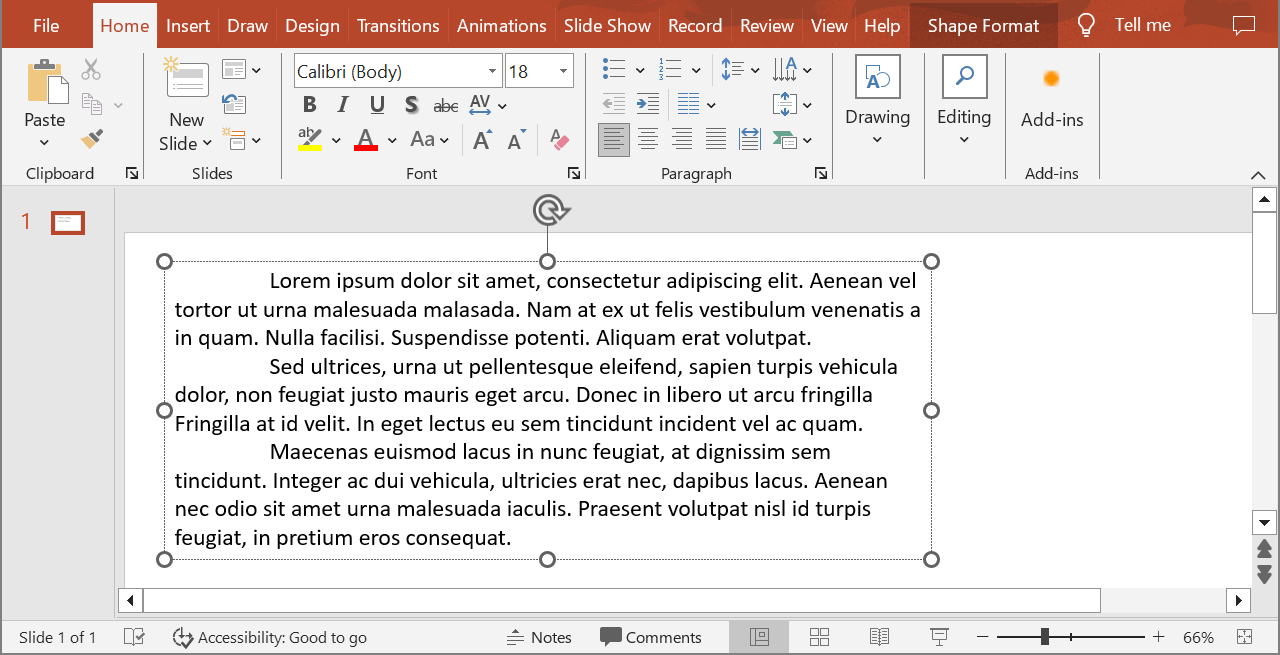

Příklad používá sample.pptx, prezentaci s jedním snímkem, jehož první tvar je textové pole obsahující tři odstavce.

Textové pole se třemi odstavci

Následující příklad vybírá druhý odstavec s indexem 1 a volá IParagraph::GetImage bez parametrů měřítka. Kontroluje, že tvar obsahuje požadovaný odstavec a že vykreslení vrací obrázek, před voláním IImage::Save pro uložení ve formátu PNG. Po uložení obrázek uvolní.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/Presentation.h>
#include <IImage.h>
#include <ImageFormat.h>
#include <system/console.h>
#include <system/object_ext.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>(u"sample.pptx");
auto shape = presentation->get_Slide(0)->get_Shape(0);
auto textShape = AsCast<IAutoShape>(shape);

if (textShape != nullptr && textShape->get_TextFrame() != nullptr && textShape->get_TextFrame()->get_Paragraphs()->get_Count() > 1)
{
    auto paragraph = textShape->get_TextFrame()->get_Paragraph(1);
    auto paragraphImage = paragraph->GetImage();

    if (paragraphImage != nullptr)
    {
        paragraphImage->Save(u"paragraph.png", ImageFormat::Png);
        paragraphImage->Dispose();
    }
    else
    {
        Console::WriteLine(u"The paragraph could not be rendered.");
    }
}
else
{
    Console::WriteLine(u"The expected text shape or paragraph was not found.");
}

presentation->Dispose();

Výsledek:

Obrázek odstavce

Vykreslení odstavce v buňce tabulky se škálováním

Použijte přetížení IParagraph::GetImage, které přijímá parametry float scaleX a float scaleY pro nastavení horizontálního a vertikálního měřítka. Následující příklad vytváří tabulku, vykresluje odstavec v první buňce dvojnásobně ve výchozí šířce i výšce a výsledek uloží jako PNG obrázek.

#include <DOM/IParagraph.h>
#include <DOM/Presentation.h>
#include <DOM/Table/ITable.h>
#include <IImage.h>
#include <ImageFormat.h>
#include <system/array.h>
#include <system/console.h>

using namespace Aspose::Slides;
using namespace System;

auto scaleX = 2.0f;
auto scaleY = 2.0f;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto table = slide->get_Shapes()->AddTable(50, 50, MakeArray<double>({300}), MakeArray<double>({80}));
auto paragraph = table->idx_get(0, 0)->get_TextFrame()->get_Paragraph(0);
paragraph->set_Text(u"Text in a table cell");

auto paragraphImage = paragraph->GetImage(scaleX, scaleY);
if (paragraphImage != nullptr)
{
    paragraphImage->Save(u"table_paragraph.png", ImageFormat::Png);
    paragraphImage->Dispose();
}
else
{
    Console::WriteLine(u"The paragraph could not be rendered.");
}

presentation->Dispose();

Faktor měřítka 1 zachová výchozí velikost v pixelech. Například 2 pro oba faktory vytvoří obrázek, jehož šířka a výška jsou přibližně dvakrát větší než výchozí rozměry, což vede ke čtyřnásobku pixelů. Větší faktory obecně přinášejí ostřejší text pro zoom nebo výstup ve vysokém rozlišení, ale také zvyšují nároky na paměť a velikost souboru. Faktory pod 1 produkují menší obrázky s menší úrovní detailu. Použijte stejné faktory pro zachování poměru stran odstavce; různé horizontální a vertikální faktory rozšíří výstup nezávisle.

Vykreslení celého tvaru pomocí IShape::GetImage zůstává užitečné, když výstup musí zahrnovat výplň, okraj nebo jiné vizuální kontexty tvaru. Pro obrázek pouze odstavce použijte IParagraph::GetImage.

Často kladené otázky

Mohu zcela zakázat zalamování řádků uvnitř textového rámce?

Ano. Použijte ITextFrameFormat::set_WrapText pro zakázání zalamování, aby řádky nebyly rozděleny na okrajích textového rámce.

Jak mohu získat přesné souřadnice konkrétního odstavce na snímku?

Použijte IParagraph::GetRect pro získání ohraničujícího obdélníku odstavce. IPortion::GetRect poskytuje souřadnice jednotlivé části.

Kde se řídí zarovnání odstavce (vlevo, vpravo, na střed nebo do bloku)?

IParagraphFormat::set_Alignment je nastavení na úrovni odstavce a platí pro celý odstavec bez ohledu na formátování jednotlivých částí.

Pro vertikální zarovnání částí s různými velikostmi písma v rámci řádku viz Align Fonts Within a Line.

Mohu nastavit jazyk kontroly pravopisu pro část odstavce?

Ano. Použijte IBasePortionFormat::set_LanguageId pro jednotlivé části, takže jeden odstavec může obsahovat text v několika jazycích.
