Gestisci i paragrafi di testo PowerPoint in C++

Panoramica

Aspose.Slides per C++ rappresenta il testo come una gerarchia di cornici di testo, paragrafi e porzioni:

  • ITextFrame rappresenta il contenitore di testo in una forma e fornisce l’accesso alla sua raccolta di paragrafi.
  • IParagraph rappresenta un paragrafo in una cornice di testo e fornisce l’accesso alle sue porzioni e alla formattazione a livello di paragrafo.
  • IPortion rappresenta un run di testo all’interno di un paragrafo. Ogni porzione può avere il proprio testo e la formattazione a livello di carattere.

Un paragrafo può quindi contenere testo con diversi caratteri, colori, dimensioni e altra formattazione utilizzando più porzioni.

Crea e formatta paragrafi

Crea paragrafi nella cornice di testo di una forma e utilizza le porzioni per formattare run di testo individuali. Questa sezione mostra come combinare più porzioni all’interno di ciascun paragrafo e applicare diversi colori, dimensioni di carattere e stili.

Crea paragrafi con più porzioni

Il seguente esempio C++ crea tre paragrafi, ognuno contenente tre run di testo nella sua collezione IParagraph::get_Portions. Riusa il paragrafo predefinito e la sua porzione vuota, poi aggiunge i paragrafi e le porzioni rimanenti. La formattazione viene applicata tramite IPortion::get_PortionFormat: la prima porzione di ogni paragrafo è rossa, in grassetto e 15 punti; la seconda è blu, in corsivo e 18 punti. La terza porzione mantiene la formattazione predefinita:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/string.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 150, 300, 150);
auto textFrame = shape->get_TextFrame();

auto firstParagraph = textFrame->get_Paragraph(0);
firstParagraph->get_Portions()->Add(MakeObject<Portion>());
firstParagraph->get_Portions()->Add(MakeObject<Portion>());

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
secondParagraph->get_Portions()->Add(MakeObject<Portion>());
textFrame->get_Paragraphs()->Add(secondParagraph);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
thirdParagraph->get_Portions()->Add(MakeObject<Portion>());
textFrame->get_Paragraphs()->Add(thirdParagraph);

auto paragraphCount = textFrame->get_Paragraphs()->get_Count();
for (auto paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++)
{
    auto paragraph = textFrame->get_Paragraph(paragraphIndex);
    auto portionCount = paragraph->get_Portions()->get_Count();
    for (auto portionIndex = 0; portionIndex < portionCount; portionIndex++)
    {
        auto portion = paragraph->get_Portion(portionIndex);
        portion->set_Text(String::Format(u"Portion {0}.{1}", paragraphIndex + 1, portionIndex + 1));
        auto portionFormat = portion->get_PortionFormat();

        if (portionIndex == 0)
        {
            portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
            portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Red());
            portionFormat->set_FontBold(NullableBool::True);
            portionFormat->set_FontHeight(15);
        }
        else if (portionIndex == 1)
        {
            portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
            portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Blue());
            portionFormat->set_FontItalic(NullableBool::True);
            portionFormat->set_FontHeight(18);
        }
    }
}

presentation->Save(u"paragraphs_with_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

Crea elenchi puntati e numerati

Organizza il testo dei paragrafi in elenchi con simboli, numeri o immagini personalizzate. Gli esempi in questa sezione coprono la formattazione dei puntini, elenchi multilevel e numeri di partenza personalizzati.

Crea un elenco puntato o numerato

I puntini e la numerazione rendono gli elementi correlati più facili da scansionare. In Aspose.Slides, le impostazioni dell’elenco sono definite tramite IBulletFormat.

Questo esempio C++ aggiunge un puntino simbolico e un elemento numerato alla stessa cornice di testo. IBulletFormat::set_Type seleziona il tipo di puntino, mentre IBulletFormat::set_Char fornisce il simbolo e IBulletFormat::set_NumberedBulletStyle seleziona lo stile di numerazione. Entrambi gli elementi usano puntini neri con un’altezza del 100 percento e un rientro del paragrafo di 25 punti:

#include <DOM/BulletType.h>
#include <DOM/ColorType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/NumberedBulletStyle.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/convert.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto symbolParagraph = MakeObject<Paragraph>();
symbolParagraph->set_Text(u"Welcome to Aspose.Slides");
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
symbolParagraph->get_ParagraphFormat()->set_Indent(25);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_ColorType(ColorType::RGB);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_Color(Color::get_Black());
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_IsBulletHardColor(NullableBool::True);
symbolParagraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(symbolParagraph);

auto numberedParagraph = MakeObject<Paragraph>();
numberedParagraph->set_Text(u"This is a numbered item");
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStyle(NumberedBulletStyle::BulletCircleNumWDBlackPlain);
numberedParagraph->get_ParagraphFormat()->set_Indent(25);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_ColorType(ColorType::RGB);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->get_Color()->set_Color(Color::get_Black());
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_IsBulletHardColor(NullableBool::True);
numberedParagraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(numberedParagraph);

presentation->Save(u"bulleted_and_numbered_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Usa puntini immagine

I puntini immagine consentono di utilizzare un’immagine personalizzata al posto di un simbolo o numero.

L’esempio richiede bullets.png nella directory di lavoro. Questo esempio C++ aggiunge un’immagine alla collezione di immagini della presentazione come IPPImage e la utilizza come puntino del paragrafo. Imposta IBulletFormat::set_Type per usare un puntino immagine e assegna l’immagine tramite IBulletFormat::get_Picture. IBulletFormat::set_Height è impostato al 100 percento per dimensionare il puntino rispetto al testo del paragrafo:

#include <DOM/BulletType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IImageCollection.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <IImage.h>
#include <Util/Images.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto bulletImage = Images::FromFile(u"bullets.png");
auto presentationImage = presentation->get_Images()->AddImage(bulletImage);
bulletImage->Dispose();

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto paragraph = MakeObject<Paragraph>();
paragraph->set_Text(u"Welcome to Aspose.Slides");
paragraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Picture);
paragraph->get_ParagraphFormat()->get_Bullet()->get_Picture()->set_Image(presentationImage);
paragraph->get_ParagraphFormat()->get_Bullet()->set_Height(100);
textFrame->get_Paragraphs()->Add(paragraph);

presentation->Save(u"picture_bullet.pptx", SaveFormat::Pptx);
presentation->Save(u"picture_bullet.ppt", SaveFormat::Ppt);
presentation->Dispose();

Crea un elenco a più livelli

Imposta IParagraphFormat::set_Depth per posizionare i paragrafi a diversi livelli di un elenco. Il livello superiore ha una profondità di 0.

Questo esempio C++ assegna valori IParagraphFormat::set_Depth da 0 a 3 a quattro paragrafi, creando una gerarchia all’interno di una sola cornice di testo. Ogni paragrafo usa un puntino simbolico, con IBulletFormat::set_Char alternato tra un puntino rotondo e un trattino per distinguere i livelli adiacenti:

#include <DOM/BulletType.h>
#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/convert.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"Content");
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_Depth(0);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Second level");
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(u'-');
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_Depth(1);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"Third level");
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(Convert::ToChar(0x2022));
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
thirdParagraph->get_ParagraphFormat()->set_Depth(2);

auto fourthParagraph = MakeObject<Paragraph>();
fourthParagraph->set_Text(u"Fourth level");
fourthParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Symbol);
fourthParagraph->get_ParagraphFormat()->get_Bullet()->set_Char(u'-');
fourthParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
fourthParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
fourthParagraph->get_ParagraphFormat()->set_Depth(3);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);
textFrame->get_Paragraphs()->Add(thirdParagraph);
textFrame->get_Paragraphs()->Add(fourthParagraph);

presentation->Save(u"multilevel_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Inizia gli elementi dell’elenco numerato con valori personalizzati

Usa IBulletFormat::set_NumberedBulletStartWith per impostare il numero iniziale visualizzato per un paragrafo numerato.

Questo esempio C++ imposta IBulletFormat::set_Type per usare la numerazione per tre paragrafi e assegna valori IBulletFormat::set_NumberedBulletStartWith di 2, 3 e 7. Il valore di partenza è configurato separatamente per ciascun paragrafo, consentendo ai numeri visualizzati di saltare valori:

#include <DOM/BulletType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 200, 200, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"Start at 2");
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
firstParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(2);
textFrame->get_Paragraphs()->Add(firstParagraph);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Start at 3");
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
secondParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(3);
textFrame->get_Paragraphs()->Add(secondParagraph);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"Start at 7");
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_Type(BulletType::Numbered);
thirdParagraph->get_ParagraphFormat()->get_Bullet()->set_NumberedBulletStartWith(7);
textFrame->get_Paragraphs()->Add(thirdParagraph);

presentation->Save(u"custom_numbered_list.pptx", SaveFormat::Pptx);
presentation->Dispose();

Controlla layout del paragrafo e proprietà finali

Regola i margini e i rientri del paragrafo per controllare la posizione della prima riga e delle righe a capo. È inoltre possibile formattare il segno di fine paragrafo separatamente dalle porzioni di testo visibili.

Imposta rientro della prima riga

Usa il metodo IParagraphFormat::set_Indent per controllare il rientro della prima riga di un paragrafo. Questo metodo sposta solo la prima riga rispetto al margine sinistro del paragrafo. Un valore positivo sposta la prima riga verso destra, mentre le righe rimanenti restano allineate al corpo del paragrafo.

Usa IParagraphFormat::set_MarginLeft quando è necessario spostare l’intero paragrafo. Usa IParagraphFormat::set_Indent quando è necessario spostare solo la prima riga.

Il seguente esempio assegna a tre paragrafi lo stesso IParagraphFormat::set_MarginLeft di 20 punti e valori IParagraphFormat::set_Indent di 0, 20 e 40 punti. Le prime righe iniziano con offset progressivamente più ampi, mentre le righe a capo mantengono lo stesso margine sinistro:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 420, 220);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Gray());

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::Shape);
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"No first-line indent. Wrapped lines start at the same position as the first line.");
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_MarginLeft(20);
firstParagraph->get_ParagraphFormat()->set_Indent(0);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"First-line indent of 20 points. The first line moves to the right, while wrapped lines remain aligned to the paragraph body.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_MarginLeft(20);
secondParagraph->get_ParagraphFormat()->set_Indent(20);

auto thirdParagraph = MakeObject<Paragraph>();
thirdParagraph->set_Text(u"First-line indent of 40 points. This paragraph shows a larger first-line offset to make the effect easier to see.");
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
thirdParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
thirdParagraph->get_ParagraphFormat()->set_MarginLeft(20);
thirdParagraph->get_ParagraphFormat()->set_Indent(40);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);
textFrame->get_Paragraphs()->Add(thirdParagraph);

presentation->Save(u"paragraph_indent.pptx", SaveFormat::Pptx);
presentation->Dispose();

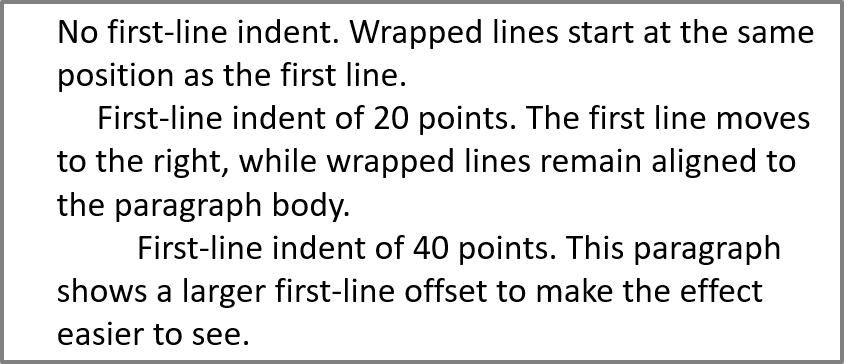

Il risultato:

Il rientro della prima riga dei paragrafi

Imposta rientro sospeso

Un rientro sospeso è un layout di paragrafo in cui la prima riga inizia a sinistra delle righe rimanenti. In Aspose.Slides, crei questo effetto con il metodo IParagraphFormat::set_Indent. Fornisci un valore negativo per spostare la prima riga verso sinistra rispetto al corpo del paragrafo.

In pratica, IParagraphFormat::set_MarginLeft definisce la posizione sinistra del corpo del paragrafo, e IParagraphFormat::set_Indent definisce la posizione della prima riga rispetto a quel margine. Per creare un rientro sospeso, imposta un valore positivo per MarginLeft e un valore negativo per Indent.

Questa formattazione è utile per bibliografie, riferimenti, voci di glossario e altri paragrafi in cui le righe a capo devono allinearsi sotto il corpo del paragrafo anziché sotto il primo carattere della prima riga.

Il seguente esempio C++ accoppia valori IParagraphFormat::set_MarginLeft di 40 e 60 punti con valori IParagraphFormat::set_Indent di -20 e -30 punti. In ogni paragrafo, la prima riga parte a sinistra delle righe a capo; il secondo paragrafo ha un rientro sospeso più profondo:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 420, 220);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::Solid);
shape->get_LineFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Gray());

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::Shape);
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->set_Text(u"A hanging indent is created by combining a positive left margin with a negative indent. The first line starts to the left, while wrapped lines align with the paragraph body.");
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
firstParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
firstParagraph->get_ParagraphFormat()->set_MarginLeft(40);
firstParagraph->get_ParagraphFormat()->set_Indent(-20);

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"This second example uses a deeper hanging indent so the difference between the first line and the wrapped lines is easier to compare.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
secondParagraph->get_ParagraphFormat()->set_MarginLeft(60);
secondParagraph->get_ParagraphFormat()->set_Indent(-30);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);

presentation->Save(u"hanging_indent.pptx", SaveFormat::Pptx);
presentation->Dispose();

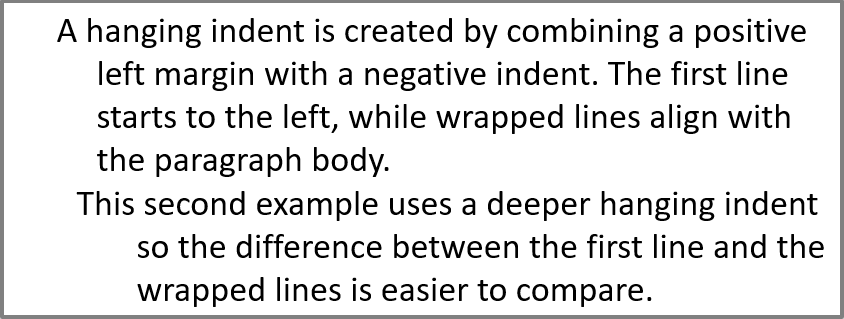

Il risultato:

Il rientro sospeso dei paragrafi

Imposta le proprietà di formato della fine del paragrafo

Il metodo IParagraph::set_EndParagraphPortionFormat controlla la formattazione del segno di fine paragrafo. L’esempio carica Test.pptx, che deve contenere almeno una diapositiva. Il seguente esempio crea un PortionFormat con IBasePortionFormat::set_FontHeight impostato a 48 punti e IBasePortionFormat::set_LatinFont impostato a Times New Roman. Assegna questo formato al segno di fine del secondo paragrafo, lasciando inalterate le porzioni di testo visibili:

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/PortionFormat.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>(u"Test.pptx");
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 10, 10, 200, 250);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

auto firstParagraph = MakeObject<Paragraph>();
firstParagraph->get_Portions()->Add(MakeObject<Portion>(u"Sample text"));

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->get_Portions()->Add(MakeObject<Portion>(u"Sample text 2"));

auto endParagraphFormat = MakeObject<PortionFormat>();
endParagraphFormat->set_FontHeight(48);
endParagraphFormat->set_LatinFont(MakeObject<FontData>(u"Times New Roman"));
secondParagraph->set_EndParagraphPortionFormat(endParagraphFormat);

textFrame->get_Paragraphs()->Add(firstParagraph);
textFrame->get_Paragraphs()->Add(secondParagraph);

presentation->Save(u"end_paragraph_format.pptx", SaveFormat::Pptx);
presentation->Dispose();

Conta le linee renderizzate

Per regole di paragrafo che influenzano l’andare a capo automatico e la punteggiatura a fine riga, vedere Controlla interruzione di linea e Controlla punteggiatura sospesa.

Usa IParagraph::GetLinesCount per contare le linee occupate da un paragrafo dopo il layout del testo, inclusa l’eventuale andatura automatica. Questo è utile quando si verifica la lunghezza del testo e il layout nei modelli di presentazione.

Un paragrafo è un elemento in ITextFrame::get_Paragraphs, e può occupare diverse linee renderizzate. Un’interruzione di riga esplicita all’interno di un paragrafo forza una nuova riga senza creare un altro paragrafo. L’andatura automatica crea linee in base alla larghezza disponibile senza inserire interruzioni di riga esplicite nel testo. Pertanto, contare i paragrafi o i caratteri di interruzione di riga non fornisce il conteggio delle linee renderizzate.

Il seguente esempio crea una forma di testo, conta le sue linee, restringe la forma e poi sostituisce il testo con una stringa più breve. L’esempio abilita ITextFrameFormat::set_WrapText e disabilita ITextFrameFormat::set_AutofitType in modo che la larghezza della forma controlli l’andatura senza ridurre automaticamente il testo o ridimensionare la forma. Ogni misura utilizza IParagraph::GetLinesCount. Le dimensioni della forma sono in punti. Infine, l’esempio aggiunge un altro paragrafo e somma i conteggi delle linee attraverso la cornice di testo.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAutofitType.h>
#include <system/console.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 400, 200);
auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::True);
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);

auto paragraph = textFrame->get_Paragraph(0);
paragraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(20);
paragraph->set_Text(u"This text demonstrates how automatic wrapping changes the number of rendered lines.");
Console::WriteLine(u"Original width: {0}", paragraph->GetLinesCount());

shape->set_Width(150);
Console::WriteLine(u"Narrower shape: {0}", paragraph->GetLinesCount());

paragraph->set_Text(u"Short text.");
Console::WriteLine(u"Shorter text: {0}", paragraph->GetLinesCount());

auto secondParagraph = MakeObject<Paragraph>();
secondParagraph->set_Text(u"Another paragraph.");
secondParagraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_FontHeight(20);
textFrame->get_Paragraphs()->Add(secondParagraph);

auto totalLineCount = 0;
for (auto currentParagraph : textFrame->get_Paragraphs())
{
    totalLineCount += currentParagraph->GetLinesCount();
}
Console::WriteLine(u"Total lines in the text frame: {0}", totalLineCount);
presentation->Dispose();

Con questo testo e queste dimensioni, restringere la forma aumenta il conteggio delle linee, mentre sostituire il testo con la stringa corta lo riduce. I conteggi esatti possono variare a seconda della disponibilità dei caratteri e della loro sostituzione, dimensione del carattere, margini, rientri, andatura e impostazioni di autofit. Usa i caratteri e le impostazioni di layout previsti per l’ambiente di destinazione quando verifichi un modello.

Il solo conteggio delle linee non determina se il testo supera i limiti del contenitore. Anche l’altezza disponibile, le altezze delle righe, la spaziatura tra paragrafi e righe, e il comportamento di autofit sono importanti; anche una singola riga può eccedere la larghezza disponibile quando l’andatura è disabilitata.

Importa ed esporta contenuto del paragrafo

Utilizza HTML per inserire testo in una presentazione o esportare paragrafi esistenti per l’uso al di fuori di essa. Questa sezione mostra anche come renderizzare singoli paragrafi come immagini, inclusi i paragrafi nelle celle di una tabella.

Importa testo HTML nei paragrafi

Usa ParagraphCollection::AddFromHtml per convertire markup HTML in paragrafi e porzioni in una cornice di testo.

Questo esempio C++ legge HTML da un file e passa il markup a ParagraphCollection::AddFromHtml. Cancella il paragrafo predefinito della cornice di testo in modo che la cornice contenga solo il contenuto importato. La forma rettangolare lascia un margine di 10 punti su ogni lato della diapositiva:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/ISlideSize.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/SaveFormat.h>
#include <system/io/stream_reader.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::IO;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto slideSize = presentation->get_SlideSize()->get_Size();
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 10, 10, slideSize.get_Width() - 20, slideSize.get_Height() - 20);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_TextFrame()->get_Paragraphs()->Clear();

auto reader = MakeObject<StreamReader>(u"file.html");
auto html = reader->ReadToEnd();
reader->Close();
shape->get_TextFrame()->get_Paragraphs()->AddFromHtml(html);

presentation->Save(u"html_text.pptx", SaveFormat::Pptx);
presentation->Dispose();

Esporta testo del paragrafo in HTML

Usa ParagraphCollection::ExportToHtml per esportare un intervallo selezionato di paragrafi come HTML. Quando si riutilizza il testo della presentazione su un sito web, può essere utile preservare l’enfasi locale senza importare lo stile di carattere, dimensione o casella di testo della presentazione. Imposta TextToHtmlConversionOptions::set_TextInheritanceLimit per controllare fino a che punto l’esportatore segue l’eredità della formattazione.

Scarica la presentazione di esempio e posizionala nella directory di lavoro dell’applicazione. La sua prima diapositiva contiene una forma di testo con il testo “Inherited text; explicit red 18pt”. L’input utilizza deliberatamente diversi livelli di formattazione:

  • Lo stile di testo predefinito della presentazione fornisce Calibri con una dimensione di 28 pt.
  • Lo stile di testo di primo livello della cornice fornisce testo blu e corsivo.
  • Il paragrafo imposta esplicitamente il testo in grassetto.
  • La seconda porzione, “explicit red 18pt”, imposta esplicitamente testo rosso e una dimensione di 18 pt.

Il seguente esempio esporta gli stessi paragrafi tre volte. Passa TextToHtmlConversionOptions al metodo di esportazione e scrive ogni risultato in un file HTML UTF‑8 separato:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/Presentation.h>
#include <Export/TextInheritanceLimit.h>
#include <Export/TextToHtmlConversionOptions.h>
#include <system/array.h>
#include <system/console.h>
#include <system/io/file.h>
#include <system/object_ext.h>
#include <system/text/encoding.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::IO;
using namespace System::Text;

auto presentation = MakeObject<Presentation>(u"text-inheritance.pptx");
auto shape = presentation->get_Slide(0)->get_Shape(0);
auto textShape = AsCast<IAutoShape>(shape);

if (textShape != nullptr && textShape->get_TextFrame() != nullptr)
{
    auto paragraphs = textShape->get_TextFrame()->get_Paragraphs();
    auto modes = MakeArray<TextInheritanceLimit>({TextInheritanceLimit::All, TextInheritanceLimit::TextBox, TextInheritanceLimit::ParagraphOnly});
    auto fileNames = MakeArray<String>({u"All.html", u"TextBox.html", u"ParagraphOnly.html"});

    for (auto i = 0; i < modes->get_Length(); i++)
    {
        auto options = MakeObject<TextToHtmlConversionOptions>();
        options->set_TextInheritanceLimit(modes[i]);

        auto html = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);
        File::WriteAllText(fileNames[i], html, Encoding::get_UTF8());
    }
}
else
{
    Console::WriteLine(u"The first shape is not a text shape.");
}

presentation->Dispose();

L’HTML generato contiene il seguente CSS per la prima porzione, “Inherited text; “. La tabella elenca le dichiarazioni rilevanti; altre proprietà generate sono omesse per chiarezza.

Output CSS rilevante per la prima porzione Aspetto
All.html font-family:'Calibri'; font-size:28pt; color:#0000ff; font-style:italic; font-weight:bold Testo blu, in grassetto e corsivo a 28 pt in Calibri, se quel carattere è disponibile.
TextBox.html color:#0000ff; font-style:italic; font-weight:bold Testo blu, in grassetto e corsivo; la pagina o il browser forniscono la famiglia di caratteri e la dimensione.
ParagraphOnly.html font-weight:bold Testo in grassetto; la pagina o il browser forniscono la famiglia di caratteri, la dimensione, il colore e lo stile corsivo.

La seconda porzione mantiene color:#ff0000, font-size:18pt e font-weight:bold in tutti e tre gli output. Mantiene anche il corsivo in All e TextBox, ma non in ParagraphOnly. Limitare l’eredità quindi non rimuove la formattazione assegnata esplicitamente a un paragrafo o a una porzione.

Apri i file nello stesso browser per confrontarli. Nei due modi limitati, le proprietà CSS omesse sono risolte dagli stili della pagina di destinazione o dai valori predefiniti del browser, quindi l’aspetto risultante dipende da dove viene usato l’HTML.

Genera un frammento HTML per gli appunti

Imposta TextToHtmlConversionOptions::set_AddClipboardFragmentHeader su false per HTML ordinario o su true per includere un’intestazione per gli appunti. L’intestazione fornisce gli offset in byte UTF‑8 dell’HTML circostante (StartHTML e EndHTML) e del frammento da incollare (StartFragment e EndFragment).

Questo esempio esporta due paragrafi formattati come HTML ordinario (html) e come frammento HTML per gli appunti (clipboardHtml). Scrivere il frammento negli appunti di sistema è un passo separato dell’applicazione. Un’API per gli appunti che accetta byte HTML grezzi richiede UTF‑8 senza BOM.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <Export/TextToHtmlConversionOptions.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 0, 0, 400, 100);
auto paragraphs = shape->get_TextFrame()->get_Paragraphs();
paragraphs->Clear();
paragraphs->AddFromHtml(u"<p>Status: <b>Ready</b></p><p><i>Next steps</i></p>");

auto options = MakeObject<TextToHtmlConversionOptions>();
options->set_AddClipboardFragmentHeader(false);
auto html = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);

options->set_AddClipboardFragmentHeader(true);
auto clipboardHtml = paragraphs->ExportToHtml(0, paragraphs->get_Count(), options);
presentation->Dispose();

Renderizza un paragrafo come immagine

IParagraph::GetImage renderizza direttamente un singolo paragrafo e restituisce un IImage. Salva il risultato in un file o stream con IImage::Save. Non è necessario renderizzare la forma contenente o ritagliare manualmente un bitmap.

IParagraph::GetImage può restituire nullptr se il paragrafo non può essere trovato nella collezione padre, non ha limiti di rendering validi o non può essere renderizzato. Controlla il risultato prima di salvarlo e rilascia l’immagine restituita dopo l’uso.

Renderizza un paragrafo alla scala predefinita

L’esempio utilizza sample.pptx, una presentazione con una diapositiva la cui prima forma è una casella di testo contenente tre paragrafi.

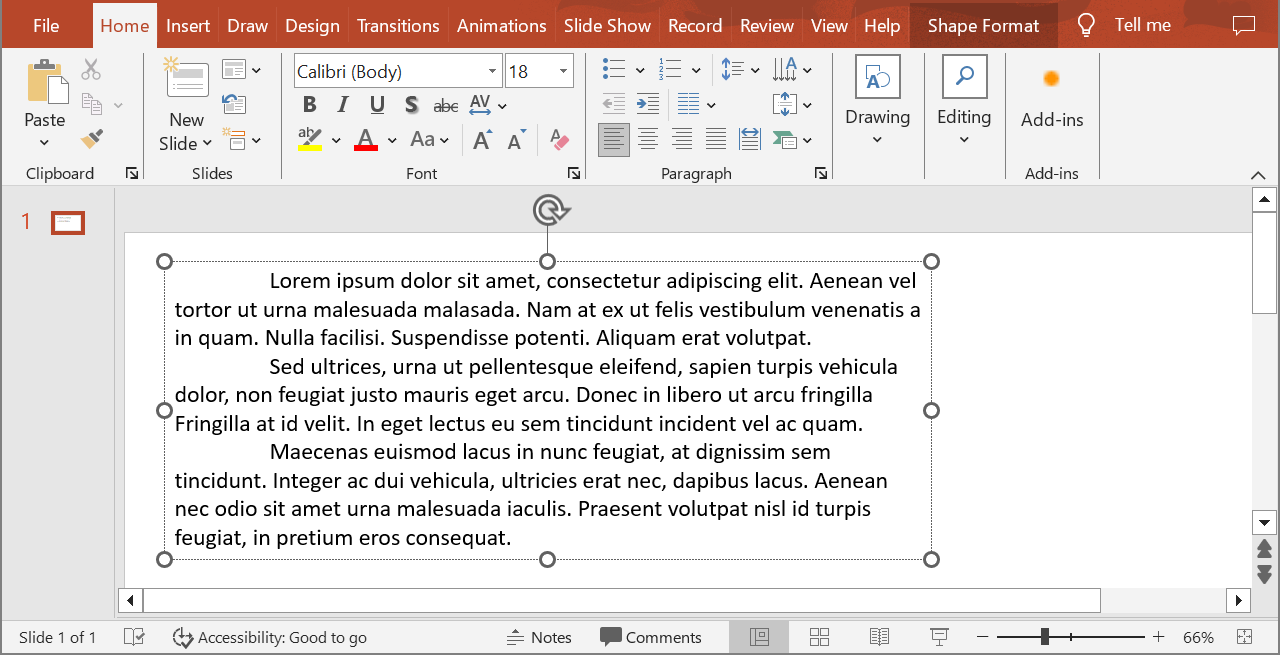

La casella di testo con tre paragrafi

Il seguente esempio seleziona il secondo paragrafo all’indice 1 e chiama IParagraph::GetImage senza parametri di scala. Verifica che la forma contenga il paragrafo richiesto e che il rendering restituisca un’immagine prima di chiamare IImage::Save per salvarla in formato PNG. L’esempio rilascia l’immagine dopo averla salvata.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/Presentation.h>
#include <IImage.h>
#include <ImageFormat.h>
#include <system/console.h>
#include <system/object_ext.h>

using namespace Aspose::Slides;
using namespace System;

auto presentation = MakeObject<Presentation>(u"sample.pptx");
auto shape = presentation->get_Slide(0)->get_Shape(0);
auto textShape = AsCast<IAutoShape>(shape);

if (textShape != nullptr && textShape->get_TextFrame() != nullptr && textShape->get_TextFrame()->get_Paragraphs()->get_Count() > 1)
{
    auto paragraph = textShape->get_TextFrame()->get_Paragraph(1);
    auto paragraphImage = paragraph->GetImage();

    if (paragraphImage != nullptr)
    {
        paragraphImage->Save(u"paragraph.png", ImageFormat::Png);
        paragraphImage->Dispose();
    }
    else
    {
        Console::WriteLine(u"The paragraph could not be rendered.");
    }
}
else
{
    Console::WriteLine(u"The expected text shape or paragraph was not found.");
}

presentation->Dispose();

Il risultato:

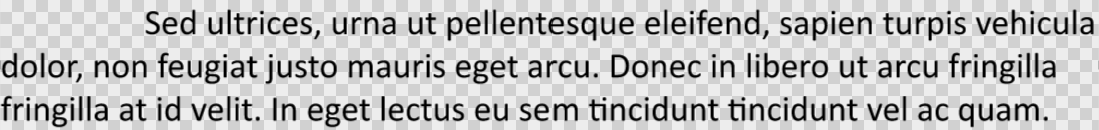

L’immagine del paragrafo

Renderizza un paragrafo in una cella di tabella con scala

Usa la sovraccarico di IParagraph::GetImage che accetta i parametri float scaleX e float scaleY per impostare i fattori di scala orizzontale e verticale. Il seguente esempio crea una tabella, renderizza il paragrafo nella sua prima cella a una larghezza e altezza doppie rispetto al valore predefinito e salva il risultato come immagine PNG.

#include <DOM/IParagraph.h>
#include <DOM/Presentation.h>
#include <DOM/Table/ITable.h>
#include <IImage.h>
#include <ImageFormat.h>
#include <system/array.h>
#include <system/console.h>

using namespace Aspose::Slides;
using namespace System;

auto scaleX = 2.0f;
auto scaleY = 2.0f;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto table = slide->get_Shapes()->AddTable(50, 50, MakeArray<double>({300}), MakeArray<double>({80}));
auto paragraph = table->idx_get(0, 0)->get_TextFrame()->get_Paragraph(0);
paragraph->set_Text(u"Text in a table cell");

auto paragraphImage = paragraph->GetImage(scaleX, scaleY);
if (paragraphImage != nullptr)
{
    paragraphImage->Save(u"table_paragraph.png", ImageFormat::Png);
    paragraphImage->Dispose();
}
else
{
    Console::WriteLine(u"The paragraph could not be rendered.");
}

presentation->Dispose();

Un fattore di scala di 1 mantiene quell’asse alle dimensioni pixel predefinite. Ad esempio, 2 per entrambi i fattori produce un’immagine la cui larghezza e altezza sono circa il doppio delle dimensioni predefinite, risultando in quattro volte più pixel. Fattori più grandi generalmente producono testo più nitido per lo zoom o l’output ad alta risoluzione, ma aumentano anche l’uso di memoria e le dimensioni del file. Fattori inferiori a 1 producono immagini più piccole con meno dettagli. Usa fattori uguali per preservare il rapporto d’aspetto del paragrafo; fattori diversi per gli assi orizzontale e verticale allungano l’output indipendentemente.

Renderizzare un’intera forma con IShape::GetImage resta utile quando l’output deve includere il riempimento, il bordo o altro contesto visivo della forma. Per un’immagine contenente solo il paragrafo, usa IParagraph::GetImage.

FAQ

Posso disabilitare completamente l’andare a capo automatico all’interno di una cornice di testo?

Sì. Usa ITextFrameFormat::set_WrapText per disabilitare l’andatura in modo che le linee non si interrompano ai bordi della cornice di testo.

Come posso ottenere i limiti esatti sullo slide di un paragrafo specifico?

Usa IParagraph::GetRect per recuperare il rettangolo di delimitazione del paragrafo. IPortion::GetRect fornisce i limiti di una porzione individuale.

Dove è controllato l’allineamento del paragrafo (sinistra, destra, centro o giustificato)?

IParagraphFormat::set_Alignment è un’impostazione a livello di paragrafo e si applica all’intero paragrafo indipendentemente dalla formattazione delle singole porzioni.

Per allineare verticalmente porzioni di diverse dimensioni di carattere all’interno di ogni riga, vedi Align Fonts Within a Line.

Posso impostare la lingua di correzione per una parte di un paragrafo?

Sì. Usa IBasePortionFormat::set_LanguageId per le singole porzioni, così un paragrafo può contenere testo in più lingue.
