فرمت‌بندی متن ارائه در C++

نمای کلی

این مقاله نحوه قالب‌بندی متن در ارائه‌های PowerPoint و OpenDocument را با استفاده از Aspose.Slides برای C++ نشان می‌دهد. این مقاله به رنگ پس‌زمینه، شفافیت، فاصله‌ی کاراکترها، ویژگی‌های قلم، چرخش، فاصله‌ی پاراگراف، رفتار autofit، تکیه‌گاه متن، توقف‌های تب و تنظیمات زبان می‌پردازد.

نمونه‌های ارائه به جز در مواردی که خلاف آن ذکر شده باشد، از sample.pptx استفاده می‌کنند. اولین شکل در اسلاید اول یک جعبه متن است و اولین پاراگراف آن شامل متنی است که در زیر نشان داده شده است. ایندکس‌های اسلاید و شکل از صفر شروع می‌شوند. نمونه‌هایی که بخش‌های برجسته را انتخاب می‌کنند از قالب‌بندی مؤثر، از جمله قالب‌بندی برجسته‌ی به ارث‌برده استفاده می‌کنند:

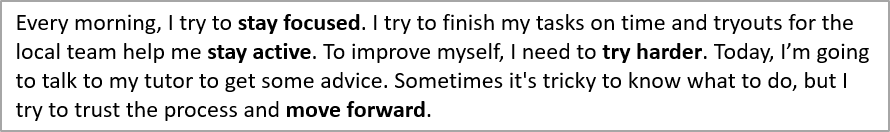

متن نمونه

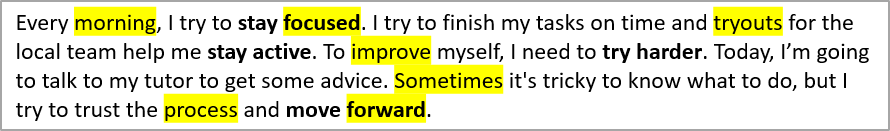

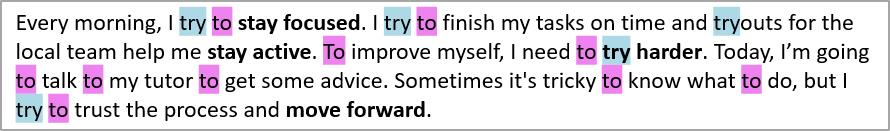

برای یافتن و برجسته‌کردن متن به صورت دقیق یا تطبیق‌های عبارت منظم، به جستجو و جایگزینی متن مراجعه کنید.

تنظیم رنگ پس‌زمینه متن

از IParagraphFormat::get_DefaultPortionFormat برای تنظیم رنگ برجسته پیش‌فرض یک پاراگراف استفاده کنید، یا از IBasePortionFormat::get_HighlightColor برای بخش‌های متنی جداگانه استفاده کنید.

مثال زیر یک برجسته خاکستری روشن را به‌عنوان پیش‌فرض برای اولین پاراگراف تنظیم می‌کند. رنگ‌های برجسته صریح در بخش‌های جداگانه بر این پیش‌فرض اولویت دارند:

#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto defaultPortionFormat = paragraph->get_ParagraphFormat()->get_DefaultPortionFormat();
auto highlightColor = System::Drawing::Color::get_LightGray();

// رنگ برجسته را برای تمام پاراگراف تنظیم کنید.
defaultPortionFormat->get_HighlightColor()->set_Color(highlightColor);

presentation->Save(u"gray_paragraph.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

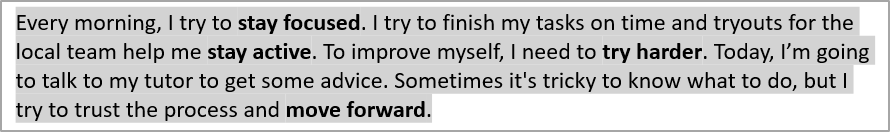

پاراگراف خاکستری

مثال کد زیر نشان می‌دهد چگونه رنگ پس‌زمینه را برای بخش‌های متنی با قلم پررنگ تنظیم کنید:

#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto portions = paragraph->get_Portions();
int portionCount = portions->get_Count();
auto highlightColor = System::Drawing::Color::get_LightGray();

for (int portionIndex = 0; portionIndex < portionCount; portionIndex++)
{
    auto portion = paragraph->get_Portion(portionIndex);
    auto portionFormat = portion->get_PortionFormat();
    if (portionFormat->GetEffective()->get_FontBold())
    {
        // رنگ برجسته را برای بخش متن تنظیم کنید.
        portionFormat->get_HighlightColor()->set_Color(highlightColor);
    }
}

presentation->Save(u"gray_text_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

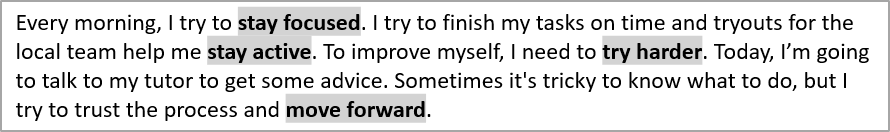

بخش‌های متنی خاکستری

ترازبندی پاراگراف‌های متن

از IParagraphFormat::set_Alignment برای تنظیم ترازبندی پاراگراف درون یک فریم متن استفاده کنید. مقدار می‌تواند مرکز، چپ‌چین، راست‌چین، طرز‌چین و غیره باشد.

مثال زیر نشان می‌دهد چگونه پاراگراف را به مرکز ترازبندی کنیم:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <DOM/TextAlignment.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);

// ترازبندی پاراگراف را به مرکز تنظیم کنید.
paragraph->get_ParagraphFormat()->set_Alignment(TextAlignment::Center);

presentation->Save(u"aligned_paragraph.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

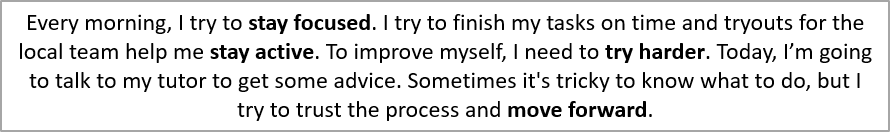

پاراگراف ترازبندی شده

ترازبندی قلم‌ها در یک خط

از IParagraphFormat::set_FontAlignment برای ترازبندی عمودی بخش‌های متنی با اندازه‌های قلم مختلف در یک خط استفاده کنید. این تنظیم برای تمام پاراگراف اعمال می‌شود و ترازبندی هر خط را کنترل می‌کند.

مثال زیر یک برنامه مستقل است که چهار جعبه متن برچسب‌دار را در یک اسلاید ایجاد می‌کند. هر پاراگراف همان متن را با اندازه‌های ۱۸، ۳۶ و ۵۴ پوینت دارد، با ترازبندی قلم متفاوت. از Arial استفاده می‌کند، autofit و wrapping را غیرفعال می‌سازد و فریم‌های متن را به اندازه‌ای بزرگ می‌کند که فقط یک خط در آن جا بگیرد.

#include <DOM/FontAlignment.h>
#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/FillType.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAnchorType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

FontAlignment alignments[] = { FontAlignment::Baseline, FontAlignment::Top, FontAlignment::Center, FontAlignment::Bottom };
String labels[] = { u"Baseline", u"Top", u"Center", u"Bottom" };
float fontSizes[] = { 18.0f, 36.0f, 54.0f };
auto font = MakeObject<FontData>(u"Arial");

for (auto i = 0; i < 4; i++)
{
    auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 30, 20 + i * 130, 660, 120);
    shape->get_FillFormat()->set_FillType(FillType::NoFill);
    shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);

    auto textFrame = shape->get_TextFrame();
    textFrame->get_TextFrameFormat()->set_AnchoringType(TextAnchorType::Top);
    textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);
    textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::False);

    auto label = textFrame->get_Paragraph(0);
    label->set_Text(labels[i]);
    label->get_ParagraphFormat()->set_Alignment(TextAlignment::Left);
    auto labelFormat = label->get_ParagraphFormat()->get_DefaultPortionFormat();
    labelFormat->set_FontHeight(14);
    labelFormat->set_LatinFont(font);
    labelFormat->get_FillFormat()->set_FillType(FillType::Solid);
    labelFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Gray());

    auto paragraph = MakeObject<Paragraph>();
    paragraph->get_ParagraphFormat()->set_FontAlignment(alignments[i]);
    paragraph->get_ParagraphFormat()->set_Alignment(TextAlignment::Left);
    auto portionFormat = paragraph->get_ParagraphFormat()->get_DefaultPortionFormat();
    portionFormat->set_LatinFont(font);
    portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
    portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());

    for (auto fontSize : fontSizes)
    {
        auto portion = MakeObject<Portion>(u"Ag ");
        portion->get_PortionFormat()->set_FontHeight(fontSize);
        paragraph->get_Portions()->Add(portion);
    }

    textFrame->get_Paragraphs()->Add(paragraph);
}

presentation->Save(u"font_alignment.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

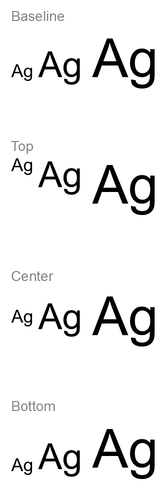

مقایسه ترازبندی قلم پایه، بالا، مرکز و پایین با اندازه‌های متفاوت

ترازبندی قلم از معیارهای متریک قلم استفاده می‌کند، بنابراین لبه‌های قابل مشاهده حروف لزوماً دقیقاً در یک خط قرار نمی‌گیرند. مثال شامل یک حرف بزرگ و یک حروف پایه‌پایین برای نشان دادن تفاوت بین ترازبندی پایه و پایین است. در دسترس بودن قلم و جایگزینی، کاراکترهای استفاده‌شده، و تفاوت در اندازه‌های قلم بر نتیجه تاثیر می‌گذارد. ابعاد فریم، حاشیه‌ها، فاصله خطوط، wrapping و autofit نیز بر چیدمان اثر دارند؛ برای مقایسه حالت‌ها از همان قلم و تنظیمات چیدمان استفاده کنید.

این تنظیم متفاوت از IParagraphFormat::set_Alignment است که ترازبندی افقی پاراگراف را کنترل می‌کند، و از ITextFrameFormat::set_AnchoringType که موقعیت عمودی بلوک متن را در داخل شکل تنظیم می‌کند. قالب‌بندی بالانیا و زیرنیا از طریق IBasePortionFormat::set_Escapement بخش‌های جداگانه را نسبت به خط پایه جابه‌جا می‌کند به‌جای تنظیم ترازبندی قلم برای خطوط پاراگراف.

تنظیم شفافیت برای متن

شفافیت متن از طریق مؤلفه آلفای رنگی که از طریق IBasePortionFormat::get_FillFormat اختصاص می‌شود، کنترل می‌شود. در مثال‌های زیر، alpha = 50 یک مقدار کانال آلفای ARGB در مقیاس ۰–۲۵۵ است، نه درصد شفافیت.

مثال کد زیر نشان می‌دهد چگونه شفافیت را بر کل پاراگراف اعمال کنیم:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

int alpha = 50;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto defaultPortionFormat = paragraph->get_ParagraphFormat()->get_DefaultPortionFormat();

// رنگ پر شدن متن را به رنگ شفاف تنظیم کنید.
defaultPortionFormat->get_FillFormat()->set_FillType(FillType::Solid);
auto baseColor = System::Drawing::Color::get_Black();
auto transparentColor = System::Drawing::Color::FromArgb(alpha, baseColor);
defaultPortionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(transparentColor);

presentation->Save(u"transparent_paragraph.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

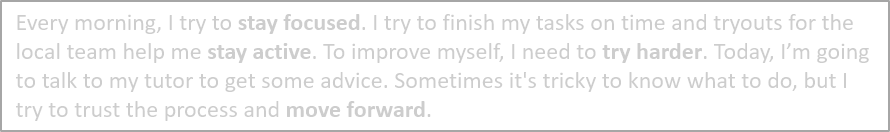

پاراگراف شفاف

مثال زیر نشان می‌دهد چگونه شفافیت را بر بخش‌های متنی با قلم پررنگ اعمال کنیم:

#include <DOM/FillType.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

int alpha = 50;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto portions = paragraph->get_Portions();
int portionCount = portions->get_Count();

for (int portionIndex = 0; portionIndex < portionCount; portionIndex++)
{
    auto portion = paragraph->get_Portion(portionIndex);
    auto portionFormat = portion->get_PortionFormat();
    if (portionFormat->GetEffective()->get_FontBold())
    {
        // شفافیت بخش متن را تنظیم کنید.
        portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
        auto baseColor = System::Drawing::Color::get_Black();
        auto transparentColor = System::Drawing::Color::FromArgb(alpha, baseColor);
        portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(transparentColor);
    }
}

presentation->Save(u"transparent_text_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

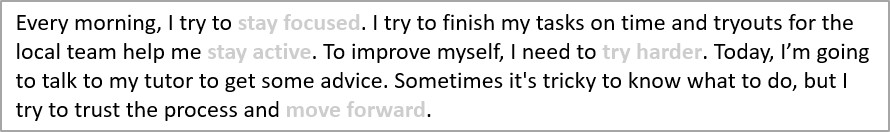

بخش‌های متنی شفاف

تنظیم فاصله کاراکترها برای متن

از IBasePortionFormat::set_Spacing برای گسترش یا فشرده‌سازی فاصله بین کاراکترها در یک جعبه متن استفاده کنید. مثال‌ها ۳ پوینت فاصله اضافه می‌کنند؛ مقادیر منفی متن را فشرده می‌سازند.

کد C++ زیر نشان می‌دهد چگونه فاصله کاراکترها را در کل پاراگراف گسترش دهیم:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
// نکته: برای فشردن فاصله کاراکترها از مقادیر منفی استفاده کنید.
paragraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_Spacing(3.0f); // فاصله کاراکترها را گسترش دهید.

presentation->Save(u"character_spacing_in_paragraph.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

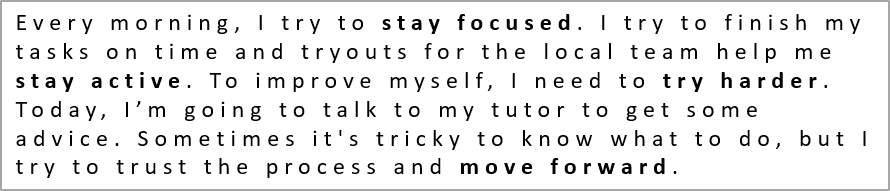

فاصله کاراکترها در پاراگراف

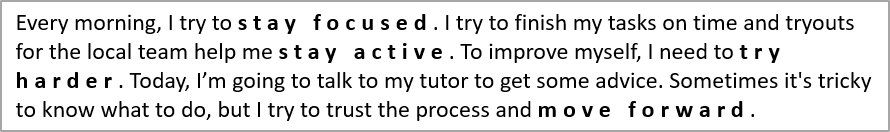

مثال کد زیر نشان می‌دهد چگونه فاصله کاراکترها را در بخش‌های متنی با قلم پررنگ گسترش دهیم:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto portions = paragraph->get_Portions();
int portionCount = portions->get_Count();

for (int portionIndex = 0; portionIndex < portionCount; portionIndex++)
{
    auto portion = paragraph->get_Portion(portionIndex);
    auto portionFormat = portion->get_PortionFormat();
    if (portionFormat->GetEffective()->get_FontBold())
    {
        // نکته: برای فشردن فاصله کاراکترها از مقادیر منفی استفاده کنید.
        portionFormat->set_Spacing(3.0f); // فاصله کاراکترها را گسترش دهید.
    }
}

presentation->Save(u"character_spacing_in_text_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

فاصله کاراکترها در بخش‌های متنی

غیرفعال کردن کرنینگ برای قلم‌های خاص

در برخی موارد، متنی که توسط Aspose.Slides رندر می‌شود ممکن است کمی فشرده‌تر از همان متن در PowerPoint به‌نظر برسد. این می‌تواند به این دلیل باشد که PowerPoint ممکن است داده‌های کرنینگ برای برخی قلم‌ها را نادیده بگیرد، حتی زمانی که قلم حاوی اطلاعات کرنینگ معتبر باشد و کرنینگ در تنظیمات PowerPoint فعال باشد.

برای نزدیک‌تر کردن خروجی رندر به PowerPoint در این موارد، می‌توانید کرنینگ را برای بخش‌های متنی که از قلم متاثر استفاده می‌کنند غیرفعال کنید. از IBasePortionFormat::set_KerningMinimalSize برای تنظیم مقدار بزرگ‌تر از اندازه واقعی قلم استفاده کنید. این مثال نیاز به «presentation.pptx» دارد که جعبه متن به عنوان اولین شکل در اسلاید اول قرار دارد. نام‌های قلم مؤثر، شامل قلم‌های به ارث‌برده، را بررسی می‌کند و آستانه ۱۰۰ پوینت را برای بخش‌هایی که از Roboto استفاده می‌کنند تنظیم می‌کند. این کار کرنینگ را برای بخش‌های منطبق با اندازه قلم زیر ۱۰۰ پوینت غیرفعال می‌کند:

#include <DOM/IAutoShape.h>
#include <DOM/IFontData.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"presentation.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
System::String targetFont = u"Roboto";
auto textFrame = autoShape->get_TextFrame();
auto paragraphs = textFrame->get_Paragraphs();
int paragraphCount = paragraphs->get_Count();

for (int paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++)
{
    auto paragraph = textFrame->get_Paragraph(paragraphIndex);
    auto portions = paragraph->get_Portions();
    int portionCount = portions->get_Count();

    for (int portionIndex = 0; portionIndex < portionCount; portionIndex++)
    {
        auto portion = paragraph->get_Portion(portionIndex);
        auto portionFormat = portion->get_PortionFormat();
        auto textFormat = portionFormat->GetEffective();
        auto latinFont = textFormat->get_LatinFont();
        auto eastAsianFont = textFormat->get_EastAsianFont();
        auto complexScriptFont = textFormat->get_ComplexScriptFont();

        bool isLatinFont = latinFont != nullptr && latinFont->get_FontName() == targetFont;
        bool isEastAsianFont = eastAsianFont != nullptr && eastAsianFont->get_FontName() == targetFont;
        bool isComplexScriptFont = complexScriptFont != nullptr && complexScriptFont->get_FontName() == targetFont;

        if (isLatinFont || isEastAsianFont || isComplexScriptFont)
        {
            portionFormat->set_KerningMinimalSize(100.0f);
        }
    }
}

presentation->Save(u"output.pptx", SaveFormat::Pptx);
presentation->Dispose();

برای متن منطبق زیر آستانه، این تنظیم کرنینگ را مانع می‌شود و می‌تواند به هم‌راستایی رندر Aspose.Slides با خروجی بصری PowerPoint برای قلم‌های تحت تأثیر این رفتار خاص PowerPoint کمک کند.

مدیریت ویژگی‌های قلم متن

ویژگی‌های قلم می‌توانند در سطح پاراگراف از طریق IParagraphFormat::get_DefaultPortionFormat یا در بخش‌های جداگانه از طریق IPortionFormat تنظیم شوند.

مثال زیر قلم پیش‌فرض اولین پاراگراف را به ۱۲ پوینت Times New Roman با پررنگ، مورب و خط زیرخط نقطه‌ای تنظیم می‌کند. قالب‌بندی صریح در بخش‌های جداگانه بر این پیش‌فرض‌ها اولویت دارد:

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/TextUnderlineType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto defaultPortionFormat = paragraph->get_ParagraphFormat()->get_DefaultPortionFormat();

// ویژگی‌های قلم را برای پاراگراف تنظیم کنید.
defaultPortionFormat->set_FontHeight(12.0f);
defaultPortionFormat->set_FontBold(NullableBool::True);
defaultPortionFormat->set_FontItalic(NullableBool::True);
defaultPortionFormat->set_FontUnderline(TextUnderlineType::Dotted);
auto font = System::MakeObject<FontData>(u"Times New Roman");
defaultPortionFormat->set_LatinFont(font);

presentation->Save(u"font_properties_for_paragraph.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

ویژگی‌های قلم برای پاراگراف

مثال زیر ۱۳ پوینت Times New Roman، قالب‌بندی مورب و خط زیرخط نقطه‌ای را بر بخش‌هایی که قالب‌بندی مؤثرشان پررنگ است اعمال می‌کند:

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/TextUnderlineType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
auto portions = paragraph->get_Portions();
int portionCount = portions->get_Count();
auto font = System::MakeObject<FontData>(u"Times New Roman");

for (int portionIndex = 0; portionIndex < portionCount; portionIndex++)
{
    auto portion = paragraph->get_Portion(portionIndex);
    auto portionFormat = portion->get_PortionFormat();
    if (portionFormat->GetEffective()->get_FontBold())
    {
        // ویژگی‌های قلم را برای بخش متن تنظیم کنید.
        portionFormat->set_FontHeight(13.0f);
        portionFormat->set_FontItalic(NullableBool::True);
        portionFormat->set_FontUnderline(TextUnderlineType::Dotted);
        portionFormat->set_LatinFont(font);
    }
}

presentation->Save(u"font_properties_for_text_portions.pptx", SaveFormat::Pptx);
presentation->Dispose();

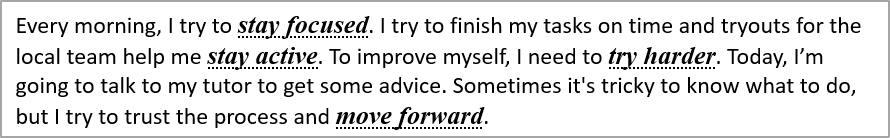

نتیجه:

ویژگی‌های قلم برای بخش‌های متنی

کنترل نرمال‌سازی ارتفاع متن

از IBasePortionFormat::set_NormaliseHeight هنگام بازآفرینی تایپوگرافی قالب یا بررسی تفاوت‌های ارتفاع کاراکترها استفاده کنید. در PowerPoint، فعال‌سازی نرمال‌سازی کاراکترها را به‌صورت عمودی کشیده یا فشرده می‌کند تا ارتفاع قابل مشاهدهٔ یکسانی درون بخش متن داشته باشند. این کار تضمین نمی‌کند که ارتفاع متن در قلم‌های مختلف برابر باشد.

خاصیت را به NullableBool::True یا False تنظیم کنید تا صراحتاً نرمال‌سازی را فعال یا غیرفعال کنید. NullableBool::NotDefined تنظیم محلی را خالی می‌گذارد تا بخش مقدار را از مثالاً از IParagraphFormat::get_DefaultPortionFormat پاراگراف به ارث ببرد. این به معنای False نیست. از IPortionFormat::GetEffective استفاده کنید و IBasePortionFormatEffectiveData::get_NormaliseHeight را بخوانید تا مقدار بولی حل‌شده را به‌دست آورید.

مثال خودکفا زیر نیاز به نصب Arial دارد. این مثال دو بلوک متن حاوی حروف بزرگ، حروف کوچک، حروف پایه‌پایین و کاراکترهای لهجه‌دار در ۵۴ پوینت ایجاد می‌کند. هر دو پاراگراف به‌صورت پیش‌فرض نرمال‌سازی را فعال می‌کنند. بخش بالا به‌صورت صریح آن را غیرفعال می‌کند؛ بخش زیر آن را ارث می‌برد. اندازه فریم‌ها، حاشیه‌ها و فاصله پاراگراف یکسان‌اند، با wrapping و autofit غیرفعال برای حفظ مقایسه ثابت. مثال False: False و NotDefined: True را چاپ می‌کند و «text_height_normalization.pptx» را ذخیره می‌نماید:

#include <DOM/FillType.h>
#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAnchorType.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/console.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

NullableBool settings[] = { NullableBool::False, NullableBool::NotDefined };

for (auto i = 0; i < 2; i++)
{
    auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 30, 60 + i * 200, 660, 150);
    shape->get_FillFormat()->set_FillType(FillType::NoFill);
    shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);

    auto textFrame = shape->get_TextFrame();
    textFrame->set_Text(u"Hxgjpq ÅÉ 0123");
    textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);
    textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::False);
    textFrame->get_TextFrameFormat()->set_AnchoringType(TextAnchorType::Top);
    textFrame->get_TextFrameFormat()->set_MarginTop(0);
    textFrame->get_TextFrameFormat()->set_MarginLeft(0);

    auto paragraph = textFrame->get_Paragraph(0);
    paragraph->get_ParagraphFormat()->set_Alignment(TextAlignment::Left);
    paragraph->get_ParagraphFormat()->set_SpaceBefore(0);
    paragraph->get_ParagraphFormat()->set_SpaceAfter(0);
    paragraph->get_ParagraphFormat()->set_SpaceWithin(100);
    paragraph->get_ParagraphFormat()->get_DefaultPortionFormat()->set_NormaliseHeight(NullableBool::True);

    auto portion = paragraph->get_Portion(0);
    auto font = MakeObject<FontData>(u"Arial");
    portion->get_PortionFormat()->set_LatinFont(font);
    portion->get_PortionFormat()->set_FontHeight(54);
    portion->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
    portion->get_PortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
    portion->get_PortionFormat()->set_NormaliseHeight(settings[i]);

    Console::WriteLine(u"{0}: {1}", settings[i], portion->get_PortionFormat()->GetEffective()->get_NormaliseHeight());
}

presentation->Save(u"text_height_normalization.pptx", SaveFormat::Pptx);
presentation->Dispose();

مقایسه زیر از ارائهٔ ذخیره‌شده استخراج شده است. ردیف بالا نرمال‌سازی غیرفعال (False) دارد؛ ردیف پایین مقدار ارث‌برده فعال (NotDefined → True) دارد. برای بازآفرینی این ظاهر Arial باید نصب باشد.

متن ۵۴ پوینت Arial با نرمال‌سازی غیرفعال در بالا و نرمال‌سازی ارث‌بری فعال در پایین

نرمال‌سازی ارتفاع کاراکترها را بدون تغییر مقدار IBasePortionFormat::get_FontHeight که اندازهٔ قلم را به پوینت مشخص می‌کند، تغییر می‌دهد. فاصله خطوط پاراگراف توسط IParagraphFormat::set_SpaceWithin کنترل می‌شود، در حالی که autofit فریم متن توسط ITextFrameFormat::set_AutofitType تنظیم می‌شود. این تنظیمات اهداف متفاوتی دارند و می‌توانند به‌طور مستقلی بر چیدمان کلی تأثیر بگذارند. برای اطلاعات بیشتر درباره قالب‌بندی پاراگراف و ارث‌بری، به مدیریت پاراگراف مراجعه کنید.

اعمال و حذف خط‌خورده

از IBasePortionFormat::set_StrikethroughType بر یک بخش متن استفاده کنید تا اصلاحات، عبارات لغو شده یا قیمت‌های قبلی را بدون حذف متن اصلی نشان دهید. برای یک یا دو خط عبور از متن، به ترتیب از TextStrikethroughType::Single یا Double استفاده کنید.

برای حذف خط‌خورده، TextStrikethroughType::None را اختصاص دهید. این به‌صورت صریح اثر را غیرفعال می‌کند، حتی اگر قالب‌بندی محیطی خط‌خورده باشد. برعکس، TextStrikethroughType::NotDefined تنظیم محلی را نامعین می‌گذارد تا بخش قالب‌بندی را از مثالاً از پاراگراف به ارث ببرد. این تضمین نمی‌کند که خط‌خورده حذف شود. برای خواندن قالب‌بندی نهایی، شامل مقادیر ارث‌بری، از IPortionFormat::GetEffective استفاده کنید.

مثال خودکفا زیر سه مقایسهٔ قیمت ایجاد می‌کند. هر پاراگراف بخش‌های جداگانه برای برچسب، قیمت قبلی و قیمت فعلی دارد، به‌طوری که فقط قیمت قبلی تحت تأثیر قرار می‌گیرد. ردیف اول خط‌خورده را اعمال و سپس حذف می‌کند؛ ردیف‌های دیگر به ترتیب خط‌خورده تک و دوگانه را حفظ می‌کنند. تغییر این ویژگی متن و سایر قالب‌بندی‌ها، از جمله پررنگ بودن قیمت قبلی، را حفظ می‌کند.

#include <DOM/FillType.h>
#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/NullableBool.h>
#include <DOM/Paragraph.h>
#include <DOM/Portion.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextStrikethroughType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;

auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50, 50, 620, 220);
shape->get_FillFormat()->set_FillType(FillType::NoFill);
shape->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
auto textFrame = shape->get_TextFrame();
textFrame->get_Paragraphs()->Clear();

String labels[] = { u"None: ", u"Single: ", u"Double: " };

for (auto label : labels)
{
    auto paragraph = MakeObject<Paragraph>();
    paragraph->get_ParagraphFormat()->set_Alignment(TextAlignment::Left);
    paragraph->get_ParagraphFormat()->set_SpaceAfter(20);

    auto format = paragraph->get_ParagraphFormat()->get_DefaultPortionFormat();
    format->set_FontHeight(28);
    auto font = MakeObject<FontData>(u"Arial");
    format->set_LatinFont(font);
    format->get_FillFormat()->set_FillType(FillType::Solid);
    format->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());

    auto labelPortion = MakeObject<Portion>(label);
    paragraph->get_Portions()->Add(labelPortion);

    auto previousPrice = MakeObject<Portion>(u"$100");
    previousPrice->get_PortionFormat()->set_FontBold(NullableBool::True);
    paragraph->get_Portions()->Add(previousPrice);
    auto currentPrice = MakeObject<Portion>(u" → $80");
    paragraph->get_Portions()->Add(currentPrice);

    textFrame->get_Paragraphs()->Add(paragraph);
}

// خط‌خورده اعمال کنید، سپس به‌صورت صریح آن را از اولین قیمت قبلی حذف کنید.
auto firstPriceFormat = textFrame->get_Paragraph(0)->get_Portion(1)->get_PortionFormat();
firstPriceFormat->set_StrikethroughType(TextStrikethroughType::Single);
firstPriceFormat->set_StrikethroughType(TextStrikethroughType::None);

textFrame->get_Paragraph(1)->get_Portion(1)->get_PortionFormat()->set_StrikethroughType(TextStrikethroughType::Single);
textFrame->get_Paragraph(2)->get_Portion(1)->get_PortionFormat()->set_StrikethroughType(TextStrikethroughType::Double);

presentation->Save(u"strikethrough.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه، از بالا به پایین: بدون خط‌خورده، خط‌خورده تک و خط‌خورده دوگانه.

قیمت‌های قبلی بدون خط‌خورده، با خط‌خورده تک، و با خط‌خورده دوگانه

تنظیم چرخش متن

از ITextFrameFormat::set_TextVerticalType برای تنظیم جهت پیش‌فرض متن درون یک شکل استفاده کنید.

مثال کد زیر جهت متن در شکل را به TextVerticalType::Vertical270 تنظیم می‌کند که متن را ۹۰ درجه در جهت ضدساعت می‌چرخاند:

#include <DOM/IAutoShape.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/Presentation.h>
#include <DOM/TextVerticalType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
autoShape->get_TextFrame()->get_TextFrameFormat()->set_TextVerticalType(TextVerticalType::Vertical270);

presentation->Save(u"text_rotation.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

چرخش متن

تنظیم چرخش سفارشی برای فریم‌های متن

از ITextFrameFormat::set_RotationAngle برای تنظیم زاویهٔ چرخش سفارشی برای یک ITextFrame استفاده کنید.

مثال کد زیر فریم متن را داخل شکل ۳ درجه ساعتگرد می‌چرخاند:

#include <DOM/IAutoShape.h>
#include <DOM/ISlide> // Note: This line originally had no comment, but keep the code unchanged.
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspense::Slides;
using namespace Aspense::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"...

نتیجه:

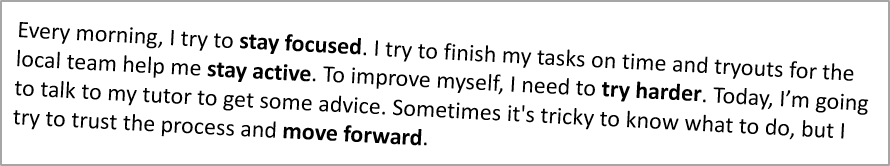

چرخش سفارشی متن

تنظیم فاصله خطوط پاراگراف‌ها

Aspose.Slides متدهای IParagraphFormat::set_SpaceAfter، IParagraphFormat::set_SpaceBefore و IParagraphFormat::set_SpaceWithin را برای کنترل فاصله پاراگراف‌ها ارائه می‌دهد. این روش‌ها به‌صورت زیر استفاده می‌شوند:

  • برای تعیین فاصله خطوط به‌عنوان درصدی از ارتفاع خط، مقدار مثبت بکار ببرید.
  • برای تعیین فاصله خطوط به پوینت، مقدار منفی بکار ببرید.

مثال زیر فاصلهٔ داخل اولین پاراگراف را به ۲۰۰٪ از ارتفاع خط (فاصلهٔ دو برابر) تنظیم می‌کند:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
paragraph->get_ParagraphFormat()->set_SpaceWithin(200.0f);

presentation->Save(u"line_spacing.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

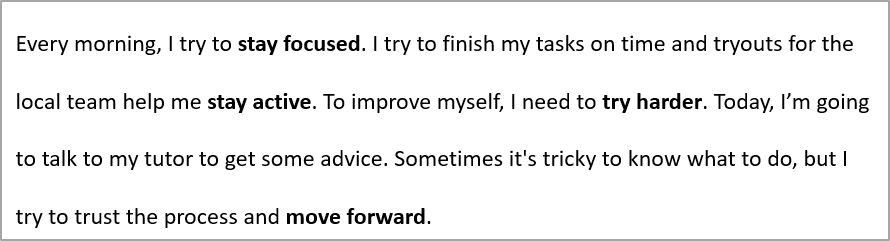

فاصله خطوط درون پاراگراف

کنترل شکست خط

قواعد شکست خط پاراگراف در بلوک‌های متنی باریک و ارائه‌هایی که متن لاتین و شرق آسیا را ترکیب می‌کنند مفید است. روش‌های زیر جزو IParagraphFormat هستند، لذا بر کل پاراگراف اعمال می‌شوند:

  • IParagraphFormat::set_LatinLineBreak قواعد شکست خط لاتین را کنترل می‌کند. در متن ترکیبی، تغییر آن می‌تواند نحوهٔ بسته شدن متن و نقطه‌گذاری شرق آسیا را نیز تغییر دهد.
  • IParagraphFormat::set_EastAsianLineBreak قواعد شکست خط شرق آسیا را کنترل می‌کند، از جمله محدودیت‌های کاراکتر در ابتدا و انتهای خط.

این قواعد جایگزین ITextFrameFormat::set_WrapText که wrapping خودکار را در فریم متن فعال می‌کند، نیستند. آن‌ها بر چیدمان زمانی که wrapping رخ می‌دهد تأثیر می‌گذارند؛ کاراکترهای شکست خط را وارد نمی‌کنند. یک شکست خط صریح، خط جدیدی را درون پاراگراف ایجاد می‌کند بدون در نظر گرفتن عرض موجود.

مثال خودکفا زیر یک بلوک متن باریک شامل متن چینی و لاتین ایجاد می‌کند. هر دو قاعدهٔ شکست خط به‌صورت صریح تنظیم می‌شوند و «line_breaking.pptx» ذخیره می‌شود. برای آزمایش هر قاعده، مقدار گذرانده‌شده به setter مربوطه را تغییر دهید در حالی که تنظیمات دیگر ثابت بمانند. مثال از Arial ۲۴ پوینت و SimSun با عرض فریم ۱۶۰ پوینت و حاشیهٔ افقی صفر استفاده می‌کند. ITextFrameFormat::set_AutofitType با TextAutofitType::None فراخوانی می‌شود تا اندازه متن و ابعاد فریم ثابت بمانند.

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/FillType.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50.0f, 50.0f, 160.0f, 300.0f);
shape->get_FillFormat()->set_FillType(FillType::NoFill);

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::True);
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);
textFrame->get_TextFrameFormat()->set_MarginLeft(0);
textFrame->get_TextFrameFormat()->set_MarginRight(0);

auto paragraph = textFrame->get_Paragraph(0);
paragraph->set_Text(u"中文排版测试,PowerPoint 中文演示。");

auto format = paragraph->get_ParagraphFormat();
format->set_Alignment(TextAlignment::Left);
auto portionFormat = format->get_DefaultPortionFormat();
portionFormat->set_FontHeight(24.0f);
auto latinFont = System::MakeObject<FontData>(u"Arial");
portionFormat->set_LatinFont(latinFont);
auto eastAsianFont = System::MakeObject<FontData>(u"SimSun");
portionFormat->set_EastAsianFont(eastAsianFont);
portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(System::Drawing::Color::get_Black());
format->set_LatinLineBreak(NullableBool::False);
format->set_EastAsianLineBreak(NullableBool::True);

presentation->Save(u"line_breaking.pptx", SaveFormat::Pptx);
presentation->Dispose();

کنترل نقطه‌گذاری معلق

IParagraphFormat::set_HangingPunctuation اجازه می‌دهد نقطه‌گذاری مجاز از لبهٔ راست خط متن فراتر رود به‌جای اینکه در خط بعدی قرار گیرد. این تنظیم برای کل پاراگراف اعمال می‌شود و متفاوت از تورفتگی معلق است.

مثال خودکفا زیر نقطه‌گذاری معلق را در فریم متن ۱۰۰ پوینت‌عرض فعال می‌کند و «hanging_punctuation.pptx» را ذخیره می‌کند. با Arial ۲۴ پوینت و حاشیهٔ افقی صفر، نقطهٔ نهایی پس از «sentence» می‌ماند و از لبهٔ راست متن فراتر می‌رود. برای مقایسه، به setter مقدار NullableBool::False بدهید: در این تنظیمات نقطه در خط جداگانه قرار می‌گیرد. wrapping فعال و autofit غیرفعال برای ثابت نگه داشتن عرض موجود است.

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IColorFormat.h>
#include <DOM/IFillFormat.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/FillType.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <DOM/TextAlignment.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);

auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 50.0f, 50.0f, 100.0f, 200.0f);
shape->get_FillFormat()->set_FillType(FillType::NoFill);

auto textFrame = shape->get_TextFrame();
textFrame->get_TextFrameFormat()->set_WrapText(NullableBool::True);
textFrame->get_TextFrameFormat()->set_AutofitType(TextAutofitType::None);
textFrame->get_TextFrameFormat()->set_MarginLeft(0);
textFrame->get_TextFrameFormat()->set_MarginRight(0);

auto paragraph = textFrame->get_Paragraph(0);
paragraph->set_Text(u"Simple text, next sentence.");

auto format = paragraph->get_ParagraphFormat();
format->set_Alignment(TextAlignment::Left);
auto portionFormat = format->get_DefaultPortionFormat();
portionFormat->set_FontHeight(24.0f);
auto latinFont = System::MakeObject<FontData>(u"Arial");
portionFormat->set_LatinFont(latinFont);
portionFormat->get_FillFormat()->set_FillType(FillType::Solid);
portionFormat->get_FillFormat()->get_SolidFillColor()->set_Color(System::Drawing::Color::get_Black());
format->set_HangingPunctuation(NullableBool::True);

presentation->Save(u"hanging_punctuation.pptx", SaveFormat::Pptx);
presentation->Dispose();

همهٔ علامت‌های نگارشی نمی‌توانند معلق شوند. شرایط قلم و چیدمان شرح داده‌شده در کنترل شکست خط نیز برای این مقایسه اعمال می‌شود: تغییر قلم، عرض موجود، حاشیه‌ها یا تنظیمات autofit می‌تواند تفاوت قابل مشاهده را حذف کند.

تنظیم نوع Autofit برای فریم‌های متن

ITextFrameFormat::set_AutofitType رفتار متن را زمانی که از مرزهای محفظه‌اش فراتر می‌رود تعیین می‌کند. از آن برای کنترل اینکه متن کاهش یابد، بیش از حد خارج شود یا شکل به‌صورت خودکار بازسازی شود، استفاده کنید. مثال زیر شکل را طوری تنظیم می‌کند که برای متن خود به‌صورت خودکار تغییر اندازه دهد و نتیجه را در «autofit_type.pptx» ذخیره می‌کند:

#include <DOM/IAutoShape.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/Presentation.h>
#include <DOM/TextAutofitType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
autoShape->get_TextFrame()->get_TextFrameFormat()->set_AutofitType(TextAutofitType::Shape);

presentation->Save(u"autofit_type.pptx", SaveFormat::Pptx);
presentation->Dispose();

برای شمارش خطوط پس از wrapping خودکار و مشاهدهٔ چگونگی تغییر عرض متن یا شکل، به Count Rendered Lines مراجعه کنید. شمارش خطوط به تنهایی نشان‌دهندهٔ overflow متن نیست.

تنظیم نقطه تثبیت فریم‌های متن

ITextFrameFormat::set_AnchoringType تعیین می‌کند متن به صورت عمودی داخل شکل چگونه موقعیت یابد، برای مثال در بالا، وسط یا پایین. مثال زیر متن را به پایین اولین شکل ثابت می‌کند و نتیجه را در «text_anchor.pptx» ذخیره می‌کند:

#include <DOM/IAutoShape.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/Presentation.h>
#include <DOM/TextAnchorType.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
autoShape->get_TextFrame()->get_TextFrameFormat()->set_AnchoringType(TextAnchorType::Bottom);

presentation->Save(u"text_anchor.pptx", SaveFormat::Pptx);
presentation->Dispose();

تنظیم تب‌بندی متن

از IParagraphFormat::set_DefaultTabSize و IParagraphFormat::get_Tabs برای پیکربندی توقف‌های تب در یک پاراگراف استفاده کنید. مثال زیر فاصلهٔ پیش‌فرض تب را به ۱۰۰ پوینت تنظیم می‌کند و یک توقف تب چپ‌چین را در ۳۰ پوینت اضافه می‌کند. این تنظیمات بر متنی که حاوی کاراکتر تب باشد اثر می‌گذارند.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITabCollection.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <DOM/TabAlignment.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"sample.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
paragraph->get_ParagraphFormat()->set_DefaultTabSize(100.0f);
paragraph->get_ParagraphFormat()->get_Tabs()->Add(30.0f, TabAlignment::Left);

presentation->Save(u"paragraph_tabs.pptx", SaveFormat::Pptx);
presentation->Dispose();

نتیجه:

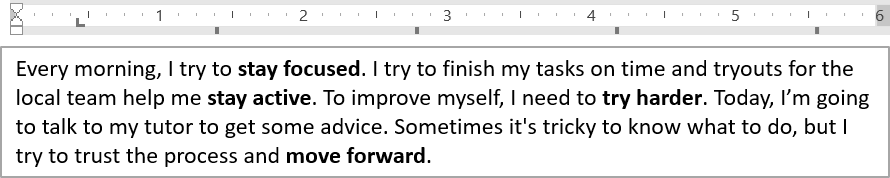

تب‌های پاراگراف

تنظیم زبان تصحیح

Aspose.Slides متد IBasePortionFormat::set_LanguageId را فراهم می‌کند که به شما امکان تنظیم زبان تصحیح برای یک بخش متن را می‌دهد. زبان تصحیح تعیین می‌کند کدام زبان برای بررسی املا و دستور زبان در PowerPoint استفاده شود.

مثال زیر به «presentation.pptx» که جعبه متن به عنوان اولین شکل در اسلاید اول دارد و حداقل یک پاراگراف دارد، نیاز دارد. محتوای اولین پاراگراف را به «1。」» تغییر می‌دهد، SimSun را به عنوان قلم تنظیم می‌کند و زبان تصحیح چینی ساده (zh-CN) را اختصاص می‌دهد. نتیجه در «proofing_language.pptx» ذخیره می‌شود:

#include <DOM/Fonts/FontData.h>
#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Portion.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>(u"presentation.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);

auto paragraph = autoShape->get_TextFrame()->get_Paragraph(0);
paragraph->get_Portions()->Clear();

auto font = System::MakeObject<FontData>(u"SimSun");

auto textPortion = System::MakeObject<Portion>();
auto portionFormat = textPortion->get_PortionFormat();
portionFormat->set_ComplexScriptFont(font);
portionFormat->set_EastAsianFont(font);
portionFormat->set_LatinFont(font);

// زبان تصحیح را به چینی ساده تنظیم کنید.
portionFormat->set_LanguageId(u"zh-CN");

textPortion->set_Text(u"1。");
paragraph->get_Portions()->Add(textPortion);

presentation->Save(u"proofing_language.pptx", SaveFormat::Pptx);
presentation->Dispose();

تنظیم زبان پیش‌فرض

از LoadOptions::set_DefaultTextLanguage برای تعریف زبان پیش‌فرض متنی که هنگام بارگذاری یا ایجاد ارائه ایجاد می‌شود استفاده کنید. مثال زیر یک ارائه با زبان پیش‌فرض متن انگلیسی آمریکایی ایجاد می‌کند، یک جعبه متن اضافه می‌کند و en-US را برای اولین بخش متن آن چاپ می‌کند.

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IShapeCollection.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/LoadOptions.h>
#include <DOM/Presentation.h>
#include <DOM/ShapeType.h>
#include <system/console.h>

using namespace Aspose::Slides;

auto loadOptions = System::MakeObject<LoadOptions>();
loadOptions->set_DefaultTextLanguage(u"en-US");

auto presentation = System::MakeObject<Presentation>(loadOptions);
auto slide = presentation->get_Slide(0);

// Add a new rectangle shape with text.
auto shape = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, 20.0f, 20.0f, 150.0f, 50.0f);
shape->get_TextFrame()->set_Text(u"Sample text");

// Check the first portion language.
auto portion = shape->get_TextFrame()->get_Paragraph(0)->get_Portion(0);
auto languageId = portion->get_PortionFormat()->get_LanguageId();
System::Console::WriteLine(languageId);

presentation->Dispose();

تنظیم سبک پیش‌فرض متن

برای اعمال قالب‌بندی پیش‌فرض متن در سطح ارائه، از IPresentation::get_DefaultTextStyle استفاده کنید.

مثال زیر قلم ۱۴ پوینت پررنگ را به‌عنوان پیش‌فرض برای پاراگراف‌های سطح بالایی در یک ارائهٔ جدید تنظیم می‌کند و در «default_text_style.pptx» ذخیره می‌شود. متن می‌تواند این پیش‌فرض‌ها را به ارث ببرد مگر اینکه قالب‌بندی خاص‌تری آن‌ها را بازنویسی کند.

#include <DOM/IParagraphFormat.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ITextStyle.h>
#include <DOM/NullableBool.h>
#include <DOM/Presentation.h>
#include <Export/SaveFormat.h>

using namespace Aspose::Slides;
using namespace Aspose::Slides::Export;

auto presentation = System::MakeObject<Presentation>();

// دریافت قالب پاراگراف سطح بالا.
auto paragraphFormat = presentation->get_DefaultTextStyle()->GetLevel(0);

if (paragraphFormat != nullptr)
{
    auto defaultPortionFormat = paragraphFormat->get_DefaultPortionFormat();
    defaultPortionFormat->set_FontHeight(14.0f);
    defaultPortionFormat->set_FontBold(NullableBool::True);
}

presentation->Save(u"default_text_style.pptx", SaveFormat::Pptx);
presentation->Dispose();

استخراج متن با اثر تمام حروف بزرگ

در PowerPoint، اعمال اثر All Caps باعث می‌شود متن حتی اگر به حروف کوچک نوشته شده باشد، در اسلاید با حروف بزرگ نمایش داده شود. وقتی چنین بخشی را با Aspose.Slides استخراج می‌کنید، کتابخانه متن را دقیقاً به همان صورتی که وارد شده است، برمی‌گرداند. برای مطابقت با متن نمایش داده‌شده، TextCapType را بررسی کنید و هنگام مقدار TextCapType::All باشد، رشتهٔ برگردانده‌شده را به حروف بزرگ تبدیل کنید.

این مثال به «sample2.pptx» که جعبه متن به عنوان اولین شکل در اسلاید اول دارد، نیاز دارد. اولین پاراگراف بخش اول آن شامل «Hello, Aspose!» با اثر All Caps اعمال‌شده است، همان‌طور که در زیر نشان داده شده است.

اثر تمام حروف بزرگ

مثال کد زیر نشان می‌دهد چگونه متن را با اثر All Caps استخراج کنیم:

#include <DOM/IAutoShape.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/IPortionFormatEffectiveData.h>
#include <DOM/ISlide.h>
#include <DOM/ITextFrame.h>
#include <DOM/Presentation.h>
#include <DOM/TextCapType.h>
#include <system/console.h>

using namespace Aspose::Slides;

auto presentation = System::MakeObject<Presentation>(u"sample2.pptx");
auto firstShape = presentation->get_Slide(0)->get_Shape(0);

auto autoShape = System::ExplicitCast<IAutoShape>(firstShape);
auto textPortion = autoShape->get_TextFrame()->get_Paragraph(0)->get_Portion(0);

auto originalText = textPortion->get_Text();
System::Console::WriteLine(u"Original text: " + originalText);

auto textFormat = textPortion->get_PortionFormat()->GetEffective();
if (textFormat->get_TextCapType() == TextCapType::All)
{
    auto uppercaseText = originalText.ToUpper();
    System::Console::WriteLine(u"All-Caps effect: " + uppercaseText);
}

presentation->Dispose();

خروجی:

Original text: Hello, Aspose!
All-Caps effect: HELLO, ASPOSE!

پرسش‌های متداول

چگونه متن در جدول موجود در یک اسلاید را ویرایش کنم؟

برای ویرایش متن در جدول موجود در یک اسلاید، از ITable استفاده کنید. از طریق ICell::get_TextFrame بر سلول‌ها تکرار کنید و هر سلول را به‌روز کنید و قالب‌بندی پاراگراف را از طریق IParagraph::get_ParagraphFormat تنظیم کنید.

چگونه رنگ گرادیان را بر متن در یک اسلاید PowerPoint اعمال کنم؟

برای اعمال رنگ گرادیان بر متن، از IBasePortionFormat::get_FillFormat استفاده کنید. IFillFormat::set_FillType را به FillType::Gradient تنظیم کنید و نقاط توقف، جهت و شفافیت گرادیان را پیکربندی کنید.

ویژگی مرتبط: قالب‌بندی متن در اسلایدها.
