مدیریت پاراگرافهای متنی پاورپوینت در اندروید
بررسی کلی
Aspose.Slides برای Android از طریق Java متن را به عنوان یک سلسلهمراتب از فریمهای متنی، پاراگرافها و بخشها نمایش میدهد:
- ITextFrame نمایانگر مخزن متن در یک شکل است و دسترسی به مجموعه پاراگرافهای آن را فراهم میکند.
- IParagraph نمایانگر یک پاراگراف در یک فریم متنی است و دسترسی به بخشها و قالببندی سطح پاراگراف را فراهم میکند.
- IPortion نمایانگر یک ران متن درون یک پاراگراف است. هر بخش میتواند متن و قالببندی سطح کاراکتر مخصوص به خود را داشته باشد.
بنابراین یک پاراگراف میتواند متنی با فونتها، رنگها، اندازهها و سایر قالببندیهای مختلف را با استفاده از چندین بخش داشته باشد.
ایجاد و قالببندی پاراگرافها
پاراگرافها را در فریم متنی یک شکل ایجاد کنید و از بخشها برای قالببندی رانهای متنی جداگانه استفاده کنید. این بخش نشان میدهد چگونه چندین بخش را در هر پاراگراف ترکیب کرده و رنگها، اندازههای فونت و سبکهای مختلف را اعمال کنید.
ایجاد پاراگرافها با چندین بخش
مثال زیر برای Android از طریق Java سه پاراگراف ایجاد میکند که هر کدام شامل سه ران متنی در مجموعهای هستند که توسط IParagraph.getPortions برگردانده میشود. این مثال پاراگراف پیشفرض و بخش خالی آن را مجدداً استفاده میکند، سپس پاراگرافها و بخشهای باقیمانده را اضافه میکند. قالببندی از طریق IPortion.getPortionFormat انجام میشود: بخش اول در هر پاراگراف قرمز، بولد و با اندازه 15 پوینت است؛ بخش دوم آبی، ایتالیک و با اندازه 18 پوینت؛ بخش سوم قالببندی پیشفرض خود را حفظ میکند:
import com.aspose.slides.*;
import android.graphics.Color;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 150, 300, 150);
ITextFrame textFrame = shape.getTextFrame();
IParagraph firstParagraph = textFrame.getParagraphs().get_Item(0);
firstParagraph.getPortions().add(new Portion());
firstParagraph.getPortions().add(new Portion());
IParagraph secondParagraph = new Paragraph();
secondParagraph.getPortions().add(new Portion());
secondParagraph.getPortions().add(new Portion());
secondParagraph.getPortions().add(new Portion());
textFrame.getParagraphs().add(secondParagraph);
IParagraph thirdParagraph = new Paragraph();
thirdParagraph.getPortions().add(new Portion());
thirdParagraph.getPortions().add(new Portion());
thirdParagraph.getPortions().add(new Portion());
textFrame.getParagraphs().add(thirdParagraph);
int paragraphCount = textFrame.getParagraphs().getCount();
for (int paragraphIndex = 0; paragraphIndex < paragraphCount; paragraphIndex++) {
IParagraph paragraph = textFrame.getParagraphs().get_Item(paragraphIndex);
int portionCount = paragraph.getPortions().getCount();
for (int portionIndex = 0; portionIndex < portionCount; portionIndex++) {
IPortion portion = paragraph.getPortions().get_Item(portionIndex);
portion.setText("Portion " + (paragraphIndex + 1) + "." + (portionIndex + 1));
if (portionIndex == 0) {
portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.RED);
portion.getPortionFormat().setFontBold(NullableBool.True);
portion.getPortionFormat().setFontHeight(15);
} else if (portionIndex == 1) {
portion.getPortionFormat().getFillFormat().setFillType(FillType.Solid);
portion.getPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLUE);
portion.getPortionFormat().setFontItalic(NullableBool.True);
portion.getPortionFormat().setFontHeight(18);
}
}
}
presentation.save("paragraphs_with_portions.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
ایجاد فهرستهای بولتدار و شمارهدار
متن پاراگرافها را به فهرستهای دارای نماد، عدد یا تصویر سفارشی سازماندهی کنید. مثالهای این بخش شامل قالببندی بولت، فهرستهای چندسطحی و مقداردهی اولیه عددی سفارشی است.
ایجاد فهرست بولتدار یا شمارهدار
بولتها و شمارهگذاری آیتمهای مربوطه را برای اسکن راحتتر میکند. در Aspose.Slides تنظیمات فهرست از طریق IBulletFormat تعریف میشود.
این مثال Android از طریق Java یک بولت نمادین و یک آیتم شمارهدار را به همان فریم متنی اضافه میکند. IBulletFormat.setType نوع بولت را انتخاب میکند، در حالی که IBulletFormat.setChar نماد را فراهم میکند و IBulletFormat.setNumberedBulletStyle سبک شمارهگذاری را انتخاب میکند. هر دو آیتم از بولتهای سیاه با ارتفاع 100 درصد و تورفتگی پاراگراف 25 پوینت استفاده میکنند:
import com.aspose.slides.*;
import android.graphics.Color;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getParagraphs().clear();
Paragraph symbolParagraph = new Paragraph();
symbolParagraph.setText("Welcome to Aspose.Slides");
symbolParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
symbolParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
symbolParagraph.getParagraphFormat().setIndent(25);
symbolParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
symbolParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
symbolParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
symbolParagraph.getParagraphFormat().getBullet().setHeight(100);
textFrame.getParagraphs().add(symbolParagraph);
Paragraph numberedParagraph = new Paragraph();
numberedParagraph.setText("This is a numbered item");
numberedParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
numberedParagraph.getParagraphFormat().getBullet().setNumberedBulletStyle(NumberedBulletStyle.BulletCircleNumWDBlackPlain);
numberedParagraph.getParagraphFormat().setIndent(25);
numberedParagraph.getParagraphFormat().getBullet().getColor().setColorType(ColorType.RGB);
numberedParagraph.getParagraphFormat().getBullet().getColor().setColor(Color.BLACK);
numberedParagraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True);
numberedParagraph.getParagraphFormat().getBullet().setHeight(100);
textFrame.getParagraphs().add(numberedParagraph);
presentation.save("bulleted_and_numbered_list.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
استفاده از بولتهای تصویری
بولتهای تصویری به شما امکان میدهند به جای نماد یا عدد از یک تصویر سفارشی استفاده کنید.
این مثال Android از طریق Java یک تصویر را به مجموعه تصاویر ارائه به عنوان یک IPPImage اضافه میکند و از آن به عنوان بولت پاراگراف استفاده میکند. برای استفاده از بولت تصویر، IBulletFormat.setType فراخوانی میشود و تصویر از طریق IBulletFormat.getPicture اختصاص مییابد. IBulletFormat.setHeight بر روی 100 درصد تنظیم میشود تا اندازه بولت نسبت به متن پاراگراف تنظیم شود:
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IImage bulletImage = Images.fromFile("bullets.png");
IPPImage presentationImage;
try {
presentationImage = presentation.getImages().addImage(bulletImage);
} finally {
bulletImage.dispose();
}
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getParagraphs().clear();
Paragraph paragraph = new Paragraph();
paragraph.setText("Welcome to Aspose.Slides");
paragraph.getParagraphFormat().getBullet().setType(BulletType.Picture);
paragraph.getParagraphFormat().getBullet().getPicture().setImage(presentationImage);
paragraph.getParagraphFormat().getBullet().setHeight(100);
textFrame.getParagraphs().add(paragraph);
presentation.save("picture_bullet.pptx", SaveFormat.Pptx);
presentation.save("picture_bullet.ppt", SaveFormat.Ppt);
} finally {
presentation.dispose();
}
ایجاد فهرست چندسطحهای
İParagraphFormat.setDepth را تنظیم کنید تا پاراگرافها در سطوح مختلف یک فهرست قرار گیرند. سطح بالایی عمق 0 دارد.
این مثال Android از طریق Java مقادیر IParagraphFormat.setDepth را از 0 تا 3 به چهار پاراگراف اختصاص میدهد و یک سلسلهمراتب درون یک فریم متنی ایجاد میکند. هر پاراگراف از بولت نمادین استفاده میکند؛ IBulletFormat.setChar بهصورت متناوب بین یک بولت گرد و یک خط تیره برای تمایز سطوح مجاور چرخیده میشود:
import com.aspose.slides.*;
import android.graphics.Color;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getParagraphs().clear();
IParagraph firstParagraph = new Paragraph();
firstParagraph.setText("Content");
firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
firstParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
firstParagraph.getParagraphFormat().setDepth((short) 0);
IParagraph secondParagraph = new Paragraph();
secondParagraph.setText("Second level");
secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
secondParagraph.getParagraphFormat().getBullet().setChar('-');
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
secondParagraph.getParagraphFormat().setDepth((short) 1);
IParagraph thirdParagraph = new Paragraph();
thirdParagraph.setText("Third level");
thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
thirdParagraph.getParagraphFormat().getBullet().setChar((char) 0x2022);
thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
thirdParagraph.getParagraphFormat().setDepth((short) 2);
IParagraph fourthParagraph = new Paragraph();
fourthParagraph.setText("Fourth level");
fourthParagraph.getParagraphFormat().getBullet().setType(BulletType.Symbol);
fourthParagraph.getParagraphFormat().getBullet().setChar('-');
fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
fourthParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
fourthParagraph.getParagraphFormat().setDepth((short) 3);
textFrame.getParagraphs().add(firstParagraph);
textFrame.getParagraphs().add(secondParagraph);
textFrame.getParagraphs().add(thirdParagraph);
textFrame.getParagraphs().add(fourthParagraph);
presentation.save("multilevel_list.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
شروع موارد فهرست شمارهدار با مقادیر دلخواه
از IBulletFormat.setNumberedBulletStartWith برای تنظیم عدد اولیه نمایشدادهشده برای یک پاراگراف شمارهدار استفاده کنید.
این مثال Android از طریق Java IBulletFormat.setType را برای استفاده از شمارهگذاری در سه پاراگراف تنظیم میکند و مقادیر IBulletFormat.setNumberedBulletStartWith را به ترتیب 2، 3 و 7 اختصاص میدهد. مقدار شروع برای هر پاراگراف بهصورت جداگانه تنظیم میشود تا اعداد نمایشدادهشده مقادیر میانی را پرش کنند:
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 200, 200, 400, 200);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getParagraphs().clear();
Paragraph firstParagraph = new Paragraph();
firstParagraph.setText("Start at 2");
firstParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
firstParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 2);
textFrame.getParagraphs().add(firstParagraph);
Paragraph secondParagraph = new Paragraph();
secondParagraph.setText("Start at 3");
secondParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
secondParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 3);
textFrame.getParagraphs().add(secondParagraph);
Paragraph thirdParagraph = new Paragraph();
thirdParagraph.setText("Start at 7");
thirdParagraph.getParagraphFormat().getBullet().setType(BulletType.Numbered);
thirdParagraph.getParagraphFormat().getBullet().setNumberedBulletStartWith((short) 7);
textFrame.getParagraphs().add(thirdParagraph);
presentation.save("custom_numbered_list.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
کنترل چیدمان پاراگراف و ویژگیهای انتهایی
حاشیهها و تورفتگیهای پاراگراف را تنظیم کنید تا موقعیت خط اول و خطوط بستهشده را کنترل کنید. همچنین میتوانید علامت انتهای پاراگراف را جدا از بخشهای متنی قابل مشاهده قالببندی کنید.

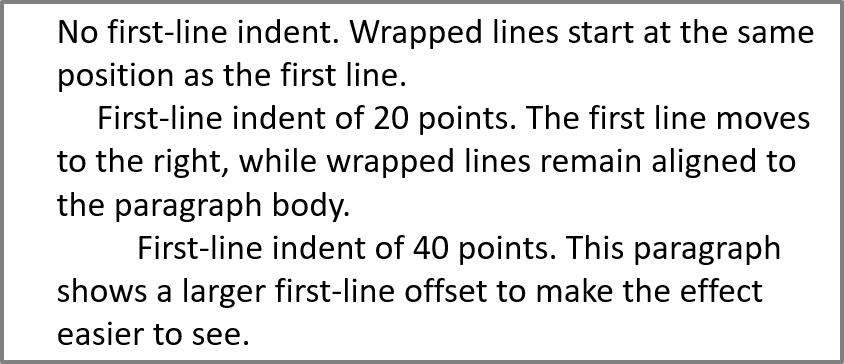

تنظیم تورفتگی خط اول
از متد IParagraphFormat.setIndent برای کنترل تورفتگی خط اول یک پاراگراف استفاده کنید. این تنظیم تنها خط اول را نسبت به حاشیه چپ پاراگراف جابجا میکند. مقدار مثبت خط اول را به سمت راست حرکت میدهد، در حالی که خطوط باقیمانده به بدنه پاراگراف تراز میشوند.
از IParagraphFormat.setMarginLeft وقتی نیاز به جابهجایی کل پاراگراف دارید استفاده کنید. از IParagraphFormat.setIndent وقتی فقط خط اول را میخواهید جابجا کنید.
مثال زیر سه پاراگراف را با IParagraphFormat.setMarginLeft برابر 20 پوینت و مقادیر IParagraphFormat.setIndent به ترتیب 0، 20 و 40 پوینت تنظیم میکند. خطوط اول در افستهای بزرگتر شروع میشوند، در حالی که خطوط بستهشده همان حاشیه چپ را حفظ میکنند:
import com.aspose.slides.*;
import android.graphics.Color;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
shape.getFillFormat().setFillType(FillType.NoFill);
shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
textFrame.getParagraphs().clear();
Paragraph firstParagraph = new Paragraph();
firstParagraph.setText("No first-line indent. Wrapped lines start at the same position as the first line.");
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
firstParagraph.getParagraphFormat().setMarginLeft(20f);
firstParagraph.getParagraphFormat().setIndent(0f);
Paragraph secondParagraph = new Paragraph();
secondParagraph.setText("First-line indent of 20 points. The first line moves to the right, while wrapped lines remain aligned to the paragraph body.");
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
secondParagraph.getParagraphFormat().setMarginLeft(20f);
secondParagraph.getParagraphFormat().setIndent(20f);
Paragraph thirdParagraph = new Paragraph();
thirdParagraph.setText("First-line indent of 40 points. This paragraph shows a larger first-line offset to make the effect easier to see.");
thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
thirdParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
thirdParagraph.getParagraphFormat().setMarginLeft(20f);
thirdParagraph.getParagraphFormat().setIndent(40f);
textFrame.getParagraphs().add(firstParagraph);
textFrame.getParagraphs().add(secondParagraph);
textFrame.getParagraphs().add(thirdParagraph);
presentation.save("paragraph_indent.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
نتیجه:

تنظیم تورفتگی معلق
تورفتگی معلق یک چیدمان پاراگراف است که در آن خط اول نسبت به خطوط باقیمانده به سمت چپ شروع میشود. در Aspose.Slides این اثر را با ویژگی IParagraphFormat.setIndent ایجاد میکنید. مقدار Indent را به مقدار منفی تنظیم کنید تا خط اول نسبت به بدنه پاراگراف به چپ حرکت کند.
در عمل، IParagraphFormat.setMarginLeft موقعیت چپ بدنه پاراگراف را تعیین میکند و IParagraphFormat.setIndent موقعیت خط اول را نسبت به آن حاشیه تعیین میکند. برای ایجاد تورفتگی معلق، مقدار MarginLeft را مثبت و Indent را منفی تنظیم کنید.
این قالببندی برای کتابشناسیها، مراجع، ورودیهای واژگان و سایر پاراگرافهایی که خطوط بستهشده باید زیر بدنه پاراگراف تراز شوند، مفید است.
مثال Android از طریق Java مقادیر IParagraphFormat.setMarginLeft را به 40 و 60 پوینت با مقادیر IParagraphFormat.setIndent به ترتیب -20 و -30 پوینت جفت میکند. در هر پاراگراف، خط اول به سمت چپ خطوط بستهشده شروع میشود؛ پاراگراف دوم تورفتگی معلق عمیقتری دارد:
import com.aspose.slides.*;
import android.graphics.Color;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 420, 220);
shape.getFillFormat().setFillType(FillType.NoFill);
shape.getLineFormat().getFillFormat().setFillType(FillType.Solid);
shape.getLineFormat().getFillFormat().getSolidFillColor().setColor(Color.GRAY);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.Shape);
textFrame.getParagraphs().clear();
Paragraph firstParagraph = new Paragraph();
firstParagraph.setText("A hanging indent is created by combining a positive left margin with a negative indent. The first line starts to the left, while wrapped lines align with the paragraph body.");
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
firstParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
firstParagraph.getParagraphFormat().setMarginLeft(40f);
firstParagraph.getParagraphFormat().setIndent(-20f);
Paragraph secondParagraph = new Paragraph();
secondParagraph.setText("This second example uses a deeper hanging indent so the difference between the first line and the wrapped lines is easier to compare.");
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid);
secondParagraph.getParagraphFormat().getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK);
secondParagraph.getParagraphFormat().setMarginLeft(60f);
secondParagraph.getParagraphFormat().setIndent(-30f);
textFrame.getParagraphs().add(firstParagraph);
textFrame.getParagraphs().add(secondParagraph);
presentation.save("hanging_indent.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}

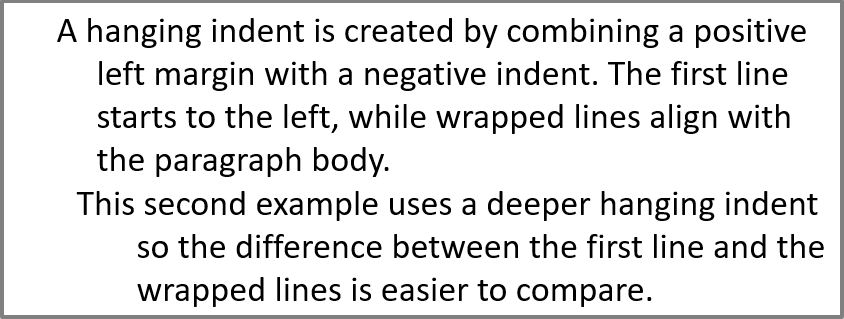

نتیجه:

تنظیم ویژگیهای انتهای اجرای پاراگراف
متد IParagraph.setEndParagraphPortionFormat قالببندی علامت انتهای پاراگراف را کنترل میکند. مثال زیر یک PortionFormat با IBasePortionFormat.setFontHeight برابر 48 پوینت و IBasePortionFormat.setLatinFont برابر Times New Roman ایجاد میکند. این قالب به علامت انتهای پاراگراف دوم اختصاص مییابد و بخشهای متنی قابل مشاهده بدون تغییر میمانند:
import com.aspose.slides.*;
Presentation presentation = new Presentation("Test.pptx");
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, 200, 250);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getParagraphs().clear();
Paragraph firstParagraph = new Paragraph();
firstParagraph.getPortions().add(new Portion("Sample text"));
Paragraph secondParagraph = new Paragraph();
secondParagraph.getPortions().add(new Portion("Sample text 2"));
PortionFormat endParagraphFormat = new PortionFormat();
endParagraphFormat.setFontHeight(48);
endParagraphFormat.setLatinFont(new FontData("Times New Roman"));
secondParagraph.setEndParagraphPortionFormat(endParagraphFormat);
textFrame.getParagraphs().add(firstParagraph);
textFrame.getParagraphs().add(secondParagraph);
presentation.save("end_paragraph_format.pptx", SaveFormat.Pptx);
} finally {
presentation.dispose();
}
شمارش خطوط رندر شده
برای قوانین پاراگراف که بر بسته شدن خودکار و نقطهگذاری در انتهای خطوط تأثیر میگذارند، به بخشهای Control Line Breaking و Control Hanging Punctuation مراجعه کنید.
از IParagraph.getLinesCount برای شمارش خطوطی که یک پاراگراف پس از چیدمان متن اشغال میکند استفاده کنید؛ این شامل بسته شدن خودکار میشود. این روش برای بررسی طول متن و چیدمان در قالبهای ارائه مفید است.
یک پاراگراف یک مورد در ITextFrame.getParagraphs است و میتواند چندین خط رندر شده را اشغال کند. یک شکست خط صریح داخل پاراگراف یک خط جدید ایجاد میکند بدون اینکه پاراگراف دیگری ساخته شود. بسته شدن خودکار خطوط را بر اساس عرض موجود ایجاد میکند بدون اینکه شکست خط صریحی به متن افزوده شود. بنابراین شمارش پاراگرافها یا کاراکترهای شکست خط، شمارش خطوط رندر شده را نمیدهد.
مثال زیر یک شکل متنی ایجاد میکند، خطوط آن را میشمارد، شکل را باریک میکند و سپس متن را با رشتهای کوتاهتر جایگزین میکند. این مثال بسته شدن متن را با ITextFrameFormat.setWrapText فعال میکند و با ITextFrameFormat.setAutofitType حالت خودکار‑تناسب را غیرفعال میکند تا عرض شکل بسته شدن را کنترل کند بدون اینکه بهصورت خودکار متن یا شکل را کوچک کند. هر اندازهگیری از IParagraph.getLinesCount استفاده میکند. ابعاد شکل بر حسب پوینت است. در نهایت مثال یک پاراگراف دیگر اضافه میکند و مجموع شمارش خطوط را در فریم متنی جمع میزند.
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 50, 50, 400, 200);
ITextFrame textFrame = shape.getTextFrame();
textFrame.getTextFrameFormat().setWrapText(NullableBool.True);
textFrame.getTextFrameFormat().setAutofitType(TextAutofitType.None);
IParagraph paragraph = textFrame.getParagraphs().get_Item(0);
paragraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
paragraph.setText("This text demonstrates how automatic wrapping changes the number of rendered lines.");
System.out.println("Original width: " + paragraph.getLinesCount());
shape.setWidth(150);
System.out.println("Narrower shape: " + paragraph.getLinesCount());
paragraph.setText("Short text.");
System.out.println("Shorter text: " + paragraph.getLinesCount());
Paragraph secondParagraph = new Paragraph();
secondParagraph.setText("Another paragraph.");
secondParagraph.getParagraphFormat().getDefaultPortionFormat().setFontHeight(20);
textFrame.getParagraphs().add(secondParagraph);
int totalLineCount = 0;
for (IParagraph currentParagraph : textFrame.getParagraphs()) {
totalLineCount += currentParagraph.getLinesCount();
}
System.out.println("Total lines in the text frame: " + totalLineCount);
} finally {
presentation.dispose();
}
با این متن و این ابعاد، باریک کردن شکل شمارش خطوط را افزایش میدهد، در حالی که جایگزینی متن با رشته کوتاه آن را کاهش میدهد. شمارش دقیق میتواند بسته به در دسترس بودن فونت و جایگزینی، اندازه فونت، حاشیهها، تورفتگی، بسته شدن و تنظیمات خودکار‑تناسب متفاوت باشد. هنگام بررسی یک قالب، از فونتها و تنظیمات چیدمان موردنظر برای محیط هدف استفاده کنید.
تنها شمارش خطوط تعیینکننده این نیست که متن از محفظهاش سرریز میشود یا نه. ارتفاع موجود، ارتفاع خطوط، فاصله پاراگراف و خط، و رفتار خودکار‑تناسب نیز مهماند؛ حتی یک خط میتواند عرض موجود را در صورتی که بسته شدن غیرفعال باشد، تجاوز کند.
واردات و صادرات محتوای پاراگراف
از HTML برای آوردن متن به یک ارائه یا صادرات پاراگرافهای موجود برای استفاده خارج از آن استفاده کنید. این بخش همچنین نشان میدهد چگونه پاراگرافهای جداگانه را به عنوان تصویر رندر کنید، از جمله پاراگرافهای موجود در سلولهای جدول.
وارد کردن متن HTML به پاراگرافها
از ParagraphCollection.addFromHtml برای تبدیل نشانهگذاری HTML به پاراگرافها و بخشها در یک فریم متنی استفاده کنید.
این مثال Android از طریق Java HTML را از یک فایل میخواند و نشانهگذاری را به ParagraphCollection.addFromHtml میفرستد. این مثال پاراگراف پیشفرض فریم متنی را پاک میکند تا فریم تنها شامل محتوای وارد شده باشد. شکل مستطیلی حاشیه 10 پوینت در هر طرف اسلاید باقی میگذارد:
import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
float shapeWidth = (float) presentation.getSlideSize().getSize().getWidth() - 20;
float shapeHeight = (float) presentation.getSlideSize().getSize().getHeight() - 20;
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 10, 10, shapeWidth, shapeHeight);
shape.getFillFormat().setFillType(FillType.NoFill);
shape.getTextFrame().getParagraphs().clear();
try {
byte[] htmlBytes = Files.readAllBytes(Paths.get("file.html"));
String html = new String(htmlBytes, StandardCharsets.UTF_8);
shape.getTextFrame().getParagraphs().addFromHtml(html);
presentation.save("html_text.pptx", SaveFormat.Pptx);
} catch (IOException exception) {
System.out.println("The HTML file could not be read: " + exception.getMessage());
}
} finally {
presentation.dispose();
}
صادرات متن پاراگراف به HTML
از ParagraphCollection.exportToHtml برای صادرات محدودهای انتخابی از پاراگرافها به HTML استفاده کنید. هنگام استفاده مجدد از متن ارائه در یک وبسایت، ممکن است بخواهید تأکید محلی را بدون انتقال فونت، اندازه یا سبکهای جعبه متن ارائه حفظ کنید. با تنظیم TextToHtmlConversionOptions.setTextInheritanceLimit میتوانید کنترل کنید که خروجی تا چه حد از وراثت قالببندی پیروی کند.
فایل ارائه نمونه را دانلود کنید (the sample presentation) و در پوشه کاری برنامه قرار دهید. اسلاید اول آن یک شکل متنی با متن «Inherited text; explicit red 18pt» دارد. ورودی بهصراحت چندین سطح قالببندی استفاده میکند:
- سبک متنی پیشفرض ارائه، Calibri با اندازه 28 pt را فراهم میکند.
- سبک متنی سطح اول فریم متنی، متن آبی و ایتالیک را فراهم میکند.
- پاراگراف بهصراحت متن بولد را تنظیم میکند.
- بخش دوم، «explicit red 18pt»، بهصراحت متن قرمز و اندازه 18 pt را تنظیم میکند.
مثال کامل زیر همان پاراگرافها را سه بار صادر میکند. TextToHtmlConversionOptions به متد صادرات پاس داده میشود و هر نتیجه به عنوان یک فایل HTML UTF‑8 جداگانه نوشته میشود:
import com.aspose.slides.*;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Paths;
Presentation presentation = new Presentation("text-inheritance.pptx");
try {
IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);
if (shape instanceof IAutoShape) {
IAutoShape textShape = (IAutoShape) shape;
ITextFrame textFrame = textShape.getTextFrame();
if (textFrame != null) {
IParagraphCollection paragraphs = textFrame.getParagraphs();
int[] modes = { TextInheritanceLimit.All, TextInheritanceLimit.TextBox, TextInheritanceLimit.ParagraphOnly };
String[] fileNames = { "All.html", "TextBox.html", "ParagraphOnly.html" };
for (int i = 0; i < modes.length; i++) {
TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
options.setTextInheritanceLimit(modes[i]);
String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
byte[] htmlBytes = html.getBytes(StandardCharsets.UTF_8);
try {
Files.write(Paths.get(fileNames[i]), htmlBytes);
} catch (IOException exception) {
System.out.println("The HTML file could not be written: " + exception.getMessage());
}
}
} else {
System.out.println("The first shape does not contain a text frame.");
}
} else {
System.out.println("The first shape is not a text shape.");
}
} finally {
presentation.dispose();
}
HTML تولیدی شامل CSS زیر برای اولین بخش، «Inherited text; » است. جدول موارد مربوطه را فهرست میکند؛ سایر خصوصیات تولید شده برای وضوح حذف شدهاند.
| خروجی | CSS مربوط به اولین بخش | ظاهر |
|---|---|---|
All.html |
font-family:'Calibri'; font-size:28pt; color:#0000ff; font-style:italic; font-weight:bold |
متن آبی، بولد، ایتالیک با 28 pt در Calibri، اگر آن فونت در دسترس باشد. |
TextBox.html |
color:#0000ff; font-style:italic; font-weight:bold |
متن آبی، بولد، ایتالیک؛ صفحه یا مرورگر فونت و اندازه را فراهم میکند. |
ParagraphOnly.html |
font-weight:bold |
متن بولد؛ صفحه یا مرورگر فونت، اندازه، رنگ و سبک ایتالیک را فراهم میکند. |
بخش دوم color:#ff0000، font-size:18pt و font-weight:bold را در هر سه خروجی حفظ میکند. همچنین ایتالیک را در All و TextBox حفظ میکند، اما در ParagraphOnly ندارد. محدود کردن وراثت به این معناست که قالببندی صریحاً به یک پاراگراف یا بخش اختصاص داده شده حذف نمیشود.
فایلها را در یک مرورگر یکسان باز کنید تا آنها را مقایسه کنید. در دو حالت محدود، ویژگیهای CSS حذفشده توسط استایلهای صفحه مقصد یا مقادیر پیشفرض مرورگر تکمیل میشوند، بنابراین ظاهر نهایی بستگی به مکانی دارد که HTML استفاده میشود.
تولید یک قطعه کلیپبورد HTML
از TextToHtmlConversionOptions.setAddClipboardFragmentHeader برای انتخاب خروجی از IParagraphCollection.exportToHtml استفاده کنید. با مقدار false، متد HTML معمولی بر میگرداند. با مقدار true، رشته برگرداندهشده با یک سرآیند کلیپبورد ویندوز شروع میشود. فیلدهای StartHTML و EndHTML افستهای بایتی UTF‑8 HTML را ارائه میدهند، در حالی که StartFragment و EndFragment محتوای قابل چسباندن را شناسایی میکنند.
این مثال دو پاراگراف قالببندیشده را بهعنوان HTML معمولی (html) و بهعنوان قطعه کلیپبورد HTML (clipboardHtml) صادر میکند. برنامههایی که فرمت کلیپبورد HTML ویندوز را میپذیرند میتوانند مستقیماً از این قطعه استفاده کنند. اگر API کلیپبورد بایتهای خام را انتظار دارد، قطعه را بهعنوان UTF‑8 بدون نشانه ترتیب بایت (BOM) رمزگذاری کنید.
import com.aspose.slides.*;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
IAutoShape shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 0, 0, 400, 100);
IParagraphCollection paragraphs = shape.getTextFrame().getParagraphs();
paragraphs.clear();
paragraphs.addFromHtml("<p>Status: <b>Ready</b></p><p><i>Next steps</i></p>");
TextToHtmlConversionOptions options = new TextToHtmlConversionOptions();
options.setAddClipboardFragmentHeader(false);
String html = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
options.setAddClipboardFragmentHeader(true);
String clipboardHtml = paragraphs.exportToHtml(0, paragraphs.getCount(), options);
} finally {
presentation.dispose();
}
رندر یک پاراگراف به عنوان تصویر
IParagraph.getImage یک پاراگراف جداگانه را مستقیماً رندر میکند و یک IImage برمیگرداند. نتیجه را با IImage.save در یک فایل یا جریان ذخیره کنید. نیازی به رندر شکل حاوی یا برش بیتمپ بهصورت دستی ندارید.
IParagraph.getImage میتواند null برگرداند اگر پاراگراف در مجموعه والد یافت نشود، مرزهای رندر معتبری نداشته باشد یا رندر نشود. قبل از ذخیره نتیجه را بررسی کنید و پس از استفاده تصویر بازگشتی را آزاد کنید.
رندر یک پاراگراف با مقیاس پیشفرض

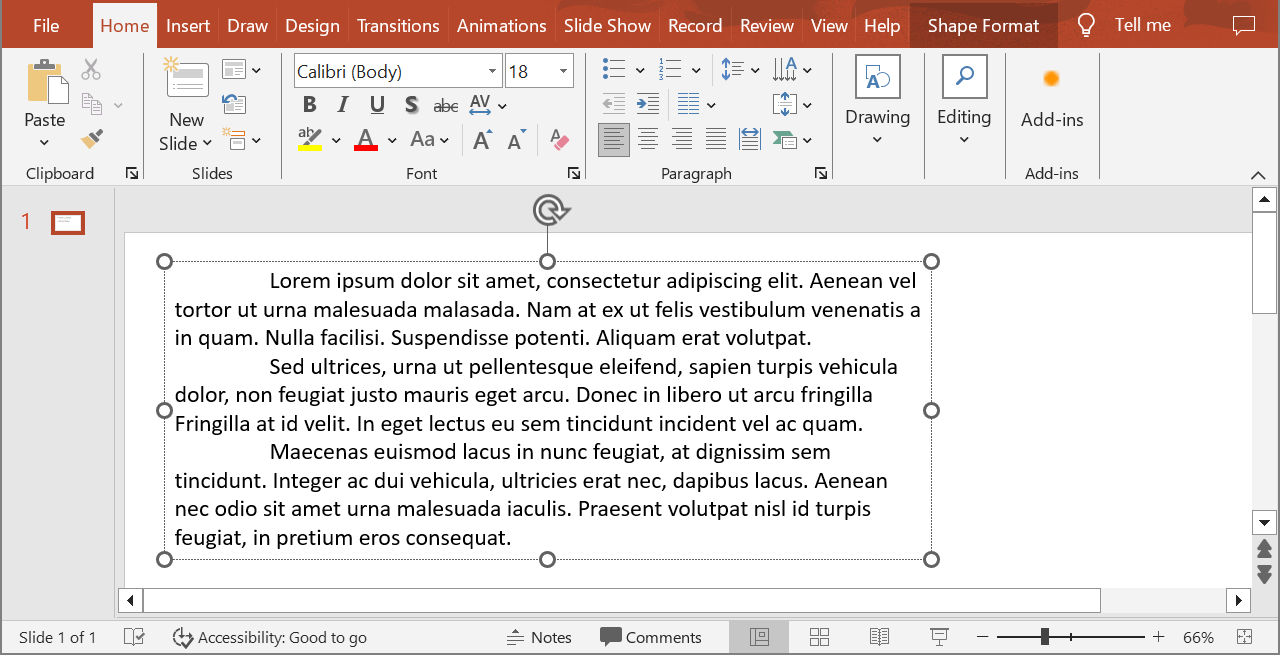

این مثال یک ارائه با یک اسلاید دارد که اولین شکل آن یک جعبه متن حاوی سه پاراگراف است.

مثال زیر پاراگراف دوم را در ایندکس 1 انتخاب میکند و بدون پارامترهای مقیاس IParagraph.getImage را فراخوانی میکند. بررسی میکند که شکل پاراگراف موردنظر را دارد و رندر تصویر را قبل از فراخوانی IImage.save برای ذخیره به فرمت PNG بررسی میکند. بلاک finally تصویر را پس از استفاده آزاد میکند.
import com.aspose.slides.*;
Presentation presentation = new Presentation("sample.pptx");
try {
IShape shape = presentation.getSlides().get_Item(0).getShapes().get_Item(0);
if (shape instanceof IAutoShape) {
IAutoShape textShape = (IAutoShape) shape;
ITextFrame textFrame = textShape.getTextFrame();
if (textFrame != null && textFrame.getParagraphs().getCount() > 1) {
IParagraph paragraph = textFrame.getParagraphs().get_Item(1);
IImage paragraphImage = paragraph.getImage();
if (paragraphImage != null) {
try {
paragraphImage.save("paragraph.png", ImageFormat.Png);
} finally {
paragraphImage.dispose();
}
} else {
System.out.println("The paragraph could not be rendered.");
}
} else {
System.out.println("The expected paragraph was not found.");
}
} else {
System.out.println("The first shape is not a text shape.");
}
} finally {
presentation.dispose();
}

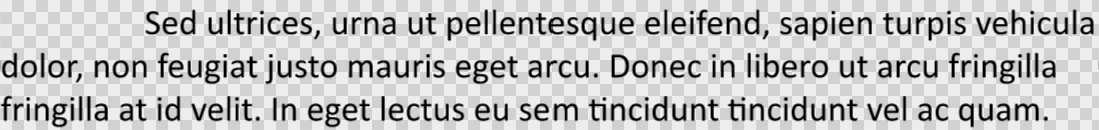

نتیجه:

رندر یک پاراگراف در سلول جدول با مقیاسبندی
از overload IParagraph.getImage که پارامترهای float scaleX و float scaleY را میپذیرد استفاده کنید تا عوامل مقیاس افقی و عمودی را تنظیم کنید. مثال زیر یک جدول ایجاد میکند، پاراگراف را در اولین سلول با دو برابر عرض و ارتفاع پیشفرض رندر میکند و نتیجه را بهعنوان تصویر PNG ذخیره میکند.
import com.aspose.slides.*;
float scaleX = 2f;
float scaleY = 2f;
Presentation presentation = new Presentation();
try {
ISlide slide = presentation.getSlides().get_Item(0);
ITable table = slide.getShapes().addTable(50, 50, new double[] { 300 }, new double[] { 80 });
IParagraph paragraph = table.get_Item(0, 0).getTextFrame().getParagraphs().get_Item(0);
paragraph.setText("Text in a table cell");
IImage paragraphImage = paragraph.getImage(scaleX, scaleY);
if (paragraphImage != null) {
try {
paragraphImage.save("table_paragraph.png", ImageFormat.Png);
} finally {
paragraphImage.dispose();
}
} else {
System.out.println("The paragraph could not be rendered.");
}
} finally {
presentation.dispose();
}
یک عامل مقیاس 1 آن محور را در اندازه پیکسل پیشفرض نگه میدارد. برای مثال، 2 برای هر دو عامل تصویری تولید میکند که عرض و ارتفاع آن تقریباً دو برابر ابعاد پیشفرض است و چهار برابر پیکسل دارد. عوامل بزرگتر عموماً متن را برای زوم یا خروجی با وضوح بالا واضحتر میکنند، اما مصرف حافظه و اندازه فایل را نیز افزایش میدهند. عوامل زیر 1 تصاویر کوچکتر با جزئیات کمتر تولید میکنند. برای حفظ نسبت ابعاد پاراگراف از عوامل برابر استفاده کنید؛ عوامل متفاوت افقی و عمودی خروجی را بهصورت مستقل کش میدهند.
رندر کل شکل با IShape.getImage زمانی مفید است که خروجی باید پر کردن، حاشیه یا سایر زمینههای بصری شکل را شامل شود. برای تصویر فقط پاراگراف، از IParagraph.getImage استفاده کنید.
سوالات متداول
آیا میتوانم بسته شدن خطوط داخل یک فریم متنی را کاملاً غیرفعال کنم؟
بله. با تنظیم ITextFrameFormat.setWrapText بسته شدن خطوط را غیرفعال کنید تا خطوط در لبههای فریم متنی شکسته نشوند.
چگونه میتوانم مرزهای دقیق روی اسلاید یک پاراگراف خاص را دریافت کنم؟
از IParagraph.getRect برای دریافت مستطیل محدوده پاراگراف استفاده کنید. IPortion.getRect مرزهای یک بخش جداگانه را فراهم میکند.
محل تنظیم تراز پاراگراف (چپ، راست، وسط یا توجیه) کجا است؟
IParagraphFormat.setAlignment یک تنظیم سطح پاراگراف است و بر تمام پاراگراف اعمال میشود، صرفنظر از قالببندی بخشهای جداگانه.
برای تراز عمودی بخشهای دارای اندازههای فونت مختلف در هر خط، به Align Fonts Within a Line مراجعه کنید.
آیا میتوانم زبان اصلاحکننده را برای قسمتی از پاراگراف تنظیم کنم؟
بله. برای بخشهای جداگانه IBasePortionFormat.setLanguageId را تنظیم کنید تا یک پاراگراف بتواند متن را در چندین زبان داشته باشد.
