Gerenciar Rótulos de Dados de Gráficos em Apresentações Usando C++
Introdução
Rótulos de dados exibem informações sobre as séries de gráficos e pontos de dados individuais, ajudando os leitores a identificar valores e entender o gráfico. Este artigo explica como formatar valores, exibir porcentagens, ler o texto do rótulo, controlar rótulos além do máximo do eixo, ajustar o espaçamento dos rótulos do eixo de categorias e posicionar rótulos de gráfico de pizza.
Contar Rótulos de Dados Visíveis
Use get_CountOfVisibleDataLabels para verificar quantos rótulos de dados estão habilitados para exibição antes de publicar uma apresentação. Ao contrário de get_Count, que retorna o número total de rótulos na coleção, ele leva em conta os padrões da série e as configurações individuais de rótulo.
Este exemplo cria um gráfico de colunas com uma série e três pontos de dados. Ele acessa a coleção get_Labels da série e imprime a contagem visível à medida que as configurações mudam: 0, 3, 2, 3. A contagem total permanece 3.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto seriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto i = 0; i < 3; i++)
{
auto categoryCell = workbook->GetCell(0, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
auto valueCell = workbook->GetCell(0, i + 1, 1, ObjectExt::Box((i + 1) * 10));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
auto labels = series->get_Labels();
Console::WriteLine(String::Format(u"Total: {0}; visible: {1}", labels->get_Count(), labels->get_CountOfVisibleDataLabels())); // Total: 3; visível: 0
labels->get_DefaultDataLabelFormat()->set_ShowValue(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Visível: 3
labels->idx_get(1)->get_DataLabelFormat()->set_ShowValue(false);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Visível: 2
labels->idx_get(1)->get_DataLabelFormat()->set_ShowLegendKey(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Visível: 3
A série' get_DefaultDataLabelFormat fornece as configurações padrão. Chamar set_ShowValue com true exibe valores para todos os três rótulos. Passar false por meio do get_DataLabelFormat de um rótulo substitui essa configuração para o rótulo selecionado. Chamar set_ShowLegendKey com true faz com que esse rótulo volte a contar como visível, embora seu valor permaneça oculto.
A contagem visível reflete as configurações de visibilidade. Ela não mede se os rótulos se sobrepõem, são recortados ou são legíveis no gráfico renderizado.
Definir Precisão dos Dados nos Rótulos de Dados do Gráfico
Use set_NumberFormatOfValues para formatar os valores da série. Este exemplo cria um gráfico de linhas com dados padrão, exibe sua tabela de dados e habilita rótulos de valor para a primeira série. O formato #,##0.00 exibe um separador de milhares e duas casas decimais sem alterar os valores subjacentes.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 50, 50, 450, 300);
chart->set_HasDataTable(true);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
series->set_NumberFormatOfValues(u"#,##0.00");
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
presentation->Save(u"PrecisionOfDatalabels_out.pptx", SaveFormat::Pptx);
Para formatar as células numéricas na pasta de trabalho incorporada ao gráfico, veja Definir formatos numéricos personalizados para células da pasta de trabalho. Esse exemplo também mostra rótulos de valor seguindo os formatos das células de origem, preservando os valores numéricos armazenados.
Exibir Porcentagem como Rótulos
Para um gráfico de colunas empilhadas, calcule cada valor como uma porcentagem do total da sua categoria e atribua o texto ao quadro de texto retornado por get_TextFrameForOverriding. Este exemplo usa os dados padrão do gráfico e exibe porcentagens com duas casas decimais em fonte de 8 pontos. Categorias com total zero são ignoradas para evitar divisão por zero. Recalcule o texto do rótulo personalizado se os dados do gráfico mudarem.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Portion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ITextFrame.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <system/convert.h>
#include <vector>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::StackedColumn, 20, 20, 400, 400);
auto categoryTotals = std::vector<double>(chart->get_ChartData()->get_Categories()->get_Count(), 0.0);
for (auto k = 0; k < chart->get_ChartData()->get_Categories()->get_Count(); k++)
{
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto pointValue = Convert::ToDouble(series->get_DataPoint(k)->get_Value()->get_Data());
categoryTotals[k] += pointValue;
}
}
for (auto x = 0; x < chart->get_ChartData()->get_Series()->get_Count(); x++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(x);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowLegendKey(false);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto label = series->get_DataPoint(j)->get_Label();
if (categoryTotals[j] == 0)
{
continue;
}
auto pointValue = Convert::ToDouble(series->get_DataPoint(j)->get_Value()->get_Data());
auto dataPointPercent = (pointValue / categoryTotals[j]) * 100;
auto portion = MakeObject<Portion>();
portion->set_Text(String::Format(u"{0:F2} %", dataPointPercent));
portion->get_PortionFormat()->set_FontHeight(8.0f);
label->get_TextFrameForOverriding()->set_Text(u"");
auto paragraph = label->get_TextFrameForOverriding()->get_Paragraphs()->idx_get(0);
paragraph->get_Portions()->Add(portion);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_ShowSeriesName(false);
label->get_DataLabelFormat()->set_ShowPercentage(false);
label->get_DataLabelFormat()->set_ShowLegendKey(false);
label->get_DataLabelFormat()->set_ShowCategoryName(false);
label->get_DataLabelFormat()->set_ShowBubbleSize(false);
}
}
presentation->Save(u"DisplayPercentageAsLabels_out.pptx", SaveFormat::Pptx);
Definir Símbolo de Porcentagem nos Rótulos de Dados do Gráfico
Quando os valores são armazenados como frações, use set_NumberFormat para exibir porcentagens. Passe false para set_IsNumberFormatLinkedToSource para aplicar o formato do rótulo independentemente das células de origem.
Este exemplo cria um gráfico de colunas empilhadas 100% com série vermelha e azul em quatro categorias. Cada par de valores soma 1. O formato de rótulo 0.0% exibe 0,30 como 30,0%, enquanto o eixo vertical usa duas casas decimais. Ambas as séries utilizam texto de rótulo branco, tamanho 10.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/IColorFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::PercentsStackedColumn, 20, 20, 500, 400);
chart->get_Axes()->get_VerticalAxis()->set_IsNumberFormatLinkedToSource(false);
chart->get_Axes()->get_VerticalAxis()->set_NumberFormat(u"0.00%");
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto worksheetIndex = 0;
for (auto i = 0; i < 4; i++)
{
auto categoryCell = workbook->GetCell(worksheetIndex, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
String seriesNames[] = { u"Reds", u"Blues" };
Color seriesColors[] = { Color::get_Red(), Color::get_Blue() };
double values[2][4] = { { 0.30, 0.50, 0.80, 0.65 }, { 0.70, 0.50, 0.20, 0.35 } };
for (auto i = 0; i < 2; i++)
{
auto seriesCell = workbook->GetCell(worksheetIndex, 0, i + 1, ObjectExt::Box(seriesNames[i]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto j = 0; j < 4; j++)
{
auto valueCell = workbook->GetCell(worksheetIndex, j + 1, i + 1, ObjectExt::Box(values[i][j]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(seriesColors[i]);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_IsNumberFormatLinkedToSource(false);
labelFormat->set_NumberFormat(u"0.0%");
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(10);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_White());
}
presentation->Save(u"SetDataLabelsPercentageSign_out.pptx", SaveFormat::Pptx);
Ler o Texto Real dos Rótulos de Dados
Use GetActualLabelText para recuperar o texto gerado pelas configurações de um rótulo de dados. Isso é útil ao extrair rótulos para relatórios, pesquisar conteúdo da apresentação ou validar gráficos gerados. No exemplo abaixo, o formato de rótulo de dados combina o nome de cada categoria, o nome da série e o valor. Um ponto formata seu valor como porcentagem, e outro usa texto personalizado de get_TextFrameForOverriding.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/ITextFrame.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategoryCell = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Q1"));
chart->get_ChartData()->get_Categories()->Add(firstCategoryCell);
auto secondCategoryCell = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Q2"));
chart->get_ChartData()->get_Categories()->Add(secondCategoryCell);
auto northSeriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"North"));
auto north = chart->get_ChartData()->get_Series()->Add(northSeriesCell, chart->get_Type());
auto northFirstValueCell = workbook->GetCell(0, 1, 1, ObjectExt::Box(0.25));
north->get_DataPoints()->AddDataPointForBarSeries(northFirstValueCell);
auto northSecondValueCell = workbook->GetCell(0, 2, 1, ObjectExt::Box(0.75));
north->get_DataPoints()->AddDataPointForBarSeries(northSecondValueCell);
auto southSeriesCell = workbook->GetCell(0, 0, 2, ObjectExt::Box<String>(u"South"));
auto south = chart->get_ChartData()->get_Series()->Add(southSeriesCell, chart->get_Type());
auto southFirstValueCell = workbook->GetCell(0, 1, 2, ObjectExt::Box(0.40));
south->get_DataPoints()->AddDataPointForBarSeries(southFirstValueCell);
auto southSecondValueCell = workbook->GetCell(0, 2, 2, ObjectExt::Box(0.60));
south->get_DataPoints()->AddDataPointForBarSeries(southSecondValueCell);
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto format = series->get_Labels()->get_DefaultDataLabelFormat();
format->set_ShowCategoryName(true);
format->set_ShowSeriesName(true);
format->set_ShowValue(true);
}
north->get_Label(1)->get_DataLabelFormat()->set_IsNumberFormatLinkedToSource(false);
north->get_Label(1)->get_DataLabelFormat()->set_NumberFormat(u"0%");
south->get_Label(0)->get_TextFrameForOverriding()->set_Text(u"Reviewed");
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto point = series->get_DataPoint(j);
auto label = point->get_Label();
if (!label->get_IsVisible())
{
continue;
}
Console::WriteLine(String::Format(u"Value: {0}; label: {1}", point->get_Value()->get_Data(), label->GetActualLabelText()));
}
}
O número armazenado em um ponto de dados permanece 0.75, mesmo quando seu rótulo mostra 75% juntamente com os nomes da categoria e da série. Texto personalizado substitui o texto gerado do rótulo. GetActualLabelText retorna a string de rótulo resultante em ambos os casos. Verifique get_IsVisible separadamente, como mostrado acima, quando quiser extrair apenas rótulos visíveis.
Controlar Rótulos de Dados Além do Máximo do Eixo
Quando você limita manualmente o intervalo de um eixo, alguns pontos de dados podem exceder seu máximo. Use set_ShowDataLabelsOverMaximum para controlar se os rótulos de dados são exibidos. Essa configuração altera a visibilidade dos rótulos; não altera o intervalo do eixo nem os valores subjacentes dos dados.
O exemplo abaixo cria um gráfico de colunas agrupadas 2D com valores 60 e 120. Ele define set_IsAutomaticMaxValue como false e set_MaxValue como 100 no eixo vertical. O primeiro slide permite rótulos além do máximo; uma cópia desse slide os desabilita. Ambos os slides são salvos em DataLabelsOverMaximum.pptx.
Habilite rótulos de valor com set_ShowValue. A configuração ao nível do gráfico não habilita a exibição de valores por si só nem substitui a exibição de valor desabilitada de um rótulo individual. Este exemplo habilita valores para toda a série e usa set_Position para posicionar os rótulos no extremo externo de cada coluna.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 600, 400);
chart->set_HasLegend(false);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategory = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Within range"));
auto secondCategory = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Above maximum"));
chart->get_ChartData()->get_Categories()->Add(firstCategory);
chart->get_ChartData()->get_Categories()->Add(secondCategory);
auto seriesName = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesName, chart->get_Type());
auto firstValue = workbook->GetCell(0, 1, 1, ObjectExt::Box(60));
auto secondValue = workbook->GetCell(0, 2, 1, ObjectExt::Box(120));
series->get_DataPoints()->AddDataPointForBarSeries(firstValue);
series->get_DataPoints()->AddDataPointForBarSeries(secondValue);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
series->get_Labels()->get_DefaultDataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMaxValue(false);
chart->get_Axes()->get_VerticalAxis()->set_MaxValue(100);
chart->set_ShowDataLabelsOverMaximum(true);
auto secondSlide = presentation->get_Slides()->AddClone(slide);
auto secondChart = ExplicitCast<IChart>(secondSlide->get_Shape(0));
secondChart->set_ShowDataLabelsOverMaximum(false);
presentation->Save(u"DataLabelsOverMaximum.pptx", SaveFormat::Pptx);
As imagens a seguir mostram os slides salvos renderizados pelo Microsoft PowerPoint. Com true, o rótulo 120 está visível no limite superior; com false, ele está oculto. O rótulo 60 permanece visível, o máximo do eixo permanece em 100, e o segundo ponto de dados permanece 120 em ambos os casos.
| ShowDataLabelsOverMaximum = true | ShowDataLabelsOverMaximum = false |
|---|---|
![]() |
![]() |
Chart Type
Este exemplo usa um gráfico de colunas 2D com eixo de valores. Gráficos sem eixo de valores, como gráficos de pizza e rosquinha, não possuem um máximo de eixo para limitar desta forma.Definir Distância do Rótulo a partir de um Eixo
Use set_LabelOffset para controlar a distância entre os rótulos do eixo de categorias e o eixo. O valor é uma porcentagem do tamanho máximo da fonte dos rótulos do eixo. Este exemplo cria um gráfico de colunas agrupadas e define o deslocamento do rótulo do eixo horizontal para 500. Essa configuração afeta os rótulos do eixo de categorias, e não os rótulos anexados a pontos de dados individuais.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_Axes()->get_HorizontalAxis()->set_LabelOffset(500);
presentation->Save(u"SetCategoryAxisLabelDistance_out.pptx", SaveFormat::Pptx);
Ajustar Localização do Rótulo

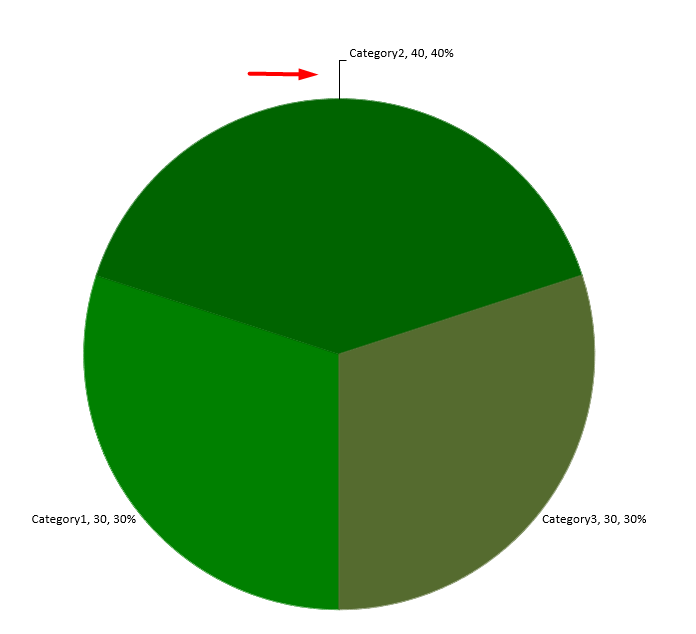

Em um gráfico de pizza, ajuste as posições dos rótulos de dados para melhorar o espaçamento e abrir espaço para linhas de ligação.
Este exemplo exibe o valor do primeiro ponto de dados, posiciona seu rótulo fora da fatia e usa set_X e set_Y para ajustar seus deslocamentos. Esses deslocamentos são relativos à largura e altura do gráfico, respectivamente.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 50, 50, 200, 200);
auto series = chart->get_ChartData()->get_Series();
auto label = series->idx_get(0)->get_Label(0);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
label->set_X(0.71f);
label->set_Y(0.04f);
presentation->Save(u"presentation.pptx", SaveFormat::Pptx);

Formatar Linhas de Ligação
Quando os rótulos de um gráfico de pizza ficam fora de suas fatias, as linhas de ligação ajudam os leitores a associar cada valor à fatia correta. Uma cor contrastante e uma linha ligeiramente mais grossa podem facilitar o seguimento dessas conexões, enquanto transparência e estilo tracejado mantêm as linhas visualmente discretas.
Use get_LeaderLinesFormat para formatar linhas de ligação no nível da coleção de rótulos de dados da série. As configurações em series->get_Labels()->get_LeaderLinesFormat()->get_Line() aplicam‑se à coleção, e não a um rótulo individual.
Este exemplo cria um gráfico de pizza com dados padrão, exibe valores fora das fatias e habilita linhas de ligação com set_ShowLeaderLines. Ele move dois rótulos mais longe de suas fatias usando deslocamentos set_X e set_Y, expressos como frações da largura e altura do gráfico. Nenhuma apresentação de entrada é necessária.
O formato de preenchimento retornado por get_FillFormat é usado para definir uma cor azul sólida com um valor alfa de 191 de 255, proporcionando aproximadamente 25% de transparência. set_Width define a espessura para 2 pontos, e set_DashStyle torna a linha tracejada.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartLinesFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/ILineFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/FillType.h>
#include <DOM/LineDashStyle.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 80, 50, 560, 400);
chart->set_HasLegend(false);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_Position(LegendDataLabelPosition::OutsideEnd);
labelFormat->set_ShowLeaderLines(true);
// Mova dois rótulos mais longe de suas fatias.
series->get_Label(0)->set_X(0.10f);
series->get_Label(0)->set_Y(-0.05f);
series->get_Label(1)->set_X(-0.10f);
series->get_Label(1)->set_Y(0.05f);
auto line = series->get_Labels()->get_LeaderLinesFormat()->get_Line();
line->get_FillFormat()->set_FillType(FillType::Solid);
line->get_FillFormat()->get_SolidFillColor()->set_Color(Color::FromArgb(191, 30, 90, 160));
line->set_Width(2);
line->set_DashStyle(LineDashStyle::Dash);
presentation->Save(u"FormattedLeaderLines.pptx", SaveFormat::Pptx);
Habilitar linhas de ligação não garante que uma linha aparecerá para cada rótulo. A visibilidade depende do posicionamento do rótulo e do comportamento de layout do gráfico. Neste exemplo, os dois rótulos deslocados possuem linhas de ligação visíveis; os rótulos que permanecem próximos às suas fatias não precisam delas.

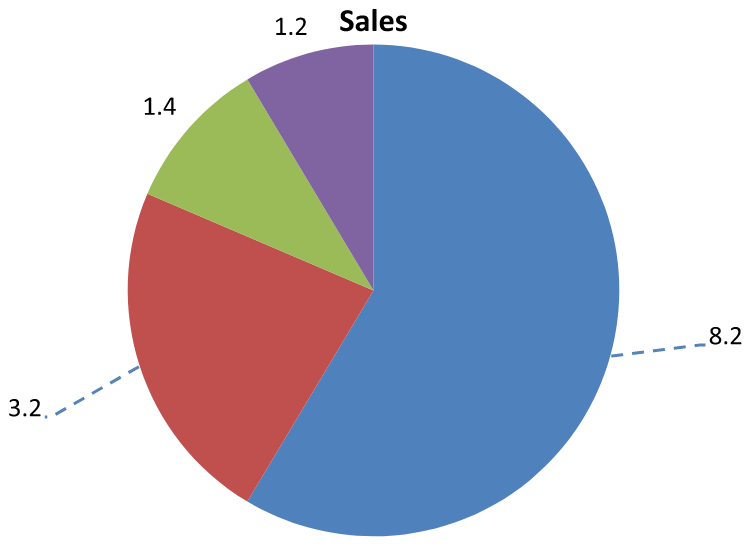

A imagem a seguir mostra o FormattedLeaderLines.pptx salvo renderizado com Aspose.Slides:

Adicionar Múltiplas Linhas de Rótulos de Dados Acima de um Gráfico de Colunas
Este exemplo cria um gráfico de colunas com duas linhas de rótulos de dados acima da área de plotagem. A Série A exibe as colunas visíveis, enquanto as Séries B e C fornecem os rótulos adicionais. Suas colunas são ocultas removendo o preenchimento e o contorno. O método set_Overlap alinha as três séries ao mesmo centro de categoria.
As configurações get_PlotArea reservam espaço para as linhas de rótulos. Após ValidateChartLayout calcular as posições padrão, set_X e set_Y preservam o alinhamento horizontal e aplicam deslocamentos vertical para organizar os rótulos em duas linhas. Os números permanecem como rótulos de dados vinculados aos valores das séries; apenas os cabeçalhos das linhas são formas de texto separadas.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartPlotArea.h>
#include <DOM/Chart/LayoutTargetType.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/ShapeType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 40, 40, 640, 200);
chart->set_HasTitle(false);
chart->set_HasLegend(false);
chart->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
workbook->Clear(0);
String categories[] = { u"North", u"South", u"East", u"West" };
String seriesNames[] = { u"Series A", u"Series B", u"Series C" };
double seriesValues[3][4] = {
{ 35, 42, 28, 47 },
{ 22, 31, 19, 26 },
{ 12, 16, 14, 18 }
};
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto categoryCell = workbook->GetCell(0, categoryIndex + 1, 0, ObjectExt::Box(categories[categoryIndex]));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
for (auto seriesIndex = 0; seriesIndex < 3; seriesIndex++)
{
auto seriesCell = workbook->GetCell(0, 0, seriesIndex + 1, ObjectExt::Box(seriesNames[seriesIndex]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, ChartType::ClusteredColumn);
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto valueCell = workbook->GetCell(0, categoryIndex + 1, seriesIndex + 1, ObjectExt::Box(seriesValues[seriesIndex][categoryIndex]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
if (seriesIndex > 0)
{
// Oculte as colunas de B e C, mas mantenha seus rótulos de dados.
series->get_Format()->get_Fill()->set_FillType(FillType::NoFill);
series->get_Format()->get_Line()->get_FillFormat()->set_FillType(FillType::NoFill);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
auto labelFill = labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat();
labelFill->set_FillType(FillType::Solid);
labelFill->get_SolidFillColor()->set_Color(Color::get_Black());
labelFormat->set_Position(LegendDataLabelPosition::InsideBase);
}
}
// Alinhe as três séries ao mesmo centro de categoria.
chart->get_ChartData()->get_Series()->idx_get(0)->get_ParentSeriesGroup()->set_Overlap(100);
// Use menos linhas de grade para este exemplo compacto.
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMajorUnit(false);
chart->get_Axes()->get_VerticalAxis()->set_MajorUnit(10);
// Reserve espaço acima da área de plotagem para duas linhas de rótulos de dados.
chart->get_PlotArea()->set_LayoutTargetType(LayoutTargetType::Inner);
chart->get_PlotArea()->set_X(0.15f);
chart->get_PlotArea()->set_Y(0.32f);
chart->get_PlotArea()->set_Width(0.80f);
chart->get_PlotArea()->set_Height(0.48f);
chart->ValidateChartLayout();
for (auto seriesIndex = 1; seriesIndex < 3; seriesIndex++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(seriesIndex);
auto rowTop = seriesIndex == 1 ? 0.15f : 0.03f;
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto dataLabel = series->get_DataPoint(categoryIndex)->get_Label();
// Mantenha a posição horizontal padrão. Y é um deslocamento a partir de
// a posição padrão do rótulo, expressa como fração da altura do gráfico.
dataLabel->set_X(0);
dataLabel->set_Y(rowTop - dataLabel->get_ActualY() / chart->get_Height());
}
// Apenas o cabeçalho da linha é uma forma de texto separada.
auto rowHeading = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, chart->get_X(), chart->get_Y() + rowTop * chart->get_Height(), 85, 18);
rowHeading->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->AddTextFrame(seriesNames[seriesIndex]);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginTop(0);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginBottom(0);
auto headingFormat = rowHeading->get_TextFrame()->get_Paragraphs()->idx_get(0)->get_Portions()->idx_get(0)->get_PortionFormat();
headingFormat->set_FontHeight(12);
headingFormat->get_FillFormat()->set_FillType(FillType::Solid);
headingFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
}
presentation->Save(u"multiple-rows-of-labels.pptx", SaveFormat::Pptx);

FAQ
Como posso impedir que os rótulos de dados se sobreponham em gráficos densos?
Combine posicionamento automático de rótulos, linhas de ligação e redução do tamanho da fonte; se necessário, oculte alguns campos (por exemplo, a categoria) ou mostre rótulos apenas para valores extremos ou pontos chave.
Como posso desativar rótulos apenas para valores zero, negativos ou vazios?
Filtre os pontos de dados antes de habilitar os rótulos e desative a exibição para valores 0, valores negativos ou valores ausentes de acordo com uma regra definida.
Como garantir um estilo de rótulo consistente ao exportar para PDF/imagens?
Defina explicitamente a família e o tamanho da fonte e verifique se a fonte está disponível no ambiente de renderização para evitar fallback.
