Zarządzaj etykietami danych wykresu w prezentacjach przy użyciu C++
Wstęp
Etykiety danych wyświetlają informacje o seriach wykresu i poszczególnych punktach danych, pomagając czytelnikom zidentyfikować wartości i zrozumieć wykres. Ten artykuł wyjaśnia, jak formatować wartości, wyświetlać procenty, odczytywać tekst etykiety, sterować etykietami poza maksymalnym zakresem osi, dostosowywać odstępy etykiet osi kategorii oraz pozycjonować etykiety wykresu kołowego.
Policz widoczne etykiety danych
Użyj get_CountOfVisibleDataLabels aby sprawdzić, ile etykiet danych jest włączonych do wyświetlenia przed opublikowaniem prezentacji. W przeciwieństwie do get_Count, które zwraca łączną liczbę etykiet w kolekcji, uwzględnia ono domyślne ustawienia serii i indywidualne ustawienia etykiet.
Ten przykład tworzy wykres słupkowy z jedną serią i trzema punktami danych. Uzyskuje dostęp do kolekcji get_Labels serii i wypisuje widoczną liczbę w miarę zmiany ustawień: 0, 3, 2, 3. Łączna liczba pozostaje 3.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto seriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto i = 0; i < 3; i++)
{
auto categoryCell = workbook->GetCell(0, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
auto valueCell = workbook->GetCell(0, i + 1, 1, ObjectExt::Box((i + 1) * 10));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
auto labels = series->get_Labels();
Console::WriteLine(String::Format(u"Total: {0}; visible: {1}", labels->get_Count(), labels->get_CountOfVisibleDataLabels())); // Razem: 3; widoczne: 0
labels->get_DefaultDataLabelFormat()->set_ShowValue(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Widoczne: 3
labels->idx_get(1)->get_DataLabelFormat()->set_ShowValue(false);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Widoczne: 2
labels->idx_get(1)->get_DataLabelFormat()->set_ShowLegendKey(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Widoczne: 3
Metoda serii get_DefaultDataLabelFormat dostarcza domyślne ustawienia. Wywołanie set_ShowValue z wartością true wyświetla wartości dla wszystkich trzech etykiet. Przekazanie false przez get_DataLabelFormat jednego etykiety nadpisuje to ustawienie dla wybranej etykiety. Wywołanie set_ShowLegendKey z wartością true powoduje, że etykieta ponownie liczy się jako widoczna, mimo że jej wartość pozostaje ukryta.
Widoczna liczba odzwierciedla ustawienia widoczności. Nie mierzy ona, czy etykiety nakładają się na siebie, są przycięte lub czytelne w renderowanym wykresie.
Ustaw precyzję danych w etykietach wykresu
Użyj set_NumberFormatOfValues aby sformatować wartości serii. Ten przykład tworzy wykres liniowy z domyślnymi danymi, wyświetla jego tabelę danych i włącza etykiety wartości dla pierwszej serii. Format #,##0.00 wyświetla separator tysięcy oraz dwa miejsca po przecinku bez zmiany pierwotnych wartości.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 50, 50, 450, 300);
chart->set_HasDataTable(true);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
series->set_NumberFormatOfValues(u"#,##0.00");
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
presentation->Save(u"PrecisionOfDatalabels_out.pptx", SaveFormat::Pptx);
Aby sformatować komórki liczbowe w osadzonym skoroszycie wykresu, zobacz Set Custom Number Formats for Workbook Cells. Ten przykład również pokazuje etykiety wartości podążające za formatami komórek źródłowych, zachowując jednocześnie przechowywane wartości liczbowe.
Wyświetl procent jako etykiety
Dla wykresu słupkowego skumulowanego, oblicz każdą wartość jako procent całkowitej sumy w danej kategorii i przypisz tekst do ramki tekstowej zwróconej przez get_TextFrameForOverriding. Ten przykład używa domyślnych danych wykresu i wyświetla procenty z dwoma miejscami po przecinku w czcionce 8 punktów. Kategorie o łącznej sumie zerowej są pomijane, aby uniknąć dzielenia przez zero. Przelicz ponownie niestandardowy tekst etykiety, jeśli dane wykresu ulegną zmianie.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Portion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ITextFrame.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <system/convert.h>
#include <vector>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::StackedColumn, 20, 20, 400, 400);
auto categoryTotals = std::vector<double>(chart->get_ChartData()->get_Categories()->get_Count(), 0.0);
for (auto k = 0; k < chart->get_ChartData()->get_Categories()->get_Count(); k++)
{
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto pointValue = Convert::ToDouble(series->get_DataPoint(k)->get_Value()->get_Data());
categoryTotals[k] += pointValue;
}
}
for (auto x = 0; x < chart->get_ChartData()->get_Series()->get_Count(); x++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(x);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowLegendKey(false);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto label = series->get_DataPoint(j)->get_Label();
if (categoryTotals[j] == 0)
{
continue;
}
auto pointValue = Convert::ToDouble(series->get_DataPoint(j)->get_Value()->get_Data());
auto dataPointPercent = (pointValue / categoryTotals[j]) * 100;
auto portion = MakeObject<Portion>();
portion->set_Text(String::Format(u"{0:F2} %", dataPointPercent));
portion->get_PortionFormat()->set_FontHeight(8.0f);
label->get_TextFrameForOverriding()->set_Text(u"");
auto paragraph = label->get_TextFrameForOverriding()->get_Paragraphs()->idx_get(0);
paragraph->get_Portions()->Add(portion);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_ShowSeriesName(false);
label->get_DataLabelFormat()->set_ShowPercentage(false);
label->get_DataLabelFormat()->set_ShowLegendKey(false);
label->get_DataLabelFormat()->set_ShowCategoryName(false);
label->get_DataLabelFormat()->set_ShowBubbleSize(false);
}
}
presentation->Save(u"DisplayPercentageAsLabels_out.pptx", SaveFormat::Pptx);
Ustaw znak procenta w etykietach wykresu
Gdy wartości są przechowywane jako ułamki, użyj set_NumberFormat aby wyświetlić procenty. Przekaż false do set_IsNumberFormatLinkedToSource aby zastosować format etykiety niezależnie od komórek źródłowych.
Ten przykład tworzy wykres słupkowy skumulowany 100% z czerwonymi i niebieskimi seriami w czterech kategoriach. Każda para wartości sumuje się do 1. Format etykiety 0.0% wyświetla 0,30 jako 30,0%, podczas gdy oś pionowa używa dwóch miejsc po przecinku. Obie serie używają białego tekstu etykiety o rozmiarze 10 punktów.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/IColorFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::PercentsStackedColumn, 20, 20, 500, 400);
chart->get_Axes()->get_VerticalAxis()->set_IsNumberFormatLinkedToSource(false);
chart->get_Axes()->get_VerticalAxis()->set_NumberFormat(u"0.00%");
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto worksheetIndex = 0;
for (auto i = 0; i < 4; i++)
{
auto categoryCell = workbook->GetCell(worksheetIndex, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
String seriesNames[] = { u"Reds", u"Blues" };
Color seriesColors[] = { Color::get_Red(), Color::get_Blue() };
double values[2][4] = { { 0.30, 0.50, 0.80, 0.65 }, { 0.70, 0.50, 0.20, 0.35 } };
for (auto i = 0; i < 2; i++)
{
auto seriesCell = workbook->GetCell(worksheetIndex, 0, i + 1, ObjectExt::Box(seriesNames[i]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto j = 0; j < 4; j++)
{
auto valueCell = workbook->GetCell(worksheetIndex, j + 1, i + 1, ObjectExt::Box(values[i][j]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(seriesColors[i]);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_IsNumberFormatLinkedToSource(false);
labelFormat->set_NumberFormat(u"0.0%");
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(10);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_White());
}
presentation->Save(u"SetDataLabelsPercentageSign_out.pptx", SaveFormat::Pptx);
Odczytaj rzeczywisty tekst etykiet danych
Użyj GetActualLabelText aby pobrać tekst wygenerowany na podstawie ustawień etykiety danych. Jest to przydatne przy wyodrębnianiu etykiet do raportów, przeszukiwaniu treści prezentacji lub walidacji wygenerowanych wykresów. W poniższym przykładzie domyślny format etykiety danych łączy nazwę każdej kategorii, nazwę serii i wartość. Jeden punkt formatuje swoją wartość jako procent, a inny używa niestandardowego tekstu z get_TextFrameForOverriding.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/ITextFrame.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategoryCell = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Q1"));
chart->get_ChartData()->get_Categories()->Add(firstCategoryCell);
auto secondCategoryCell = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Q2"));
chart->get_ChartData()->get_Categories()->Add(secondCategoryCell);
auto northSeriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"North"));
auto north = chart->get_ChartData()->get_Series()->Add(northSeriesCell, chart->get_Type());
auto northFirstValueCell = workbook->GetCell(0, 1, 1, ObjectExt::Box(0.25));
north->get_DataPoints()->AddDataPointForBarSeries(northFirstValueCell);
auto northSecondValueCell = workbook->GetCell(0, 2, 1, ObjectExt::Box(0.75));
north->get_DataPoints()->AddDataPointForBarSeries(northSecondValueCell);
auto southSeriesCell = workbook->GetCell(0, 0, 2, ObjectExt::Box<String>(u"South"));
auto south = chart->get_ChartData()->get_Series()->Add(southSeriesCell, chart->get_Type());
auto southFirstValueCell = workbook->GetCell(0, 1, 2, ObjectExt::Box(0.40));
south->get_DataPoints()->AddDataPointForBarSeries(southFirstValueCell);
auto southSecondValueCell = workbook->GetCell(0, 2, 2, ObjectExt::Box(0.60));
south->get_DataPoints()->AddDataPointForBarSeries(southSecondValueCell);
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto format = series->get_Labels()->get_DefaultDataLabelFormat();
format->set_ShowCategoryName(true);
format->set_ShowSeriesName(true);
format->set_ShowValue(true);
}
north->get_Label(1)->get_DataLabelFormat()->set_IsNumberFormatLinkedToSource(false);
north->get_Label(1)->get_DataLabelFormat()->set_NumberFormat(u"0%");
south->get_Label(0)->get_TextFrameForOverriding()->set_Text(u"Reviewed");
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto point = series->get_DataPoint(j);
auto label = point->get_Label();
if (!label->get_IsVisible())
{
continue;
}
Console::WriteLine(String::Format(u"Value: {0}; label: {1}", point->get_Value()->get_Data(), label->GetActualLabelText()));
}
}
Liczba przechowywana w punkcie danych pozostaje 0.75, nawet gdy jego etykieta wyświetla 75% razem z nazwą kategorii i serii. Niestandardowy tekst zastępuje wygenerowany tekst etykiety. GetActualLabelText zwraca wynikowy ciąg etykiety w obu przypadkach. Sprawdź get_IsVisible oddzielnie, jak pokazano powyżej, gdy chcesz wyodrębnić tylko widoczne etykiety.
Steruj etykietami danych poza maksymalnym zakresem osi
Gdy ręcznie ograniczysz zakres osi, niektóre punkty danych mogą przekraczać jej maksymalną wartość. Użyj set_ShowDataLabelsOverMaximum aby kontrolować, czy ich etykiety danych są wyświetlane. To ustawienie zmienia widoczność etykiet; nie zmienia zakresu osi ani wartości danych.
Poniższy przykład tworzy dwuwymiarowy skumulowany wykres słupkowy z wartościami 60 i 120. Ustawia set_IsAutomaticMaxValue na false oraz set_MaxValue na 100 na osi pionowej. Pierwszy slajd pozwala na etykiety poza maksimum; kopia tego slajdu wyłącza je. Oba slajdy są zapisane w pliku DataLabelsOverMaximum.pptx.
Włącz etykiety wartości za pomocą set_ShowValue. Ustawienie na poziomie wykresu nie włącza wyświetlania wartości samo w sobie ani nie nadpisuje wyłączonego wyświetlania wartości indywidualnej etykiety. Ten przykład włącza wartości dla całej serii i używa set_Position aby umieścić etykiety na zewnętrznym końcu każdego słupka.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 600, 400);
chart->set_HasLegend(false);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategory = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Within range"));
auto secondCategory = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Above maximum"));
chart->get_ChartData()->get_Categories()->Add(firstCategory);
chart->get_ChartData()->get_Categories()->Add(secondCategory);
auto seriesName = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesName, chart->get_Type());
auto firstValue = workbook->GetCell(0, 1, 1, ObjectExt::Box(60));
auto secondValue = workbook->GetCell(0, 2, 1, ObjectExt::Box(120));
series->get_DataPoints()->AddDataPointForBarSeries(firstValue);
series->get_DataPoints()->AddDataPointForBarSeries(secondValue);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
series->get_Labels()->get_DefaultDataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMaxValue(false);
chart->get_Axes()->get_VerticalAxis()->set_MaxValue(100);
chart->set_ShowDataLabelsOverMaximum(true);
auto secondSlide = presentation->get_Slides()->AddClone(slide);
auto secondChart = ExplicitCast<IChart>(secondSlide->get_Shape(0));
secondChart->set_ShowDataLabelsOverMaximum(false);
presentation->Save(u"DataLabelsOverMaximum.pptx", SaveFormat::Pptx);
Poniższe obrazy pokazują zapisane slajdy renderowane w Microsoft PowerPoint. Przy true etykieta 120 jest widoczna przy górnej granicy; przy false jest ukryta. Etykieta 60 pozostaje widoczna, maksymalna wartość osi pozostaje 100, a drugi punkt danych pozostaje 120 w obu przypadkach.
| ShowDataLabelsOverMaximum = true | ShowDataLabelsOverMaximum = false |
|---|---|
![]() |
![]() |
Chart Type
Ten przykład używa dwuwymiarowego wykresu słupkowego z osią wartości. Wykresy bez osi wartości, takie jak wykresy kołowe i pierścieniowe, nie mają maksymalnego zakresu osi, który można w ten sposób ograniczyć.Ustaw odległość etykiety od osi
Użyj set_LabelOffset aby kontrolować odległość między etykietami osi kategorii a samą osią. Wartość jest procentem maksymalnego rozmiaru czcionki etykiet osi. Ten przykład tworzy skumulowany wykres słupkowy i ustawia offset etykiet osi poziomej na 500. Ustawienie to wpływa na etykiety osi kategorii, a nie na etykiety przypisane do pojedynczych punktów danych.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_Axes()->get_HorizontalAxis()->set_LabelOffset(500);
presentation->Save(u"SetCategoryAxisLabelDistance_out.pptx", SaveFormat::Pptx);
Dostosuj położenie etykiety

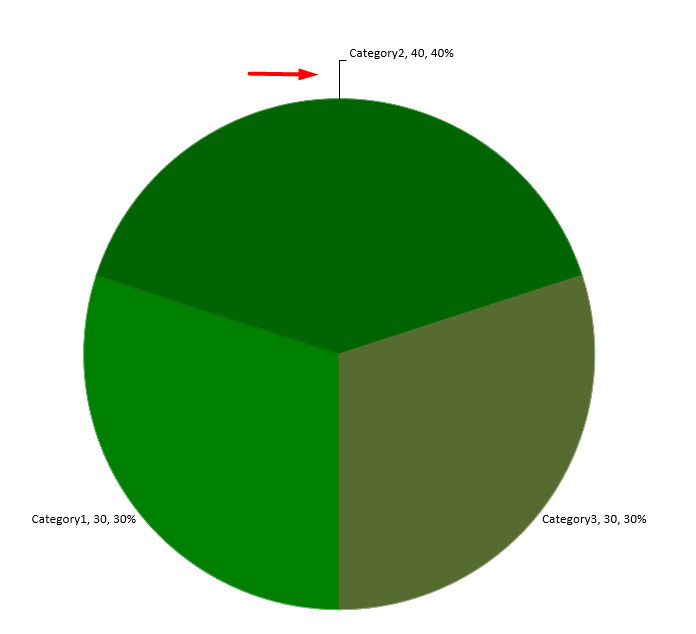

W wykresie kołowym dostosuj pozycje etykiet danych, aby poprawić odstępy i zrobić miejsce na linie łączące.
Ten przykład wyświetla wartość pierwszego punktu danych, umieszcza jego etykietę poza częścią wykresu i używa set_X oraz set_Y aby dostosować ich przesunięcia. Przesunięcia te są względne względem szerokości i wysokości wykresu.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 50, 50, 200, 200);
auto series = chart->get_ChartData()->get_Series();
auto label = series->idx_get(0)->get_Label(0);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
label->set_X(0.71f);
label->set_Y(0.04f);
presentation->Save(u"presentation.pptx", SaveFormat::Pptx);

Formatuj linie prowadzące
Gdy etykiety wykresu kołowego znajdują się poza jego kawałkami, linie prowadzące pomagają czytelnikom dopasować każdą wartość do odpowiedniego kawałka. Kontrastowy kolor i nieco grubsza linia mogą ułatwić śledzenie tych połączeń, natomiast przezroczystość i styl kreskowy sprawiają, że linie są wizualnie dyskretne.
Użyj get_LeaderLinesFormat aby sformatować linie prowadzące na poziomie kolekcji etykiet danych serii. Ustawienia w series->get_Labels()->get_LeaderLinesFormat()->get_Line() stosowane są do całej kolekcji, a nie do pojedynczej etykiety.
Ten przykład tworzy wykres kołowy z domyślnymi danymi, wyświetla wartości poza kawałkami i włącza linie prowadzące za pomocą set_ShowLeaderLines. Przesuwa dwie etykiety dalej od ich kawałków, używając przesunięć set_X i set_Y, wyrażonych jako ułamki szerokości i wysokości wykresu. Żadna prezentacja wejściowa nie jest wymagana.
Format wypełnienia zwrócony przez get_FillFormat jest używany do ustawienia jednolitego niebieskiego koloru z wartością alfa 191 z 255, co daje około 25% przezroczystości. set_Width ustawia grubość na 2 punkty, a set_DashStyle sprawia, że linia jest kreskowana.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartLinesFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/ILineFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/FillType.h>
#include <DOM/LineDashStyle.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 80, 50, 560, 400);
chart->set_HasLegend(false);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_Position(LegendDataLabelPosition::OutsideEnd);
labelFormat->set_ShowLeaderLines(true);
// Przesuń dwie etykiety dalej od ich kawałków.
series->get_Label(0)->set_X(0.10f);
series->get_Label(0)->set_Y(-0.05f);
series->get_Label(1)->set_X(-0.10f);
series->get_Label(1)->set_Y(0.05f);
auto line = series->get_Labels()->get_LeaderLinesFormat()->get_Line();
line->get_FillFormat()->set_FillType(FillType::Solid);
line->get_FillFormat()->get_SolidFillColor()->set_Color(Color::FromArgb(191, 30, 90, 160));
line->set_Width(2);
line->set_DashStyle(LineDashStyle::Dash);
presentation->Save(u"FormattedLeaderLines.pptx", SaveFormat::Pptx);
Włączenie linii prowadzących nie gwarantuje, że linia pojawi się przy każdej etykiecie. Widoczność zależy od umiejscowienia etykiet i zachowania układu wykresu. W tym przykładzie dwie przesunięte etykiety mają widoczne linie prowadzące; etykiety pozostające blisko swoich kawałków ich nie potrzebują.

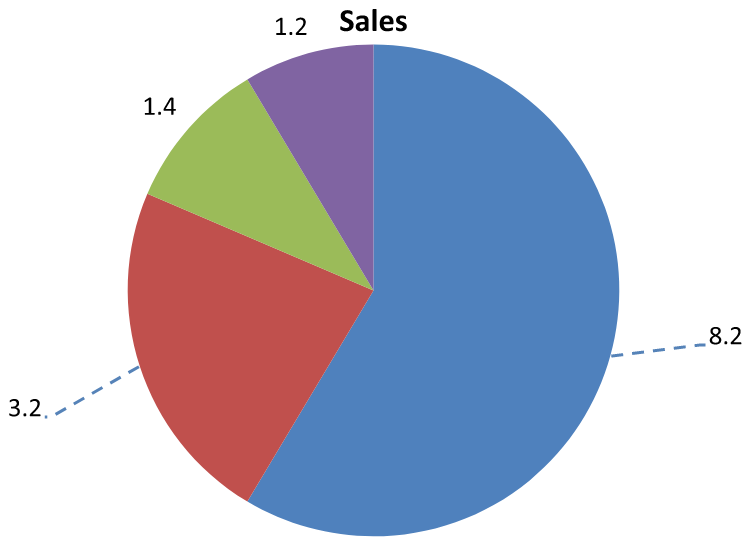

Poniższy obraz przedstawia zapisany FormattedLeaderLines.pptx renderowany przy użyciu Aspose.Slides:

Dodaj wiele wierszy etykiet danych nad wykresem słupkowym
Ten przykład tworzy wykres słupkowy z dwoma wierszami etykiet danych nad obszarem wykresu. Seria A wyświetla widoczne słupki, podczas gdy Serie B i C zapewniają dodatkowe etykiety. Ich słupki są ukryte poprzez usunięcie wypełnienia i konturu. Metoda set_Overlap wyrównuje wszystkie trzy serie do tych samych środków kategorii.
Ustawienia get_PlotArea rezerwują miejsce na wiersze etykiet. Po obliczeniu domyślnych pozycji przez ValidateChartLayout, set_X i set_Y zachowują wyrównanie poziome i stosują pionowe przesunięcia, aby ułożyć etykiety w dwóch wierszach. Liczby pozostają etykietami danych powiązanymi z wartościami serii; tylko nagłówki wierszy są oddzielnymi kształtami tekstowymi.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartPlotArea.h>
#include <DOM/Chart/LayoutTargetType.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/ShapeType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 40, 40, 640, 200);
chart->set_HasTitle(false);
chart->set_HasLegend(false);
chart->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
workbook->Clear(0);
String categories[] = { u"North", u"South", u"East", u"West" };
String seriesNames[] = { u"Series A", u"Series B", u"Series C" };
double seriesValues[3][4] = {
{ 35, 42, 28, 47 },
{ 22, 31, 19, 26 },
{ 12, 16, 14, 18 }
};
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto categoryCell = workbook->GetCell(0, categoryIndex + 1, 0, ObjectExt::Box(categories[categoryIndex]));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
for (auto seriesIndex = 0; seriesIndex < 3; seriesIndex++)
{
auto seriesCell = workbook->GetCell(0, 0, seriesIndex + 1, ObjectExt::Box(seriesNames[seriesIndex]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, ChartType::ClusteredColumn);
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto valueCell = workbook->GetCell(0, categoryIndex + 1, seriesIndex + 1, ObjectExt::Box(seriesValues[seriesIndex][categoryIndex]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
if (seriesIndex > 0)
{
// Ukryj kolumny B i C, ale zachowaj ich etykiety danych.
series->get_Format()->get_Fill()->set_FillType(FillType::NoFill);
series->get_Format()->get_Line()->get_FillFormat()->set_FillType(FillType::NoFill);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
auto labelFill = labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat();
labelFill->set_FillType(FillType::Solid);
labelFill->get_SolidFillColor()->set_Color(Color::get_Black());
labelFormat->set_Position(LegendDataLabelPosition::InsideBase);
}
}
// Wyrównaj wszystkie trzy serie do tych samych środków kategorii.
chart->get_ChartData()->get_Series()->idx_get(0)->get_ParentSeriesGroup()->set_Overlap(100);
// Użyj mniejszej liczby linii siatki w tym zwartym przykładzie.
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMajorUnit(false);
chart->get_Axes()->get_VerticalAxis()->set_MajorUnit(10);
// Zarezerwuj miejsce nad obszarem wykresu dla dwóch wierszy etykiet danych.
chart->get_PlotArea()->set_LayoutTargetType(LayoutTargetType::Inner);
chart->get_PlotArea()->set_X(0.15f);
chart->get_PlotArea()->set_Y(0.32f);
chart->get_PlotArea()->set_Width(0.80f);
chart->get_PlotArea()->set_Height(0.48f);
chart->ValidateChartLayout();
for (auto seriesIndex = 1; seriesIndex < 3; seriesIndex++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(seriesIndex);
auto rowTop = seriesIndex == 1 ? 0.15f : 0.03f;
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto dataLabel = series->get_DataPoint(categoryIndex)->get_Label();
// Zachowaj domyślną pozycję poziomą. Y jest przesunięciem od
// domyślnej pozycji etykiety, wyrażonego jako ułamek wysokości wykresu.
dataLabel->set_X(0);
dataLabel->set_Y(rowTop - dataLabel->get_ActualY() / chart->get_Height());
}
// Tylko nagłówek wiersza jest oddzielnym kształtem tekstowym.
auto rowHeading = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, chart->get_X(), chart->get_Y() + rowTop * chart->get_Height(), 85, 18);
rowHeading->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->AddTextFrame(seriesNames[seriesIndex]);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginTop(0);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginBottom(0);
auto headingFormat = rowHeading->get_TextFrame()->get_Paragraphs()->idx_get(0)->get_Portions()->idx_get(0)->get_PortionFormat();
headingFormat->set_FontHeight(12);
headingFormat->get_FillFormat()->set_FillType(FillType::Solid);
headingFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
}
presentation->Save(u"multiple-rows-of-labels.pptx", SaveFormat::Pptx);

FAQ
Jak mogę zapobiec nakładaniu się etykiet danych na gęstych wykresach?
Połącz automatyczne rozmieszczanie etykiet, linie prowadzące i zmniejszoną wielkość czcionki; w razie potrzeby ukryj niektóre pola (np. kategorię) lub wyświetlaj etykiety tylko dla wartości skrajnych lub kluczowych punktów.
Jak mogę wyłączyć etykiety tylko dla wartości zerowych, ujemnych lub pustych?
Przefiltruj punkty danych przed włączeniem etykiet i wyłącz wyświetlanie dla wartości 0, wartości ujemnych lub brakujących wartości zgodnie z określoną regułą.
Jak zapewnić spójny styl etykiet przy eksportowaniu do PDF/obrazów?
Jawnie ustaw rodzinę i rozmiar czcionki oraz sprawdź, czy czcionka jest dostępna w środowisku renderowania, aby uniknąć użycia czcionki domyślnej.
