Quản lý Nhãn Dữ liệu Biểu đồ trong Bản Trình Chiếu Sử dụng C++
Giới thiệu
Nhãn dữ liệu hiển thị thông tin về chuỗi biểu đồ và các điểm dữ liệu riêng lẻ, giúp người đọc xác định giá trị và hiểu biểu đồ. Bài viết này giải thích cách định dạng giá trị, hiển thị phần trăm, đọc văn bản nhãn, điều khiển nhãn vượt quá giá trị tối đa của trục, điều chỉnh khoảng cách nhãn trục danh mục và đặt vị trí nhãn cho biểu đồ tròn.
Đếm Nhãn Dữ liệu Hiển thị
Sử dụng get_CountOfVisibleDataLabels để kiểm tra có bao nhiêu nhãn dữ liệu được bật hiển thị trước khi xuất bản bản trình chiếu. Không giống như get_Count, trả về tổng số nhãn trong bộ sưu tập, phương thức này còn tính đến các mặc định của chuỗi và cài đặt nhãn cá nhân.
Ví dụ này tạo một biểu đồ cột với một chuỗi và ba điểm dữ liệu. Nó truy cập bộ sưu tập get_Labels của chuỗi và in số lượng hiển thị khi các cài đặt thay đổi: 0, 3, 2, 3. Tổng số vẫn là 3.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto seriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto i = 0; i < 3; i++)
{
auto categoryCell = workbook->GetCell(0, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
auto valueCell = workbook->GetCell(0, i + 1, 1, ObjectExt::Box((i + 1) * 10));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
auto labels = series->get_Labels();
Console::WriteLine(String::Format(u"Total: {0}; visible: {1}", labels->get_Count(), labels->get_CountOfVisibleDataLabels())); // Tổng: 3; hiển thị: 0
labels->get_DefaultDataLabelFormat()->set_ShowValue(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Hiển thị: 3
labels->idx_get(1)->get_DataLabelFormat()->set_ShowValue(false);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Hiển thị: 2
labels->idx_get(1)->get_DataLabelFormat()->set_ShowLegendKey(true);
Console::WriteLine(String::Format(u"Visible: {0}", labels->get_CountOfVisibleDataLabels())); // Hiển thị: 3
get_DefaultDataLabelFormat của chuỗi cung cấp các cài đặt mặc định. Gọi set_ShowValue với true sẽ hiển thị giá trị cho cả ba nhãn. Đặt false thông qua get_DataLabelFormat của một nhãn sẽ ghi đè cài đặt đó cho nhãn đã chọn. Gọi set_ShowLegendKey với true khiến nhãn đó lại được tính là hiển thị, mặc dù giá trị vẫn ẩn.
Số lượng hiển thị phản ánh các cài đặt hiển thị. Nó không đo độ chồng chập, cắt bớt hay khả năng đọc được của các nhãn trong biểu đồ đã render.
Đặt Độ Chính Xác Dữ Liệu trong Nhãn Dữ liệu Biểu đồ
Sử dụng set_NumberFormatOfValues để định dạng giá trị của chuỗi. Ví dụ này tạo một biểu đồ đường với dữ liệu mặc định, hiển thị bảng dữ liệu và bật nhãn giá trị cho chuỗi đầu tiên. Định dạng #,##0.00 hiển thị dấu phân cách hàng nghìn và hai chữ số thập phân mà không thay đổi giá trị gốc.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Line, 50, 50, 450, 300);
chart->set_HasDataTable(true);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
series->set_NumberFormatOfValues(u"#,##0.00");
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
presentation->Save(u"PrecisionOfDatalabels_out.pptx", SaveFormat::Pptx);
Để định dạng các ô số trong sổ làm việc nhúng của biểu đồ, xem Set Custom Number Formats for Workbook Cells. Ví dụ đó cũng cho thấy nhãn giá trị tuân theo định dạng ô nguồn trong khi giữ nguyên giá trị số đã lưu.
Hiển Thị Phần Trăm dưới Dạng Nhãn
Đối với biểu đồ cột chồng, tính mỗi giá trị dưới dạng phần trăm của tổng danh mục và gán văn bản cho khung văn bản trả về bởi get_TextFrameForOverriding. Ví dụ này sử dụng dữ liệu biểu đồ mặc định và hiển thị phần trăm với hai chữ số thập phân trong phông chữ 8 điểm. Các danh mục có tổng bằng zero sẽ bị bỏ qua để tránh chia cho zero. Tính lại văn bản nhãn tùy chỉnh nếu dữ liệu biểu đồ thay đổi.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Portion.h>
#include <DOM/IPortionFormat.h>
#include <DOM/ITextFrame.h>
#include <DOM/IParagraph.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IPortionCollection.h>
#include <system/convert.h>
#include <vector>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::StackedColumn, 20, 20, 400, 400);
auto categoryTotals = std::vector<double>(chart->get_ChartData()->get_Categories()->get_Count(), 0.0);
for (auto k = 0; k < chart->get_ChartData()->get_Categories()->get_Count(); k++)
{
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto pointValue = Convert::ToDouble(series->get_DataPoint(k)->get_Value()->get_Data());
categoryTotals[k] += pointValue;
}
}
for (auto x = 0; x < chart->get_ChartData()->get_Series()->get_Count(); x++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(x);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowLegendKey(false);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto label = series->get_DataPoint(j)->get_Label();
if (categoryTotals[j] == 0)
{
continue;
}
auto pointValue = Convert::ToDouble(series->get_DataPoint(j)->get_Value()->get_Data());
auto dataPointPercent = (pointValue / categoryTotals[j]) * 100;
auto portion = MakeObject<Portion>();
portion->set_Text(String::Format(u"{0:F2} %", dataPointPercent));
portion->get_PortionFormat()->set_FontHeight(8.0f);
label->get_TextFrameForOverriding()->set_Text(u"");
auto paragraph = label->get_TextFrameForOverriding()->get_Paragraphs()->idx_get(0);
paragraph->get_Portions()->Add(portion);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_ShowSeriesName(false);
label->get_DataLabelFormat()->set_ShowPercentage(false);
label->get_DataLabelFormat()->set_ShowLegendKey(false);
label->get_DataLabelFormat()->set_ShowCategoryName(false);
label->get_DataLabelFormat()->set_ShowBubbleSize(false);
}
}
presentation->Save(u"DisplayPercentageAsLabels_out.pptx", SaveFormat::Pptx);
Đặt Ký Hiệu Phần Trăm cho Nhãn Dữ liệu Biểu đồ
Khi giá trị được lưu dưới dạng phân số, sử dụng set_NumberFormat để hiển thị phần trăm. Đặt false cho set_IsNumberFormatLinkedToSource để áp dụng định dạng nhãn một cách độc lập với các ô nguồn.
Ví dụ này tạo một biểu đồ cột chồng 100% với các chuỗi đỏ và xanh dương trên bốn danh mục. Mỗi cặp giá trị cộng lại bằng 1. Định dạng nhãn 0.0% hiển thị 0.30 thành 30.0%, trong khi trục dọc sử dụng hai chữ số thập phân. Cả hai chuỗi đều dùng văn bản nhãn màu trắng, 10 điểm.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/IColorFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::PercentsStackedColumn, 20, 20, 500, 400);
chart->get_Axes()->get_VerticalAxis()->set_IsNumberFormatLinkedToSource(false);
chart->get_Axes()->get_VerticalAxis()->set_NumberFormat(u"0.00%");
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto worksheetIndex = 0;
for (auto i = 0; i < 4; i++)
{
auto categoryCell = workbook->GetCell(worksheetIndex, i + 1, 0, ObjectExt::Box(String::Format(u"Category {0}", i + 1)));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
String seriesNames[] = { u"Reds", u"Blues" };
Color seriesColors[] = { Color::get_Red(), Color::get_Blue() };
double values[2][4] = { { 0.30, 0.50, 0.80, 0.65 }, { 0.70, 0.50, 0.20, 0.35 } };
for (auto i = 0; i < 2; i++)
{
auto seriesCell = workbook->GetCell(worksheetIndex, 0, i + 1, ObjectExt::Box(seriesNames[i]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, chart->get_Type());
for (auto j = 0; j < 4; j++)
{
auto valueCell = workbook->GetCell(worksheetIndex, j + 1, i + 1, ObjectExt::Box(values[i][j]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
series->get_Format()->get_Fill()->set_FillType(FillType::Solid);
series->get_Format()->get_Fill()->get_SolidFillColor()->set_Color(seriesColors[i]);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_IsNumberFormatLinkedToSource(false);
labelFormat->set_NumberFormat(u"0.0%");
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(10);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->set_FillType(FillType::Solid);
labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_White());
}
presentation->Save(u"SetDataLabelsPercentageSign_out.pptx", SaveFormat::Pptx);
Đọc Văn Bản Thực Sự của Nhãn Dữ liệu
Sử dụng GetActualLabelText để lấy văn bản mà cài đặt nhãn dữ liệu tạo ra. Điều này hữu ích khi trích xuất nhãn cho báo cáo, tìm kiếm nội dung bản trình chiếu hoặc xác thực các biểu đồ được tạo. Trong ví dụ dưới đây, định dạng nhãn dữ liệu mặc định kết hợp mỗi tên danh mục, tên chuỗi và giá trị. Một điểm định dạng giá trị dưới dạng phần trăm, và một điểm khác sử dụng văn bản tùy chỉnh từ get_TextFrameForOverriding.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IDoubleChartValue.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/ITextFrame.h>
#include <system/console.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategoryCell = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Q1"));
chart->get_ChartData()->get_Categories()->Add(firstCategoryCell);
auto secondCategoryCell = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Q2"));
chart->get_ChartData()->get_Categories()->Add(secondCategoryCell);
auto northSeriesCell = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"North"));
auto north = chart->get_ChartData()->get_Series()->Add(northSeriesCell, chart->get_Type());
auto northFirstValueCell = workbook->GetCell(0, 1, 1, ObjectExt::Box(0.25));
north->get_DataPoints()->AddDataPointForBarSeries(northFirstValueCell);
auto northSecondValueCell = workbook->GetCell(0, 2, 1, ObjectExt::Box(0.75));
north->get_DataPoints()->AddDataPointForBarSeries(northSecondValueCell);
auto southSeriesCell = workbook->GetCell(0, 0, 2, ObjectExt::Box<String>(u"South"));
auto south = chart->get_ChartData()->get_Series()->Add(southSeriesCell, chart->get_Type());
auto southFirstValueCell = workbook->GetCell(0, 1, 2, ObjectExt::Box(0.40));
south->get_DataPoints()->AddDataPointForBarSeries(southFirstValueCell);
auto southSecondValueCell = workbook->GetCell(0, 2, 2, ObjectExt::Box(0.60));
south->get_DataPoints()->AddDataPointForBarSeries(southSecondValueCell);
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
auto format = series->get_Labels()->get_DefaultDataLabelFormat();
format->set_ShowCategoryName(true);
format->set_ShowSeriesName(true);
format->set_ShowValue(true);
}
north->get_Label(1)->get_DataLabelFormat()->set_IsNumberFormatLinkedToSource(false);
north->get_Label(1)->get_DataLabelFormat()->set_NumberFormat(u"0%");
south->get_Label(0)->get_TextFrameForOverriding()->set_Text(u"Reviewed");
for (auto i = 0; i < chart->get_ChartData()->get_Series()->get_Count(); i++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(i);
for (auto j = 0; j < series->get_DataPoints()->get_Count(); j++)
{
auto point = series->get_DataPoint(j);
auto label = point->get_Label();
if (!label->get_IsVisible())
{
continue;
}
Console::WriteLine(String::Format(u"Value: {0}; label: {1}", point->get_Value()->get_Data(), label->GetActualLabelText()));
}
}
Số lưu trong điểm dữ liệu vẫn là 0.75, ngay cả khi nhãn của nó hiển thị 75% cùng với tên danh mục và chuỗi. Văn bản tùy chỉnh thay thế nhãn được tạo. GetActualLabelText trả về chuỗi nhãn kết quả trong cả hai trường hợp. Kiểm tra get_IsVisible riêng biệt, như đã minh họa ở trên, khi bạn muốn trích xuất chỉ các nhãn hiển thị.
Điều Khiển Nhãn Dữ liệu Vượt Quá Giá Trị Tối Đa của Trục
Khi bạn giới hạn phạm vi trục thủ công, một số điểm dữ liệu có thể vượt quá giá trị tối đa. Sử dụng set_ShowDataLabelsOverMaximum để kiểm soát việc hiển thị nhãn dữ liệu của chúng. Cài đặt này thay đổi khả năng hiển thị nhãn; nó không thay đổi phạm vi trục hay giá trị dữ liệu gốc.
Ví dụ dưới tạo một biểu đồ cột cụm 2D với giá trị 60 và 120. Nó đặt set_IsAutomaticMaxValue thành false và set_MaxValue thành 100 trên trục dọc. Bản trình chiếu đầu tiên cho phép hiển thị nhãn vượt quá tối đa; một bản sao của bản trình chiếu đó tắt tính năng này. Cả hai bản đều được lưu trong DataLabelsOverMaximum.pptx.
Bật nhãn giá trị với set_ShowValue. Cài đặt ở mức biểu đồ không tự động bật hiển thị giá trị hoặc ghi đè việc tắt hiển thị giá trị của một nhãn cá nhân. Ví dụ này bật giá trị cho toàn bộ chuỗi và sử dụng set_Position để đặt nhãn ở cuối ngoài của mỗi cột.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/ISlideCollection.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 50, 50, 600, 400);
chart->set_HasLegend(false);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
auto firstCategory = workbook->GetCell(0, 1, 0, ObjectExt::Box<String>(u"Within range"));
auto secondCategory = workbook->GetCell(0, 2, 0, ObjectExt::Box<String>(u"Above maximum"));
chart->get_ChartData()->get_Categories()->Add(firstCategory);
chart->get_ChartData()->get_Categories()->Add(secondCategory);
auto seriesName = workbook->GetCell(0, 0, 1, ObjectExt::Box<String>(u"Values"));
auto series = chart->get_ChartData()->get_Series()->Add(seriesName, chart->get_Type());
auto firstValue = workbook->GetCell(0, 1, 1, ObjectExt::Box(60));
auto secondValue = workbook->GetCell(0, 2, 1, ObjectExt::Box(120));
series->get_DataPoints()->AddDataPointForBarSeries(firstValue);
series->get_DataPoints()->AddDataPointForBarSeries(secondValue);
series->get_Labels()->get_DefaultDataLabelFormat()->set_ShowValue(true);
series->get_Labels()->get_DefaultDataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMaxValue(false);
chart->get_Axes()->get_VerticalAxis()->set_MaxValue(100);
chart->set_ShowDataLabelsOverMaximum(true);
auto secondSlide = presentation->get_Slides()->AddClone(slide);
auto secondChart = ExplicitCast<IChart>(secondSlide->get_Shape(0));
secondChart->set_ShowDataLabelsOverMaximum(false);
presentation->Save(u"DataLabelsOverMaximum.pptx", SaveFormat::Pptx);
Các hình ảnh sau hiển thị các slide đã lưu được render bởi Microsoft PowerPoint. Với true, nhãn 120 hiển thị ở đường biên trên; với false, nó bị ẩn. Nhãn 60 vẫn hiển thị, giá trị tối đa của trục vẫn 100, và điểm dữ liệu thứ hai vẫn 120 trong cả hai trường hợp.
| ShowDataLabelsOverMaximum = true | ShowDataLabelsOverMaximum = false |
|---|---|
![]() |
![]() |
Chart Type
Ví dụ này sử dụng biểu đồ cột 2D có trục giá trị. Các biểu đồ không có trục giá trị, chẳng hạn như biểu đồ tròn và bánh donut, không có giá trị tối đa của trục để giới hạn theo cách này.Đặt Khoảng Cách Nhãn Từ Trục
Sử dụng set_LabelOffset để kiểm soát khoảng cách giữa nhãn trục danh mục và trục. Giá trị là phần trăm của kích thước phông chữ tối đa của các nhãn trục. Ví dụ này tạo một biểu đồ cột cụm và đặt độ lệch nhãn trục ngang thành 500. Cài đặt này ảnh hưởng đến nhãn trục danh mục thay vì các nhãn gắn vào điểm dữ liệu riêng lẻ.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
chart->get_Axes()->get_HorizontalAxis()->set_LabelOffset(500);
presentation->Save(u"SetCategoryAxisLabelDistance_out.pptx", SaveFormat::Pptx);
Điều Chỉnh Vị Trí Nhãn

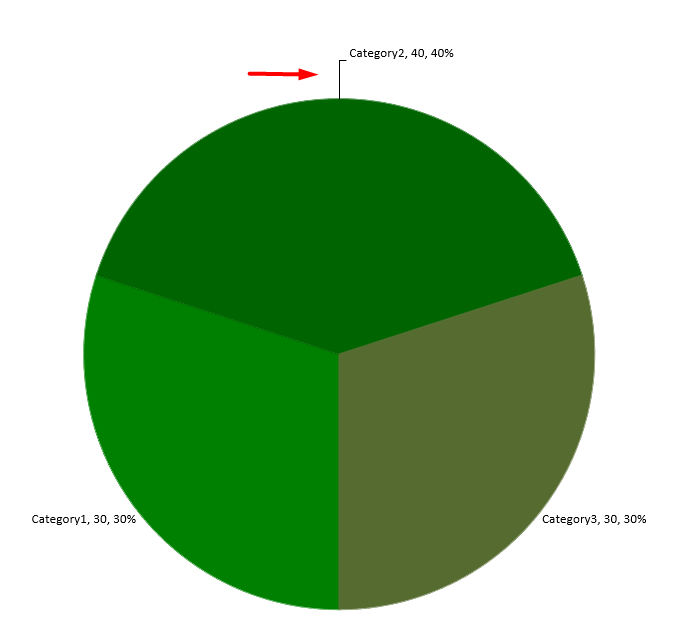

Trên biểu đồ tròn, điều chỉnh vị trí nhãn dữ liệu để cải thiện khoảng cách và tạo chỗ cho các đường nối.
Ví dụ này hiển thị giá trị của điểm dữ liệu đầu tiên, đặt nhãn ngoài phần bánh và sử dụng set_X và set_Y để điều chỉnh độ lệch. Các độ lệch này tương đối với chiều rộng và chiều cao của biểu đồ tương ứng.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <Export/SaveFormat.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 50, 50, 200, 200);
auto series = chart->get_ChartData()->get_Series();
auto label = series->idx_get(0)->get_Label(0);
label->get_DataLabelFormat()->set_ShowValue(true);
label->get_DataLabelFormat()->set_Position(LegendDataLabelPosition::OutsideEnd);
label->set_X(0.71f);
label->set_Y(0.04f);
presentation->Save(u"presentation.pptx", SaveFormat::Pptx);

Định Dạng Đường Nối
Khi nhãn biểu đồ tròn nằm ngoài các phần bánh, các đường nối giúp người đọc liên kết mỗi giá trị với phần bánh tương ứng. Màu sắc tương phản và độ dày hơi lớn hơn có thể làm cho các kết nối này dễ theo dõi hơn, trong khi độ trong suốt và kiểu gạch đứt giữ cho các đường không gây mất tập trung.
Sử dụng get_LeaderLinesFormat để định dạng đường nối ở cấp độ bộ sưu tập nhãn dữ liệu của chuỗi. Các cài đặt trong series->get_Labels()->get_LeaderLinesFormat()->get_Line() áp dụng cho toàn bộ bộ sưu tập, không phải cho từng nhãn riêng lẻ.
Ví dụ này tạo một biểu đồ tròn với dữ liệu mặc định, hiển thị giá trị ngoài các phần bánh và bật đường nối với set_ShowLeaderLines. Nó di chuyển hai nhãn ra xa hơn phần bánh bằng các độ lệch set_X và set_Y, được biểu diễn dưới dạng phần của chiều rộng và chiều cao biểu đồ. Không cần bản trình chiếu đầu vào.
Định dạng nền trả về bởi get_FillFormat được dùng để đặt màu xanh đậm đặc với giá trị alpha 191 trong số 255, tương đương khoảng 25 % trong suốt. set_Width đặt độ dày thành 2 điểm, và set_DashStyle làm cho đường nét gạch đứt.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IChartLinesFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/ILineFormat.h>
#include <DOM/ILineFillFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/FillType.h>
#include <DOM/LineDashStyle.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::Pie, 80, 50, 560, 400);
chart->set_HasLegend(false);
auto series = chart->get_ChartData()->get_Series()->idx_get(0);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->set_Position(LegendDataLabelPosition::OutsideEnd);
labelFormat->set_ShowLeaderLines(true);
// Di chuyển hai nhãn ra xa hơn các phần bánh.
series->get_Label(0)->set_X(0.10f);
series->get_Label(0)->set_Y(-0.05f);
series->get_Label(1)->set_X(-0.10f);
series->get_Label(1)->set_Y(0.05f);
auto line = series->get_Labels()->get_LeaderLinesFormat()->get_Line();
line->get_FillFormat()->set_FillType(FillType::Solid);
line->get_FillFormat()->get_SolidFillColor()->set_Color(Color::FromArgb(191, 30, 90, 160));
line->set_Width(2);
line->set_DashStyle(LineDashStyle::Dash);
presentation->Save(u"FormattedLeaderLines.pptx", SaveFormat::Pptx);
Bật đường nối không có nghĩa là sẽ luôn có đường cho mọi nhãn. Khả năng hiển thị phụ thuộc vào vị trí nhãn và hành vi bố trí của biểu đồ. Trong ví dụ này, hai nhãn bị dịch sang ngoài có đường nối hiển thị; các nhãn còn gần phần bánh không cần chúng.

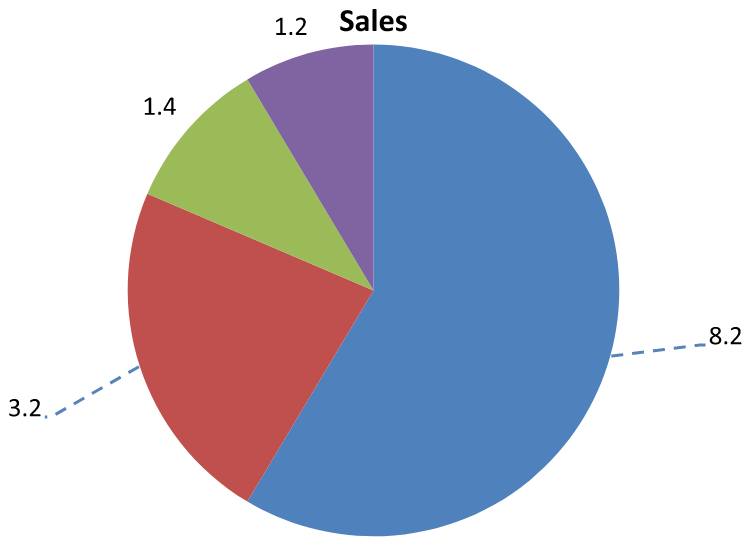

Hình ảnh sau hiển thị file FormattedLeaderLines.pptx đã được render bằng Aspose.Slides:

Thêm Nhiều Hàng Nhãn Dữ liệu ở Trên Biểu Đồ Cột
Ví dụ này tạo một biểu đồ cột với hai hàng nhãn dữ liệu ở trên khu vực vẽ. Chuỗi A hiển thị các cột có thể nhìn thấy, trong khi Chuỗi B và Chuỗi C cung cấp các nhãn bổ sung. Các cột của chúng bị ẩn bằng cách loại bỏ nền và viền. Phương thức set_Overlap căn chỉnh ba chuỗi sao cho chúng có chung trung tâm danh mục.
Cài đặt get_PlotArea dành không gian cho các hàng nhãn. Sau khi ValidateChartLayout tính toán vị trí mặc định, các phương thức set_X và set_Y giữ nguyên căn chỉnh ngang và áp dụng độ lệch dọc để sắp xếp nhãn thành hai hàng. Các số vẫn là nhãn dữ liệu liên kết với các giá trị chuỗi; chỉ tiêu đề hàng là các hình dạng văn bản riêng biệt.
#include <DOM/Presentation.h>
#include <DOM/ISlide.h>
#include <DOM/IShapeCollection.h>
#include <DOM/IChart.h>
#include <DOM/Chart/ChartType.h>
#include <DOM/Chart/IChartData.h>
#include <DOM/Chart/IChartCategoryCollection.h>
#include <DOM/Chart/IChartDataWorkbook.h>
#include <DOM/Chart/IChartDataCell.h>
#include <DOM/Chart/IChartSeriesCollection.h>
#include <DOM/Chart/IChartSeries.h>
#include <DOM/Chart/IChartDataPointCollection.h>
#include <DOM/Chart/IChartDataPoint.h>
#include <DOM/Chart/IChartSeriesGroup.h>
#include <DOM/Chart/IFormat.h>
#include <DOM/Chart/IDataLabelCollection.h>
#include <DOM/Chart/IDataLabelFormat.h>
#include <DOM/Chart/IDataLabel.h>
#include <DOM/Chart/IChartTextFormat.h>
#include <DOM/Chart/IChartPortionFormat.h>
#include <DOM/Chart/LegendDataLabelPosition.h>
#include <DOM/Chart/IAxesManager.h>
#include <DOM/Chart/IAxis.h>
#include <DOM/Chart/IChartPlotArea.h>
#include <DOM/Chart/LayoutTargetType.h>
#include <DOM/FillType.h>
#include <DOM/IFillFormat.h>
#include <DOM/ILineFormat.h>
#include <DOM/IColorFormat.h>
#include <DOM/ShapeType.h>
#include <DOM/IAutoShape.h>
#include <DOM/ITextFrame.h>
#include <DOM/ITextFrameFormat.h>
#include <DOM/IParagraphCollection.h>
#include <DOM/IParagraph.h>
#include <DOM/IPortionCollection.h>
#include <DOM/IPortion.h>
#include <DOM/IPortionFormat.h>
#include <Export/SaveFormat.h>
#include <drawing/color.h>
#include <system/object_ext.h>
#include <system/smart_ptr.h>
#include <system/string.h>
using namespace Aspose::Slides;
using namespace Aspose::Slides::Charts;
using namespace Aspose::Slides::Export;
using namespace System;
using namespace System::Drawing;
auto presentation = MakeObject<Presentation>();
auto slide = presentation->get_Slide(0);
auto chart = slide->get_Shapes()->AddChart(ChartType::ClusteredColumn, 40, 40, 640, 200);
chart->set_HasTitle(false);
chart->set_HasLegend(false);
chart->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
chart->get_ChartData()->get_Series()->Clear();
chart->get_ChartData()->get_Categories()->Clear();
auto workbook = chart->get_ChartData()->get_ChartDataWorkbook();
workbook->Clear(0);
String categories[] = { u"North", u"South", u"East", u"West" };
String seriesNames[] = { u"Series A", u"Series B", u"Series C" };
double seriesValues[3][4] = {
{ 35, 42, 28, 47 },
{ 22, 31, 19, 26 },
{ 12, 16, 14, 18 }
};
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto categoryCell = workbook->GetCell(0, categoryIndex + 1, 0, ObjectExt::Box(categories[categoryIndex]));
chart->get_ChartData()->get_Categories()->Add(categoryCell);
}
for (auto seriesIndex = 0; seriesIndex < 3; seriesIndex++)
{
auto seriesCell = workbook->GetCell(0, 0, seriesIndex + 1, ObjectExt::Box(seriesNames[seriesIndex]));
auto series = chart->get_ChartData()->get_Series()->Add(seriesCell, ChartType::ClusteredColumn);
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto valueCell = workbook->GetCell(0, categoryIndex + 1, seriesIndex + 1, ObjectExt::Box(seriesValues[seriesIndex][categoryIndex]));
series->get_DataPoints()->AddDataPointForBarSeries(valueCell);
}
if (seriesIndex > 0)
{
// Ẩn các cột của B và C, nhưng giữ lại nhãn dữ liệu của chúng.
series->get_Format()->get_Fill()->set_FillType(FillType::NoFill);
series->get_Format()->get_Line()->get_FillFormat()->set_FillType(FillType::NoFill);
auto labelFormat = series->get_Labels()->get_DefaultDataLabelFormat();
labelFormat->set_ShowValue(true);
labelFormat->get_TextFormat()->get_PortionFormat()->set_FontHeight(12);
auto labelFill = labelFormat->get_TextFormat()->get_PortionFormat()->get_FillFormat();
labelFill->set_FillType(FillType::Solid);
labelFill->get_SolidFillColor()->set_Color(Color::get_Black());
labelFormat->set_Position(LegendDataLabelPosition::InsideBase);
}
}
// Căn tất cả ba chuỗi với cùng trung tâm danh mục.
chart->get_ChartData()->get_Series()->idx_get(0)->get_ParentSeriesGroup()->set_Overlap(100);
// Sử dụng ít đường chia hơn cho ví dụ gọn này.
chart->get_Axes()->get_VerticalAxis()->set_IsAutomaticMajorUnit(false);
chart->get_Axes()->get_VerticalAxis()->set_MajorUnit(10);
// Dành không gian trên biểu đồ cho hai hàng nhãn dữ liệu.
chart->get_PlotArea()->set_LayoutTargetType(LayoutTargetType::Inner);
chart->get_PlotArea()->set_X(0.15f);
chart->get_PlotArea()->set_Y(0.32f);
chart->get_PlotArea()->set_Width(0.80f);
chart->get_PlotArea()->set_Height(0.48f);
chart->ValidateChartLayout();
for (auto seriesIndex = 1; seriesIndex < 3; seriesIndex++)
{
auto series = chart->get_ChartData()->get_Series()->idx_get(seriesIndex);
auto rowTop = seriesIndex == 1 ? 0.15f : 0.03f;
for (auto categoryIndex = 0; categoryIndex < 4; categoryIndex++)
{
auto dataLabel = series->get_DataPoint(categoryIndex)->get_Label();
// Giữ vị trí ngang mặc định. Y là độ lệch từ
// vị trí nhãn mặc định, biểu diễn dưới dạng phần của chiều cao biểu đồ.
dataLabel->set_X(0);
dataLabel->set_Y(rowTop - dataLabel->get_ActualY() / chart->get_Height());
}
// Chỉ tiêu đề hàng là một hình dạng văn bản riêng biệt.
auto rowHeading = slide->get_Shapes()->AddAutoShape(ShapeType::Rectangle, chart->get_X(), chart->get_Y() + rowTop * chart->get_Height(), 85, 18);
rowHeading->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->get_LineFormat()->get_FillFormat()->set_FillType(FillType::NoFill);
rowHeading->AddTextFrame(seriesNames[seriesIndex]);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginTop(0);
rowHeading->get_TextFrame()->get_TextFrameFormat()->set_MarginBottom(0);
auto headingFormat = rowHeading->get_TextFrame()->get_Paragraphs()->idx_get(0)->get_Portions()->idx_get(0)->get_PortionFormat();
headingFormat->set_FontHeight(12);
headingFormat->get_FillFormat()->set_FillType(FillType::Solid);
headingFormat->get_FillFormat()->get_SolidFillColor()->set_Color(Color::get_Black());
}
presentation->Save(u"multiple-rows-of-labels.pptx", SaveFormat::Pptx);

Câu Hỏi Thường Gặp
Làm sao tôi có thể ngăn nhãn dữ liệu chồng lên nhau trên các biểu đồ dày đặc?
Kết hợp việc đặt nhãn tự động, đường nối và giảm kích thước phông chữ; nếu cần, ẩn một số trường (ví dụ, danh mục) hoặc chỉ hiển thị nhãn cho các giá trị cực đoan hoặc điểm quan trọng.
Làm sao tôi có thể tắt nhãn chỉ cho các giá trị zero, âm hoặc trống?
Lọc các điểm dữ liệu trước khi bật nhãn và tắt hiển thị cho các giá trị bằng 0, giá trị âm hoặc giá trị thiếu theo quy tắc đã định.
Làm sao tôi đảm bảo phong cách nhãn nhất quán khi xuất ra PDF/hình ảnh?
Thiết lập rõ ràng họ phông chữ và kích thước, đồng thời xác minh phông chữ có sẵn trong môi trường render để tránh việc thay thế.
