Gerenciar Listas com Marcadores e Numeradas em Apresentações Usando Python via Java

Visão geral

Aspose.Slides for Python via Java permite criar e formatar listas com marcadores e numeradas em apresentações PowerPoint e OpenDocument. Um item de lista é um parágrafo cujas configurações de marcador são controladas por meio do seu formato de parágrafo.

Use o método Paragraph.getParagraphFormat para acessar as configurações de lista ao nível do parágrafo. O ponto de entrada principal é ParagraphFormat.getBullet, que retorna um objeto BulletFormat. Com esse objeto, você pode definir o tipo de marcador, símbolo, imagem, cor, tamanho, estilo de numeração e número inicial.

Este artigo mostra como:

  • criar uma lista com marcadores usando um símbolo personalizado
  • criar um marcador de imagem
  • criar uma lista multinível definindo a profundidade do parágrafo
  • criar uma lista numerada
  • inspecionar e alterar a formatação de lista em uma apresentação existente
  • ler os marcadores de lista reais e os números ao lado do texto do parágrafo

Criar uma lista com marcadores

Para criar uma lista com marcadores, adicione objetos Paragraph a um TextFrame e defina BulletFormat.setType como BulletType.Symbol. Em seguida, use BulletFormat.setChar, BulletFormat.getColor e BulletFormat.setHeight para controlar a aparência do marcador.

O código Python a seguir demonstra como criar uma lista com marcadores em um slide:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BulletType, NullableBool, Paragraph, Presentation, SaveFormat, ShapeType
from java.awt import Color

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 200, 50)

    text_frame = auto_shape.getTextFrame()
    text_frame.getParagraphs().clear()

    bullet_color = Color(205, 92, 92)

    first_paragraph = Paragraph()
    first_paragraph.getParagraphFormat().getBullet().setType(BulletType.Symbol)
    first_paragraph.getParagraphFormat().getBullet().setChar('*')
    first_paragraph.getParagraphFormat().setIndent(15)
    first_paragraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True_)
    first_paragraph.getParagraphFormat().getBullet().getColor().setColor(bullet_color)
    first_paragraph.getParagraphFormat().getBullet().setHeight(100)
    first_paragraph.setText("The first paragraph")
    text_frame.getParagraphs().add(first_paragraph)

    second_paragraph = Paragraph()
    second_paragraph.getParagraphFormat().getBullet().setType(BulletType.Symbol)
    second_paragraph.getParagraphFormat().getBullet().setChar('*')
    second_paragraph.getParagraphFormat().setIndent(15)
    second_paragraph.getParagraphFormat().getBullet().setBulletHardColor(NullableBool.True_)
    second_paragraph.getParagraphFormat().getBullet().getColor().setColor(bullet_color)
    second_paragraph.getParagraphFormat().getBullet().setHeight(100)
    second_paragraph.setText("The second paragraph")
    text_frame.getParagraphs().add(second_paragraph)

    presentation.save("symbol_bullets.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

Resultado:

Os marcadores de símbolo

Criar uma lista numerada

Use listas numeradas quando a ordem dos itens for importante. Defina BulletFormat.setType como BulletType.Numbered. Você também pode escolher um formato de numeração com BulletFormat.setNumberedBulletStyle ou usar BulletFormat.setNumberedBulletStartWith quando a lista deve iniciar em um valor diferente de 1.

O código Python a seguir mostra como criar uma lista numerada em um slide:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BulletType, Paragraph, Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 90, 80)

    text_frame = auto_shape.getTextFrame()
    text_frame.getParagraphs().clear()

    first_paragraph = Paragraph()
    first_paragraph.getParagraphFormat().getBullet().setType(BulletType.Numbered)
    first_paragraph.setText("Apple")
    text_frame.getParagraphs().add(first_paragraph)

    second_paragraph = Paragraph()
    second_paragraph.getParagraphFormat().getBullet().setType(BulletType.Numbered)
    second_paragraph.setText("Orange")
    text_frame.getParagraphs().add(second_paragraph)

    third_paragraph = Paragraph()
    third_paragraph.getParagraphFormat().getBullet().setType(BulletType.Numbered)
    third_paragraph.setText("Banana")
    text_frame.getParagraphs().add(third_paragraph)

    presentation.save("numbered_bullets.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

Resultado:

Os marcadores numerados

Criar um marcador de imagem

Aspose.Slides permite substituir um símbolo de marcador regular por uma imagem. Marcadores de imagem funcionam melhor com imagens simples que permanecem legíveis em tamanho pequeno, como ícones ou pequenos arquivos PNG transparentes.

Para criar um marcador de imagem, adicione uma imagem a Presentation.getImages e atribua o objeto de imagem retornado a BulletFormat.getPicture. Defina BulletFormat.setType como BulletType.Picture antes de atribuir a imagem.

Suponha que tenhamos uma imagem chamada “image.png”:

Uma imagem para os marcadores

O código Python a seguir mostra como criar marcadores de imagem em um slide:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BulletType, Images, Paragraph, Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 200, 50)

    text_frame = auto_shape.getTextFrame()
    text_frame.getParagraphs().clear()

    image = Images.fromFile("image.png")
    try:
        bullet_image = presentation.getImages().addImage(image)
    finally:
        image.dispose()

    first_paragraph = Paragraph()
    first_paragraph.getParagraphFormat().getBullet().setType(BulletType.Picture)
    first_paragraph.getParagraphFormat().getBullet().getPicture().setImage(bullet_image)
    first_paragraph.getParagraphFormat().setIndent(15)
    first_paragraph.getParagraphFormat().getBullet().setHeight(100)
    first_paragraph.setText("The first paragraph")
    text_frame.getParagraphs().add(first_paragraph)

    second_paragraph = Paragraph()
    second_paragraph.getParagraphFormat().getBullet().setType(BulletType.Picture)
    second_paragraph.getParagraphFormat().getBullet().getPicture().setImage(bullet_image)
    second_paragraph.getParagraphFormat().setIndent(15)
    second_paragraph.getParagraphFormat().getBullet().setHeight(100)
    second_paragraph.setText("The second paragraph")
    text_frame.getParagraphs().add(second_paragraph)

    presentation.save("picture_bullets.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

Resultado:

Os marcadores de imagem

Criar uma lista multinível

Use ParagraphFormat.setDepth para posicionar itens de lista em diferentes níveis. O nível 0 é o nível superior, o nível 1 está aninhado abaixo dele e assim por diante.

O código Python a seguir mostra como criar uma lista com marcadores multinível:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import Paragraph, Presentation, SaveFormat, ShapeType

presentation = Presentation()
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 20, 20, 260, 110)

    text_frame = auto_shape.getTextFrame()
    text_frame.getParagraphs().clear()

    first_paragraph = Paragraph()
    first_paragraph.getParagraphFormat().setDepth(0)
    first_paragraph.setText("My text - Depth 0")
    text_frame.getParagraphs().add(first_paragraph)

    second_paragraph = Paragraph()
    second_paragraph.getParagraphFormat().setDepth(1)
    second_paragraph.setText("My text - Depth 1")
    text_frame.getParagraphs().add(second_paragraph)

    third_paragraph = Paragraph()
    third_paragraph.getParagraphFormat().setDepth(2)
    third_paragraph.setText("My text - Depth 2")
    text_frame.getParagraphs().add(third_paragraph)

    fourth_paragraph = Paragraph()
    fourth_paragraph.getParagraphFormat().setDepth(3)
    fourth_paragraph.setText("My text - Depth 3")
    text_frame.getParagraphs().add(fourth_paragraph)

    presentation.save("multilevel_bullets.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

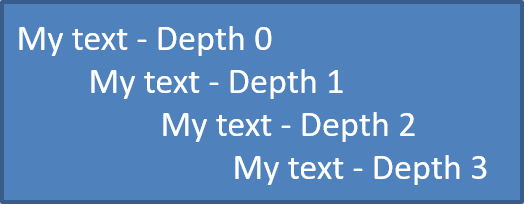

Resultado:

A lista multinível

Alterar uma lista existente

Para alterar a formatação de lista em uma apresentação existente, acesse o parágrafo de destino e atualize suas configurações de ParagraphFormat.getBullet. As mesmas propriedades usadas para criar listas podem ser usadas para inspecionar ou modificar listas carregadas de um arquivo PPT, PPTX ou ODP.

O código Python a seguir altera o primeiro parágrafo em um quadro de texto para usar um estilo de lista numerada:

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BulletType, NumberedBulletStyle, Presentation, SaveFormat

presentation = Presentation("input.pptx")
try:
    slide = presentation.getSlides().get_Item(0)

    auto_shape = slide.getShapes().get_Item(0)

    paragraph = auto_shape.getTextFrame().getParagraphs().get_Item(0)
    paragraph.getParagraphFormat().getBullet().setType(BulletType.Numbered)
    paragraph.getParagraphFormat().getBullet().setNumberedBulletStyle(NumberedBulletStyle.BulletRomanUCPeriod)
    paragraph.getParagraphFormat().getBullet().setNumberedBulletStartWith(1)
    paragraph.getParagraphFormat().setMarginLeft(30)
    paragraph.getParagraphFormat().setIndent(-20)

    presentation.save("updated_list.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

Ler valores reais de marcadores

Ao extrair conteúdo da apresentação, mantenha os marcadores de lista ao lado do texto do parágrafo. Chame ParagraphFormat.getEffective e acesse getBullet para obter o formato de marcador efetivo. Verifique seu getType antes de ler getActualBulletValue.

Para listas numeradas, diferencie estes três valores:

  • getNumberedBulletStyle determina o formato, como números arábicos seguidos de ponto ou letras minúsculas seguidas de ponto.
  • getNumberedBulletStartWith especifica o número inicial para um grupo de parágrafos numerados.
  • getActualBulletValue devolve o marcador formatado para um parágrafo específico. Por exemplo, o segundo item em uma lista que começa em 5 retorna 6..

Preserve getDepth com cada parágrafo para reter seu nível de aninhamento. O marcador real não codifica a hierarquia completa: um item aninhado pode retornar c. em vez de um rótulo combinado como 6.c..

O exemplo autônomo a seguir cria listas, salva‑as em uma apresentação e recarrega a apresentação para relatar o texto, a profundidade, o tipo de marcador e o valor real de cada parágrafo. O pequeno marcador de imagem azul é criado a partir de SVG embutido.

import jpype
import asposeslides

if not jpype.isJVMStarted():
    jpype.startJVM()

from asposeslides.api import BulletType, FillType, NullableBool, NumberedBulletStyle, Paragraph, Presentation, SaveFormat, ShapeType, SlideSizeScaleType, SvgImage
from java.awt import Color

presentation = Presentation()
try:
    presentation.getSlideSize().setSize(720, 440, SlideSizeScaleType.DoNotScale)
    slide = presentation.getSlides().get_Item(0)

    shape = slide.getShapes().addAutoShape(ShapeType.Rectangle, 30, 20, 660, 400)
    shape.getFillFormat().setFillType(FillType.NoFill)
    shape.getLineFormat().getFillFormat().setFillType(FillType.NoFill)

    text_frame = shape.getTextFrame()
    text_frame.getParagraphs().clear()

    # Criar um marcador de imagem sem um arquivo de imagem externo.
    svg = SvgImage("<svg xmlns='http://www.w3.org/2000/svg' width='16' height='16'><rect width='16' height='16' rx='4' fill='#0078D4'/></svg>")
    bullet_image = presentation.getImages().addImage(svg)

    def add_paragraph(text, depth, bullet_type, start, style):
        paragraph = Paragraph()
        paragraph.setText(text)

        paragraph_format = paragraph.getParagraphFormat()
        paragraph_format.setDepth(depth)
        paragraph_format.setMarginLeft(30 + depth * 40)
        paragraph_format.setIndent(-28)
        paragraph_format.setSpaceAfter(8)
        paragraph_format.getDefaultPortionFormat().setFontHeight(22)
        paragraph_format.getDefaultPortionFormat().getFillFormat().setFillType(FillType.Solid)
        paragraph_format.getDefaultPortionFormat().getFillFormat().getSolidFillColor().setColor(Color.BLACK)
        paragraph_format.getBullet().setType(bullet_type)
        paragraph_format.getBullet().setBulletHardColor(NullableBool.True_)
        paragraph_format.getBullet().getColor().setColor(Color.BLACK)
        if bullet_type == BulletType.Numbered:
            paragraph_format.getBullet().setNumberedBulletStyle(style)
            paragraph_format.getBullet().setNumberedBulletStartWith(start)
        elif bullet_type == BulletType.Symbol:
            paragraph_format.getBullet().setChar('\u2022')
        elif bullet_type == BulletType.Picture:
            paragraph_format.getBullet().getPicture().setImage(bullet_image)

        text_frame.getParagraphs().add(paragraph)

    add_paragraph("First item", 0, BulletType.Numbered, 5, NumberedBulletStyle.BulletArabicPeriod)
    add_paragraph("Second item", 0, BulletType.Numbered, 5, NumberedBulletStyle.BulletArabicPeriod)
    add_paragraph("Nested item", 1, BulletType.Numbered, 3, NumberedBulletStyle.BulletAlphaLCPeriod)
    add_paragraph("Next nested item", 1, BulletType.Numbered, 3, NumberedBulletStyle.BulletAlphaLCPeriod)
    add_paragraph("Deep item", 2, BulletType.Numbered, 4, NumberedBulletStyle.BulletRomanLCPeriod)
    add_paragraph("Back to top level", 0, BulletType.Numbered, 5, NumberedBulletStyle.BulletArabicPeriod)
    add_paragraph("Symbol marker", 0, BulletType.Symbol, 1, NumberedBulletStyle.BulletArabicPeriod)
    add_paragraph("No bullet", 0, BulletType.None_, 1, NumberedBulletStyle.BulletArabicPeriod)
    add_paragraph("Picture marker", 0, BulletType.Picture, 1, NumberedBulletStyle.BulletArabicPeriod)
    presentation.save("actual_bullet_values.pptx", SaveFormat.Pptx)
finally:
    presentation.dispose()

loaded_presentation = Presentation("actual_bullet_values.pptx")
try:
    loaded_shape = loaded_presentation.getSlides().get_Item(0).getShapes().get_Item(0)
    type_names = {
        BulletType.Numbered: "Numbered",
        BulletType.Symbol: "Symbol",
        BulletType.None_: "None",
        BulletType.Picture: "Picture",
    }
    print("Text | Depth | Type | Actual value")
    for paragraph in loaded_shape.getTextFrame().getParagraphs():
        bullet = paragraph.getParagraphFormat().getEffective().getBullet()
        bullet_type = bullet.getType()
        if bullet_type in (BulletType.Numbered, BulletType.Symbol):
            marker = bullet.getActualBulletValue()
        elif bullet_type == BulletType.None_:
            marker = f"{bullet.getActualBulletValue()} (no bullet)"
        elif bullet_type == BulletType.Picture:
            marker = f"{bullet.getActualBulletValue()} (image required)"
        else:
            marker = "unsupported bullet type"
        type_name = type_names.get(bullet_type, "Unknown")
        print(f"{paragraph.getText()} | {paragraph.getParagraphFormat().getDepth()} | {type_name} | {marker}")
finally:
    loaded_presentation.dispose()

As listas de origem são mostradas abaixo.

Listas começando em 5, itens aninhados com letra e numeral romano, um marcador de símbolo, um parágrafo sem marcador e um marcador de imagem azul

O relatório corresponde aos marcadores exibidos no PowerPoint:

Text | Depth | Type | Actual value
First item | 0 | Numbered | 5.
Second item | 0 | Numbered | 6.
Nested item | 1 | Numbered | c.
Next nested item | 1 | Numbered | d.
Deep item | 2 | Numbered | iv.
Back to top level | 0 | Numbered | 7.
Symbol marker | 0 | Symbol | •
No bullet | 0 | None | None (no bullet)
Picture marker | 0 | Picture | None (image required)

Para BulletType.None_ and BulletType.Picture, getActualBulletValue devolve None (Java null), não uma string vazia. Trate esses tipos separadamente: o primeiro não possui marcador, enquanto o último requer a extração da imagem do marcador separadamente. Um marcador de imagem não pode ser reproduzido apenas extraindo um marcador de texto.

Perguntas frequentes

É possível exportar listas com marcadores e numeradas para PDF ou imagens?

Sim. Aspose.Slides preserva a formatação de lista quando o formato de destino oferece suporte ao layout de texto e aos recursos de marcador correspondentes.

Posso editar listas em apresentações existentes?

Sim. Carregue a apresentação, acesse o parágrafo de destino, inspecione ou atualize suas configurações de ParagraphFormat.getBullet e salve a apresentação.

Listas podem conter texto não latino?

Sim. O texto dos itens de lista pode conter caracteres Unicode, de modo que você pode criar listas em apresentações multilíngues. Certifique‑se de que as fontes usadas na apresentação suportem os caracteres necessários.
